80. Exhaust Manifold Installation

Notice: Refer to Fastener Notice in Service Precautions.

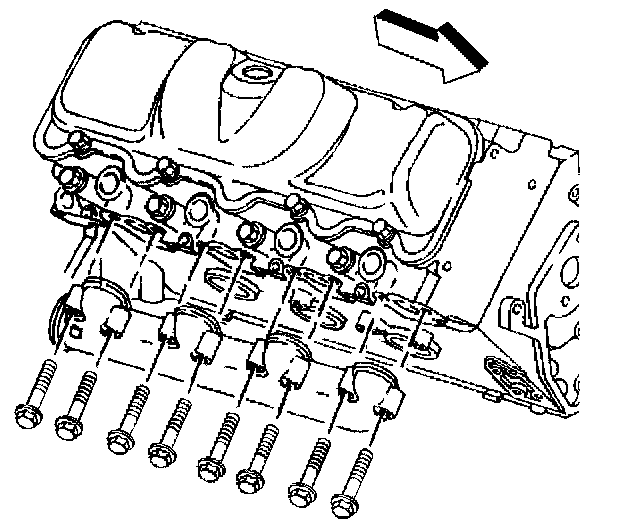

1. Install the left exhaust manifold and the bolts.
^ Tighten the bolts to 35 Nm (26 ft. lbs.).

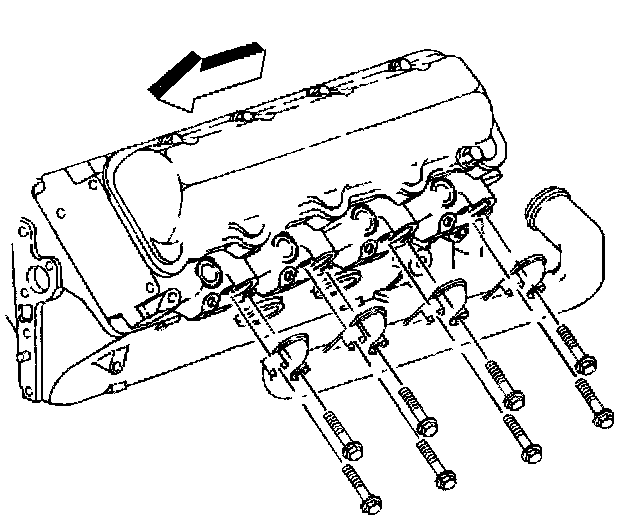

2. Install the right exhaust manifold and the bolts.
^ Tighten the bolts to 35 Nm (26 ft. lbs.).
