82. Turbocharger Installation

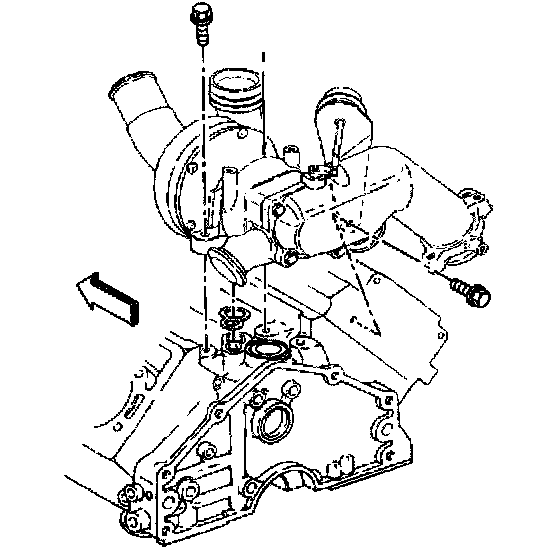

1. Install the seal onto the engine block.
2. Install the turbocharger.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the turbocharger mounting bolts.
^ Tighten the turbocharger mounting bolts to 65 Nm (48 ft. lbs.).





4. Install the wastegate actuator bracket mounting bolts.
^ Tighten the wastegate actuator bracket mounting bolts to 65 Nm (48 ft. lbs.).

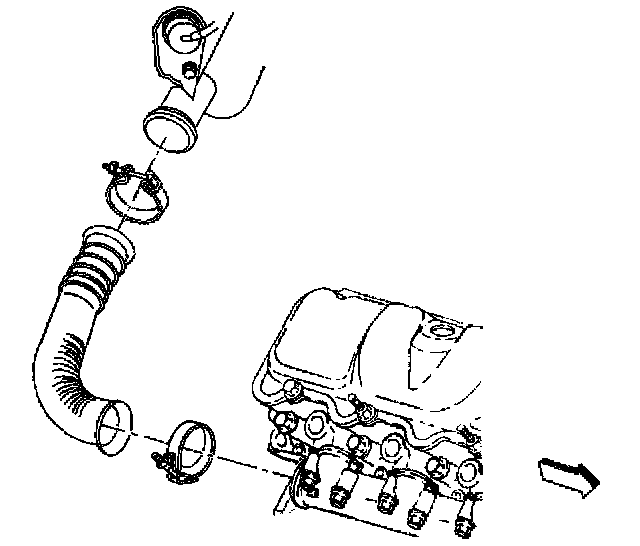

Important: In order to ensure heat shield clearance, locate the exhaust pipe clamps as shown.

5. Slide the exhaust clamps over the exhaust manifold and turbocharger.





6. Install the right hand side exhaust pipe.

Important: Tighten the clamps at the exhaust manifold end first.

7. Place the clamps in the correct position.
^ Tighten the clamps to 10 Nm (90 inch lbs.).





8. Install the left hand side exhaust pipe.

Important: Tighten the clamps at the exhaust manifold end first.

9. Place the clamps in the correct position.
^ Tighten the clamps to 10 Nm (90 inch lbs.).
