Engine Noise Diagnosis

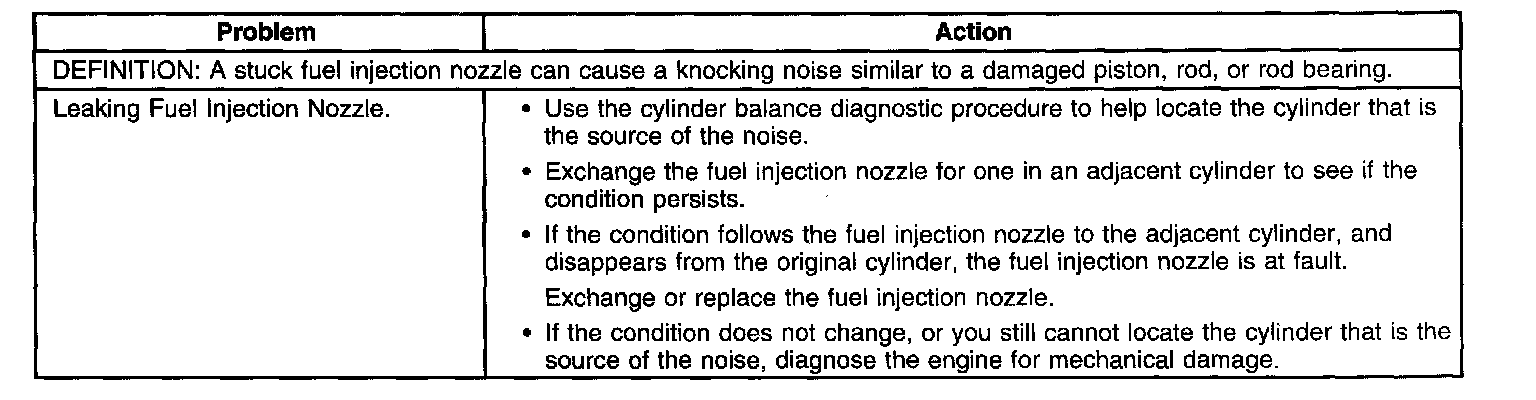

Engine Knock Noise (Fuel Knock)

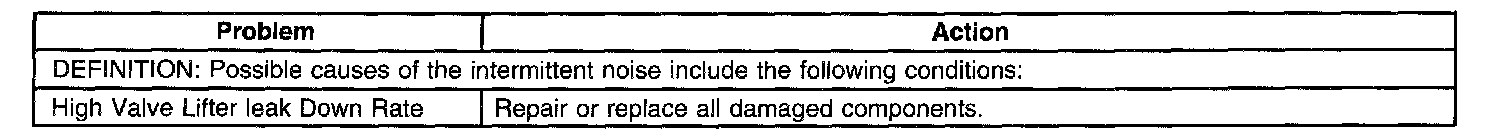

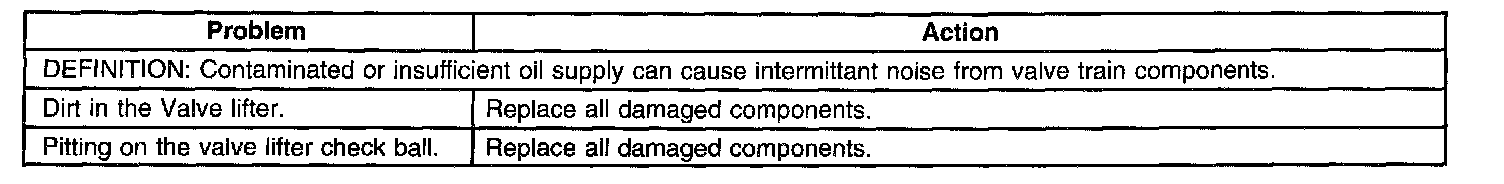

Intermittent Noise on Idle Only, Disappearing When Engine Speed Is Increased

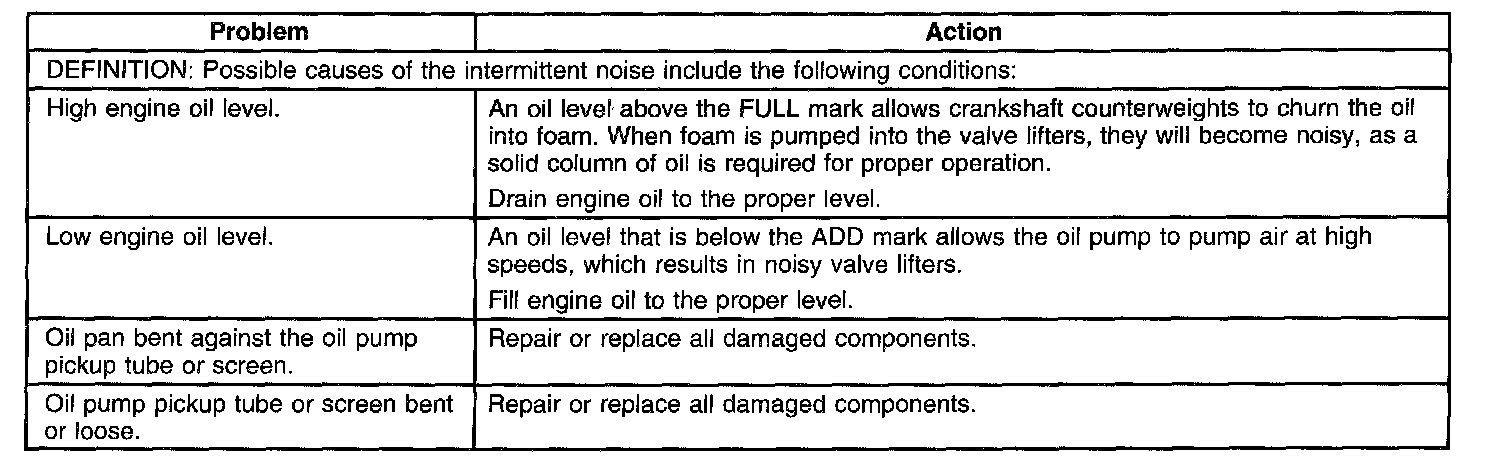

Noise at Slow Idle or With Hot Oil; Quiet at Higher Engine speeds or With Cold Oil







Noise at High Vehicle Speeds, Quiet at Low Vehicle Speeds







Noise Regardless of Engine speed

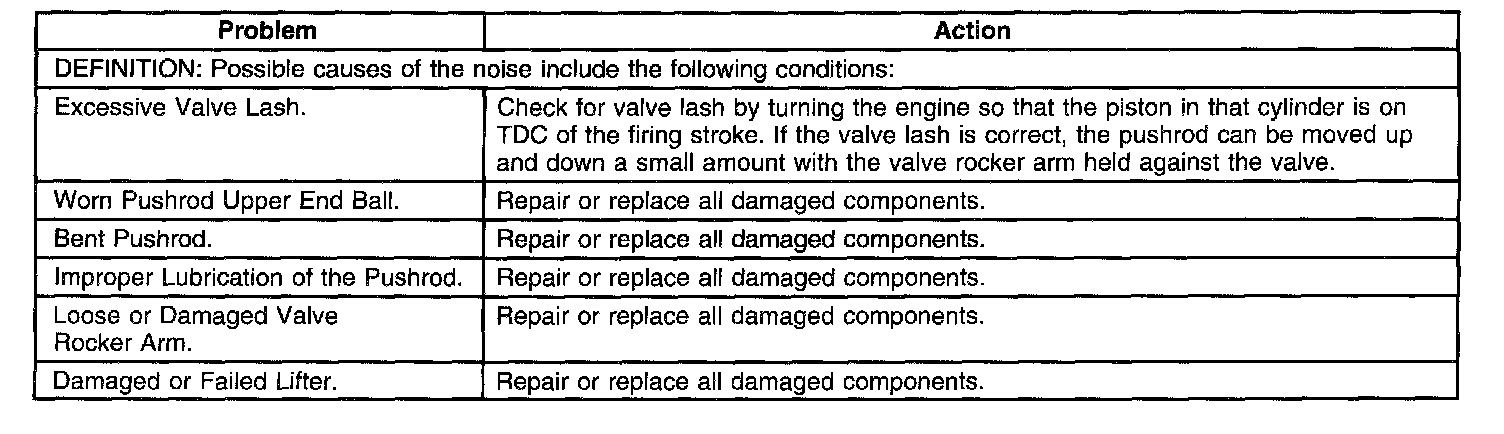

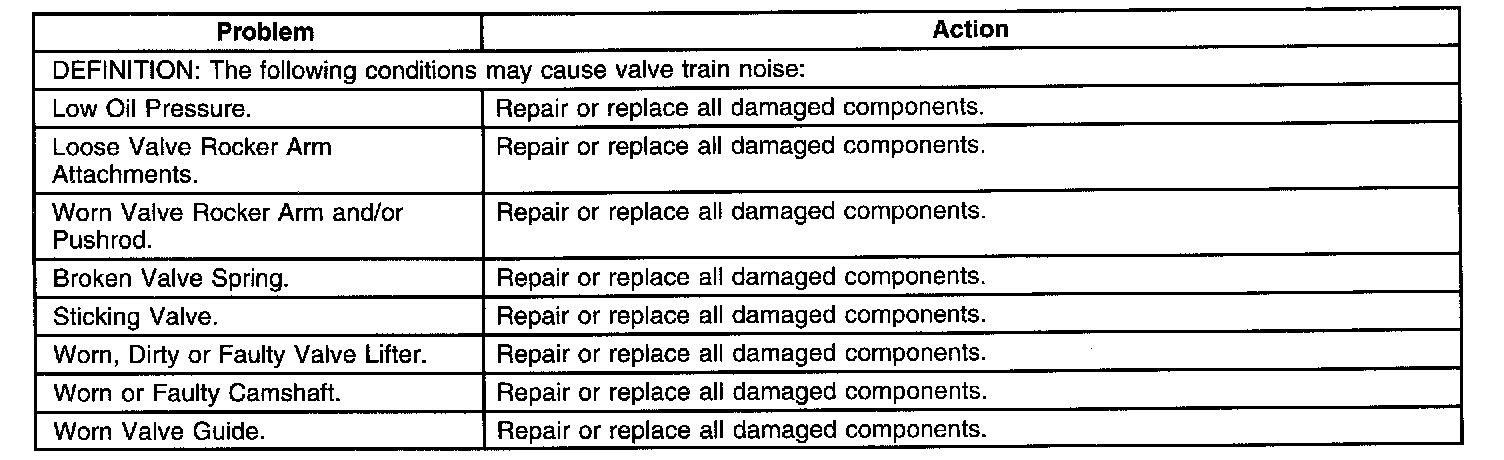

Valve Train Noise.

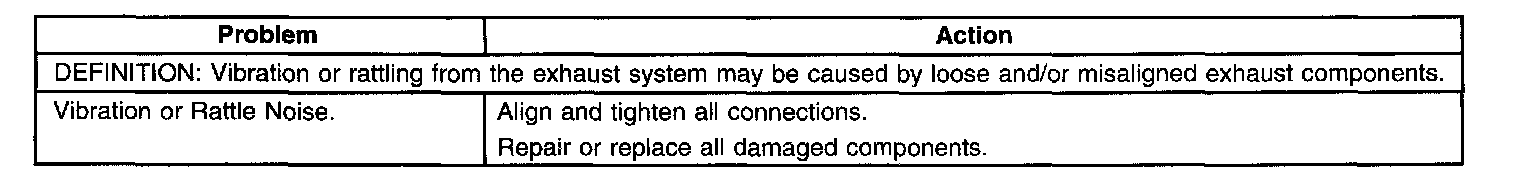

Vibrating or Rattling from Exhaust System

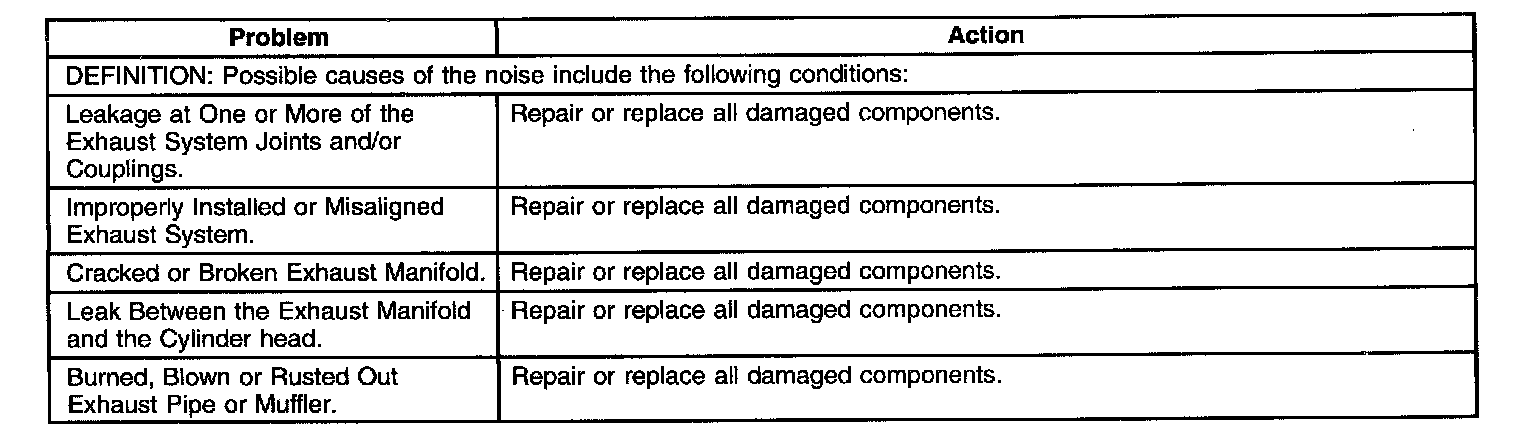

Exhaust Leakage and/or Noise
