Fuel Gauge, Voltmeter, Temp Gauge, Check Gauges LP Driver
Fuel Gauge, Voltmeter, Temp Gauge, Check Gauges LP Driver

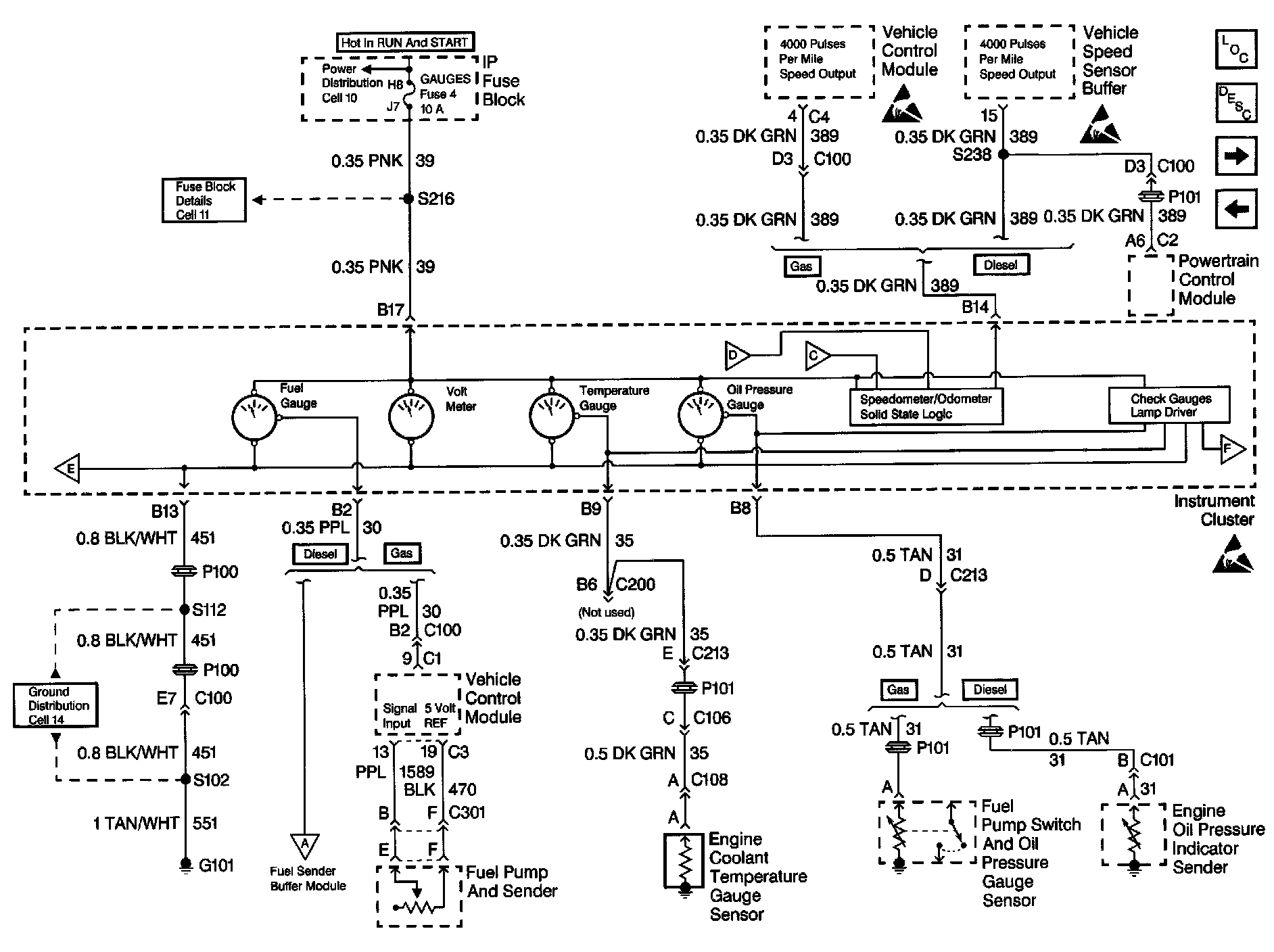

Instrument Cluster Analog Schematics (Export): Fuel Gauge, Voltmeter, Temperature Gauge, Check Gauges Lamp Driver:
