Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Windows and Glass >> Heated Glass Element Relay >> Diagrams

Heated Glass Element Relay: Diagrams

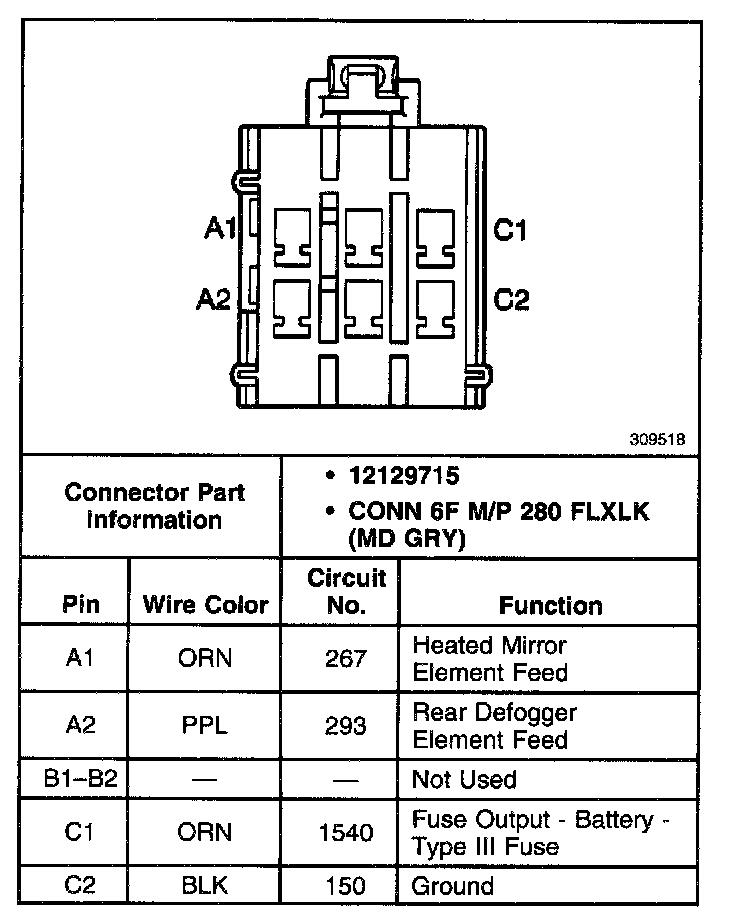

Rear Windows Defogger Relay:
