Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Brake Light Switch >> Diagrams

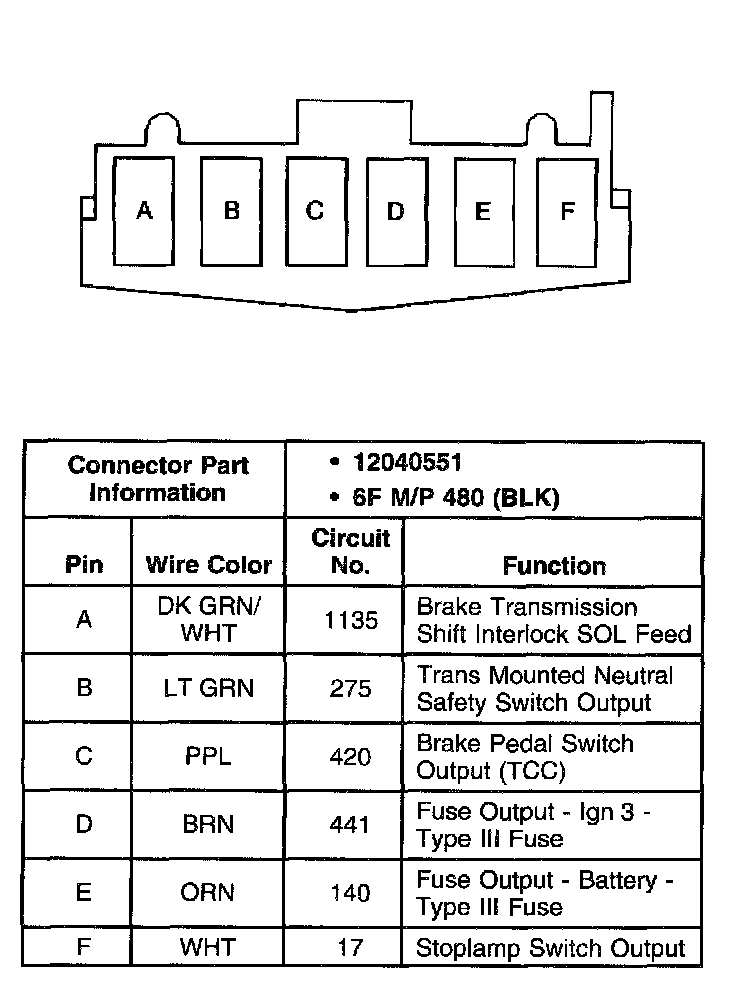

Brake Light Switch: Diagrams
