Power Side Window Switch, Left Front Door, Connector
Power Side Window Switch, Left Front Door, Connector

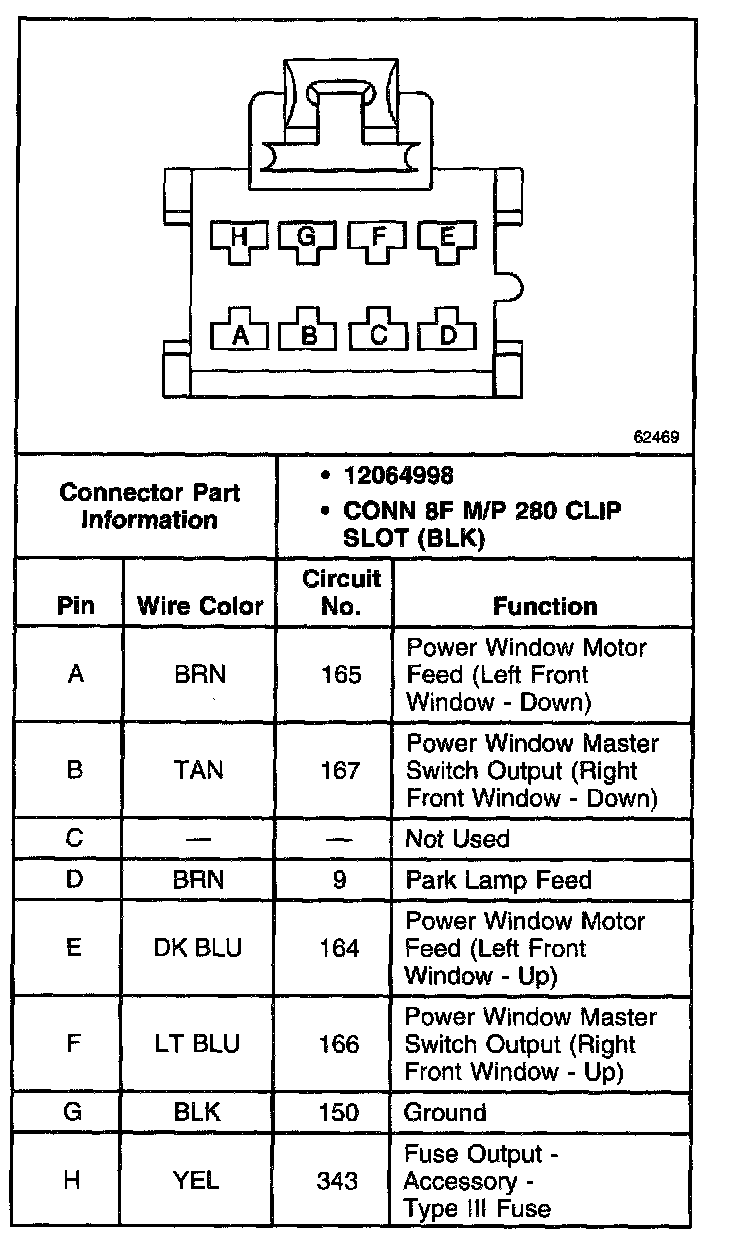

Power Side Window Switch, Left Front Door, Connector:
