Engine
Engine

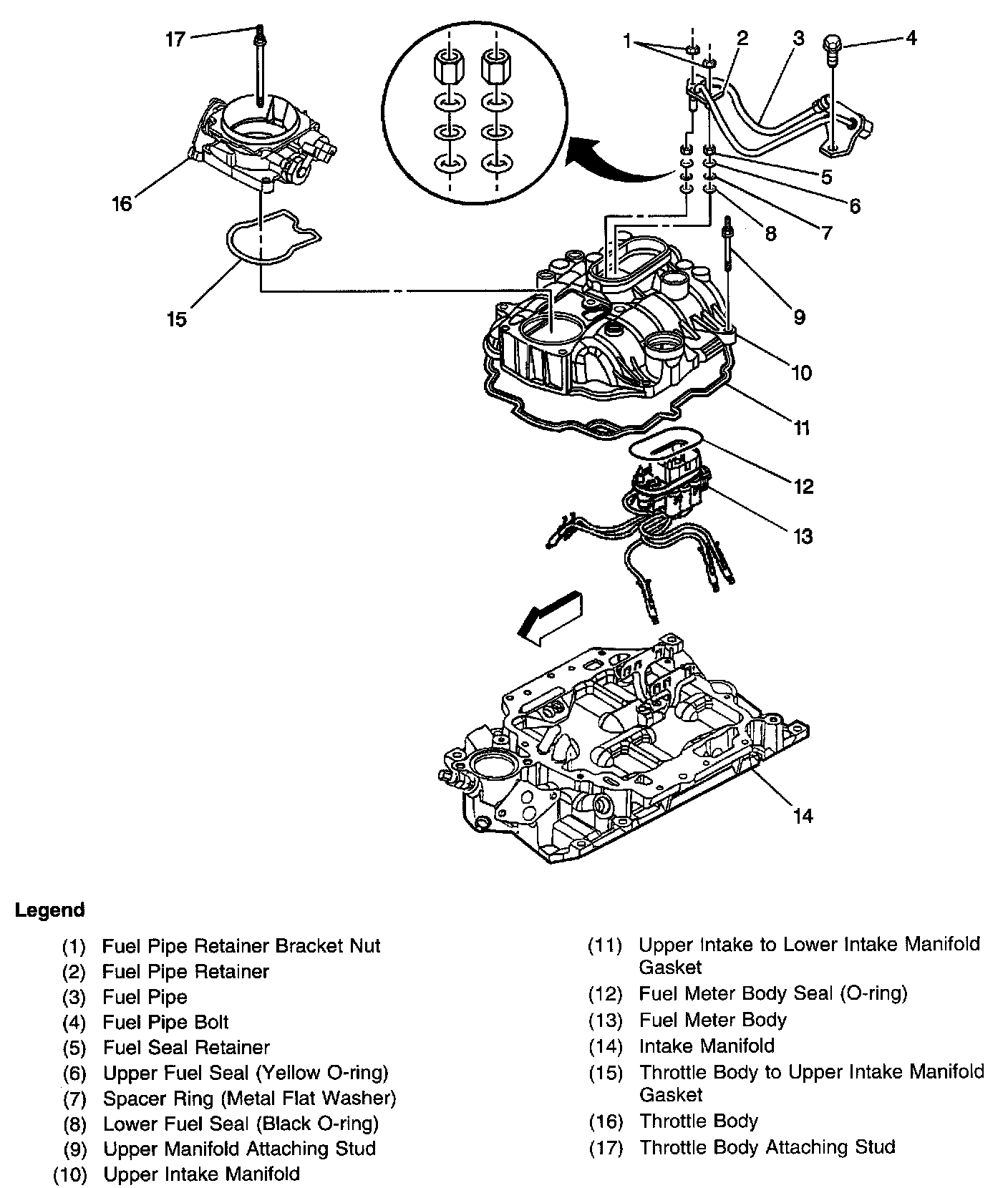

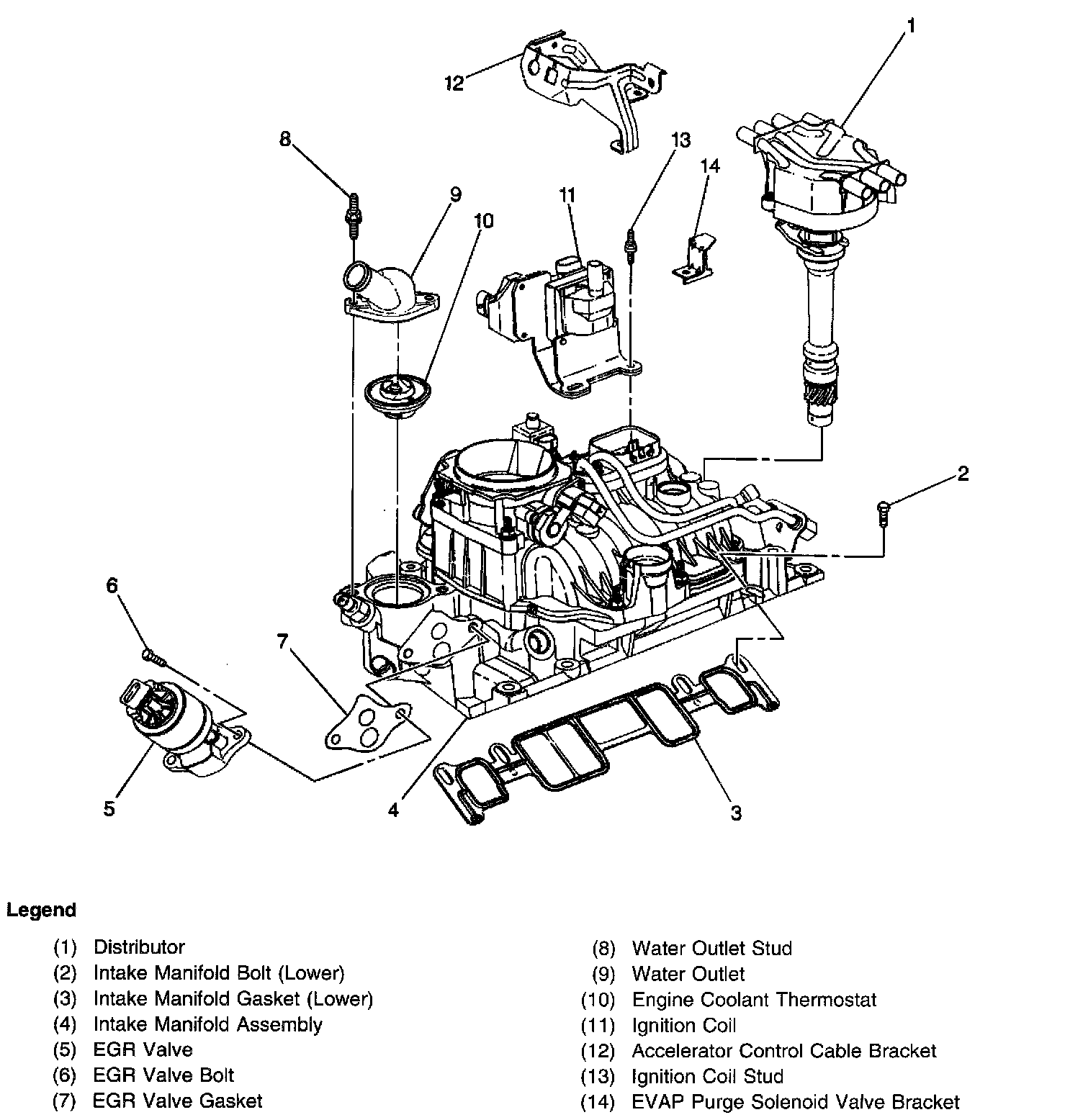

Upper and Lower Intake Manifold View

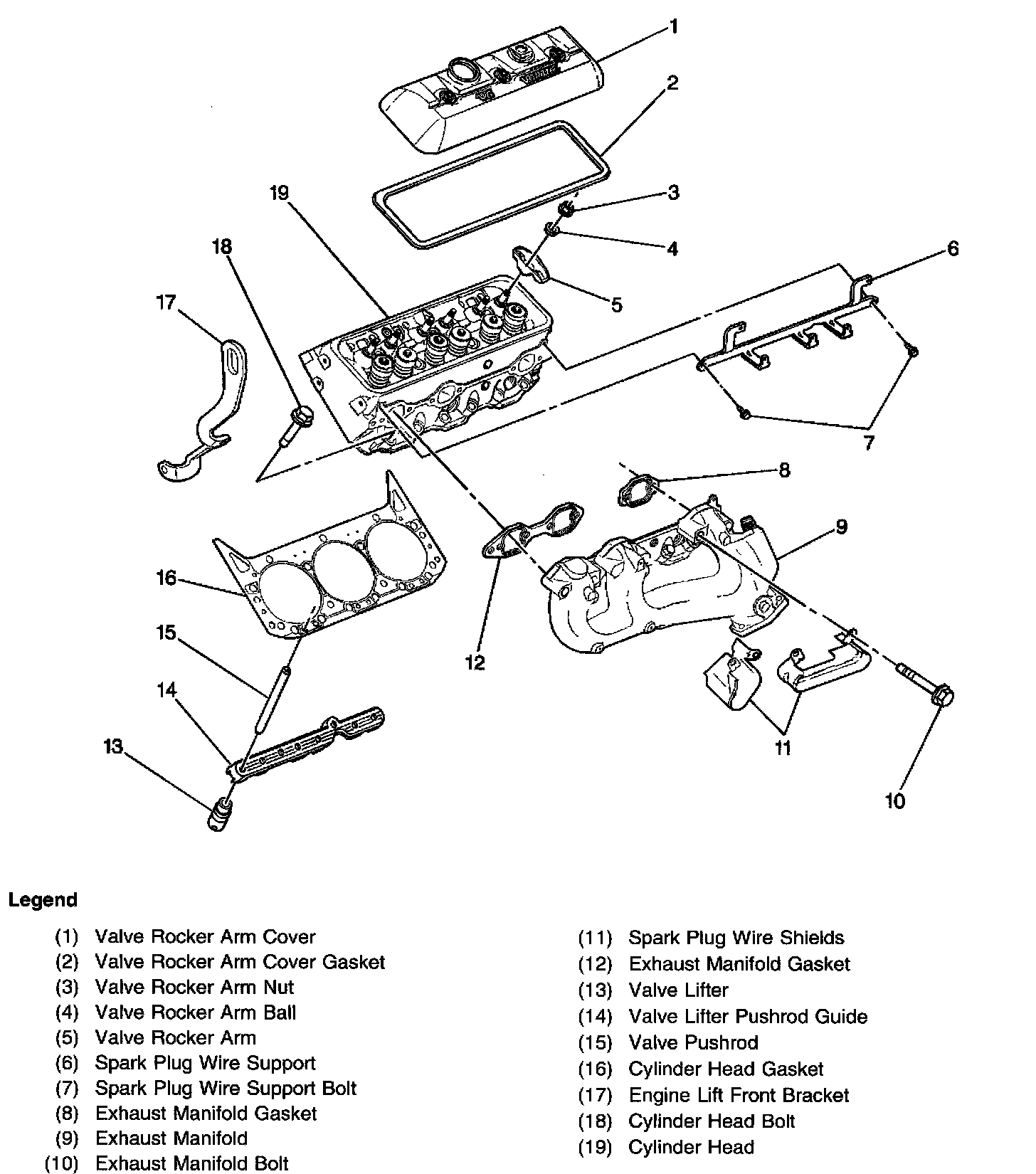

Upper Engine View 1
Upper Engine View 2

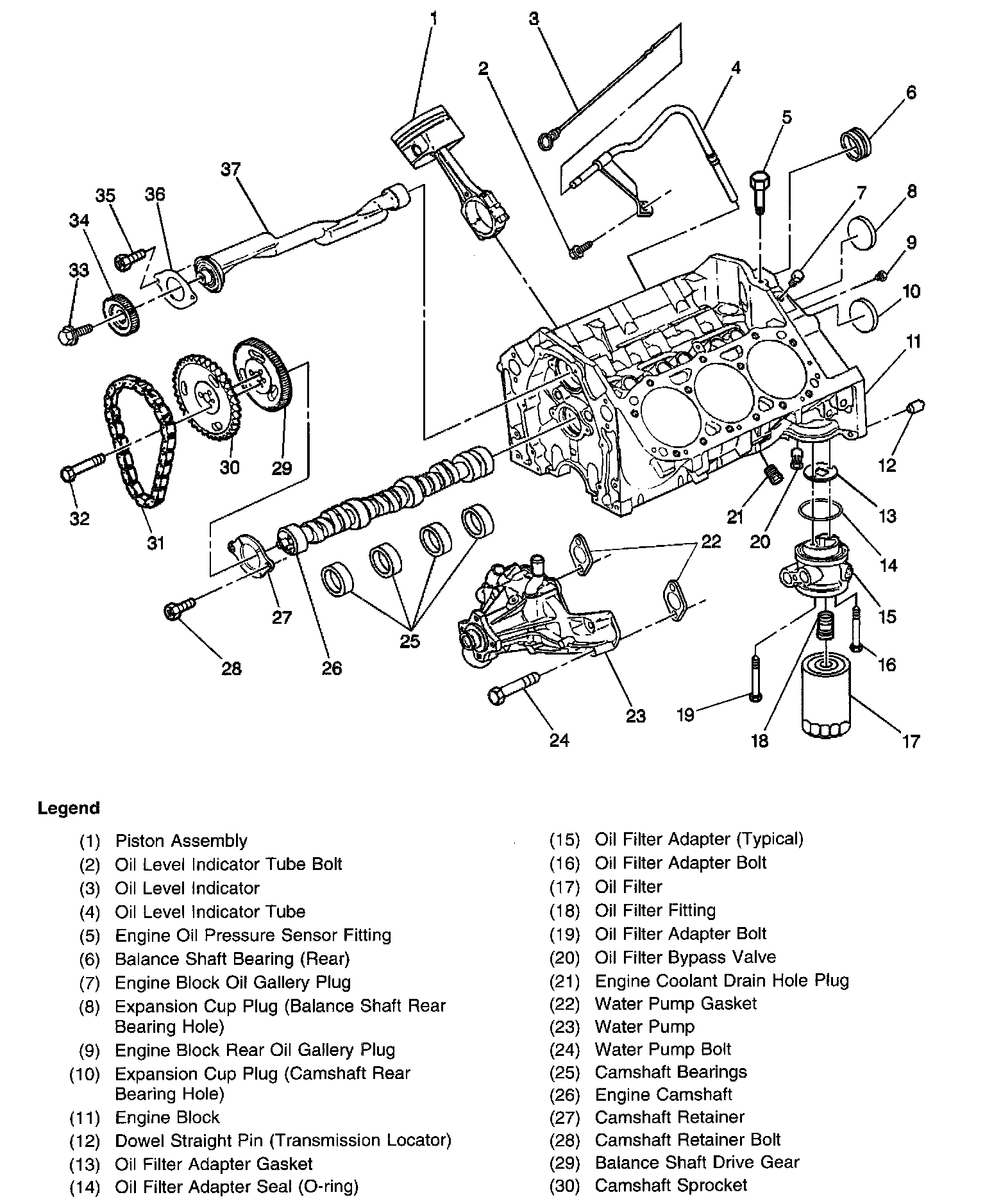

Lower Engine View 1

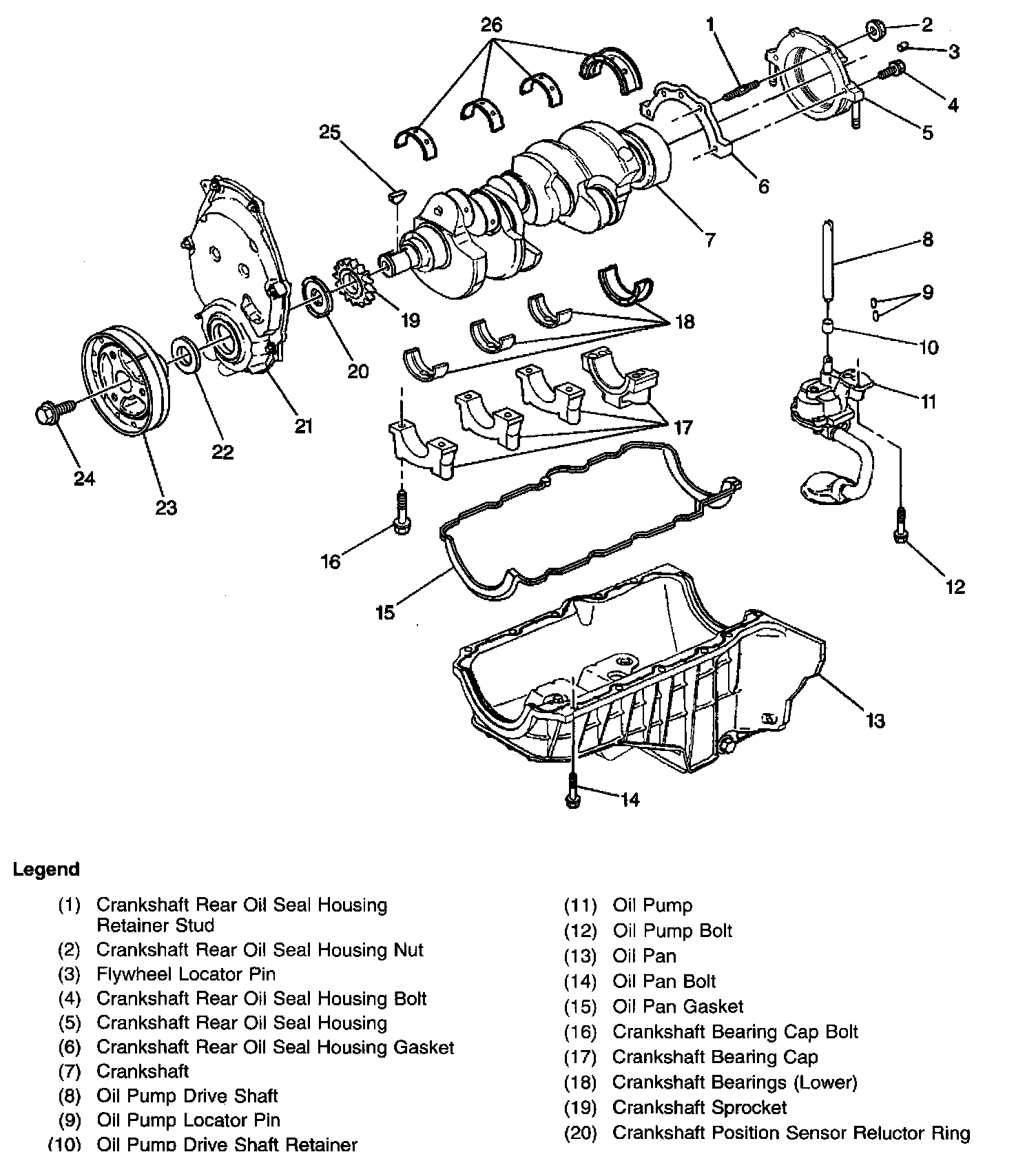

Lower Engine View 2
