Home
>>
Chevy Truck
>>
1999
>>
K 1500 Suburban 4WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
4L60-E/4L65-E Automatic Transmission
>>
A/T Internal Connector End Views
>>

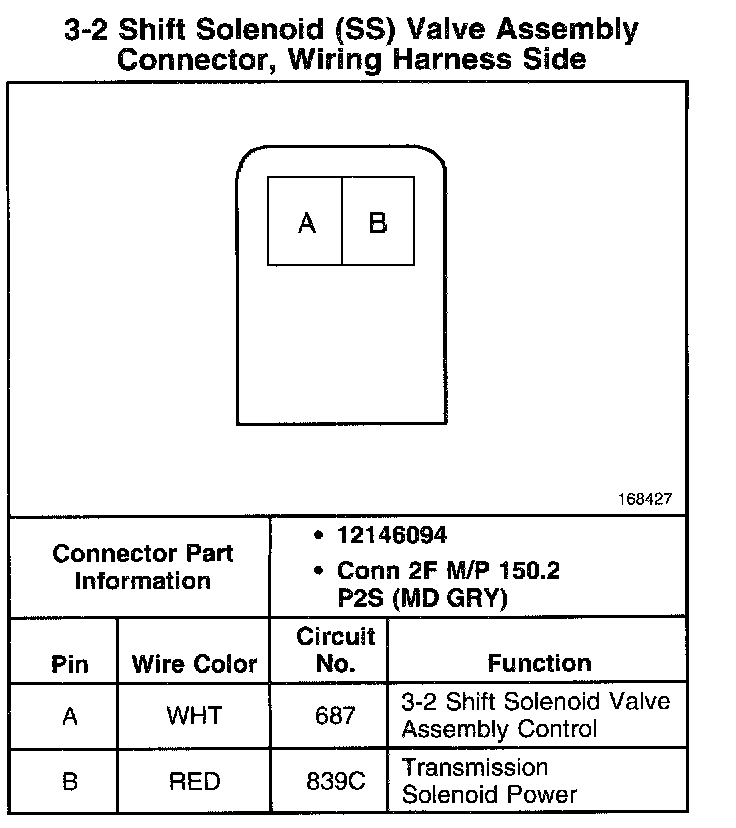

3-2 SS Valve Assembly Connector, Wiring Harness Side
3-2 SS Valve Assembly Connector, Wiring Harness Side
