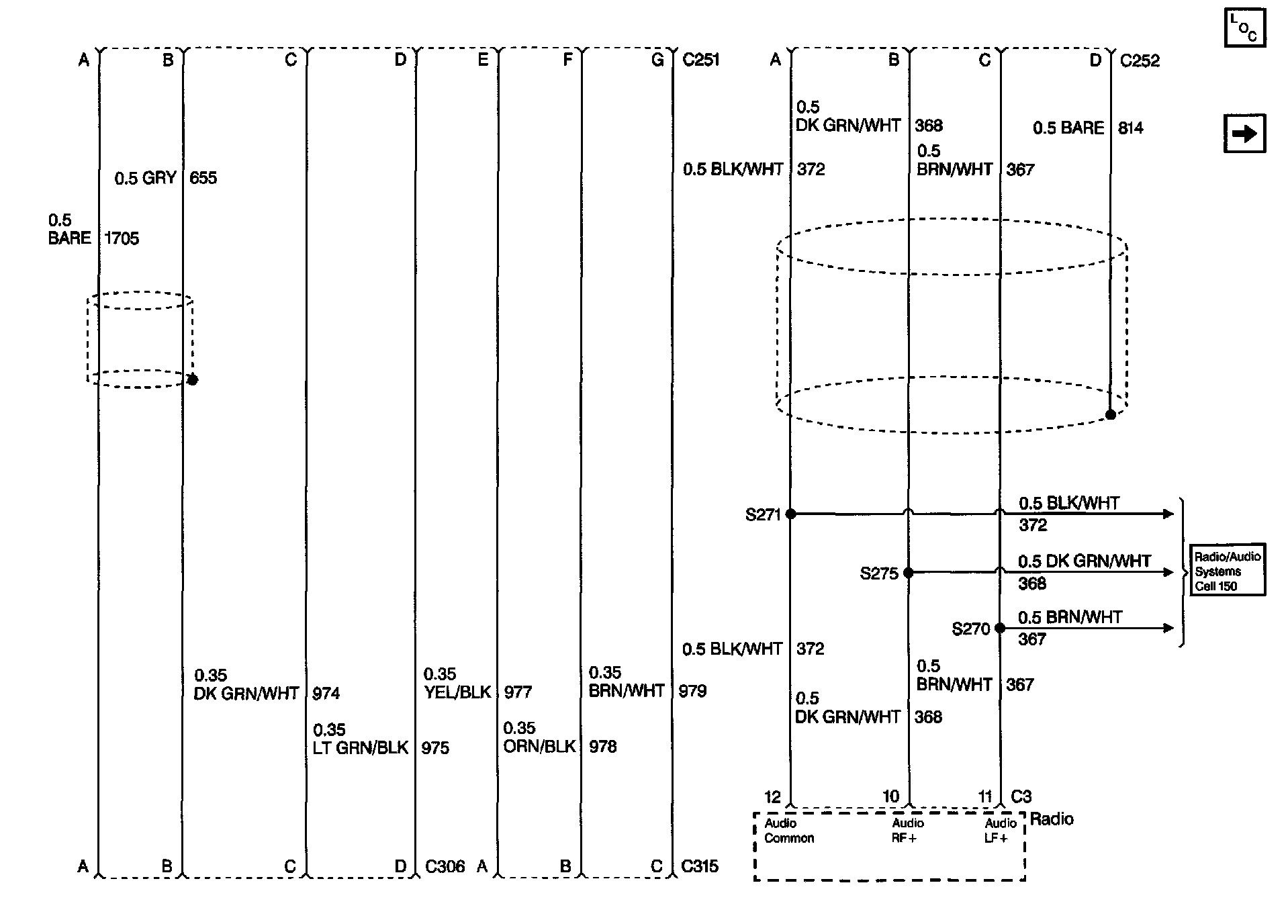

Cellular Inline Harness (C251 and C252)

Cellular Telephone Schematics (Cellular Inline Harness (C251 and C252)):
