B3033

DTC B3033 Security System Indicates Tamper:

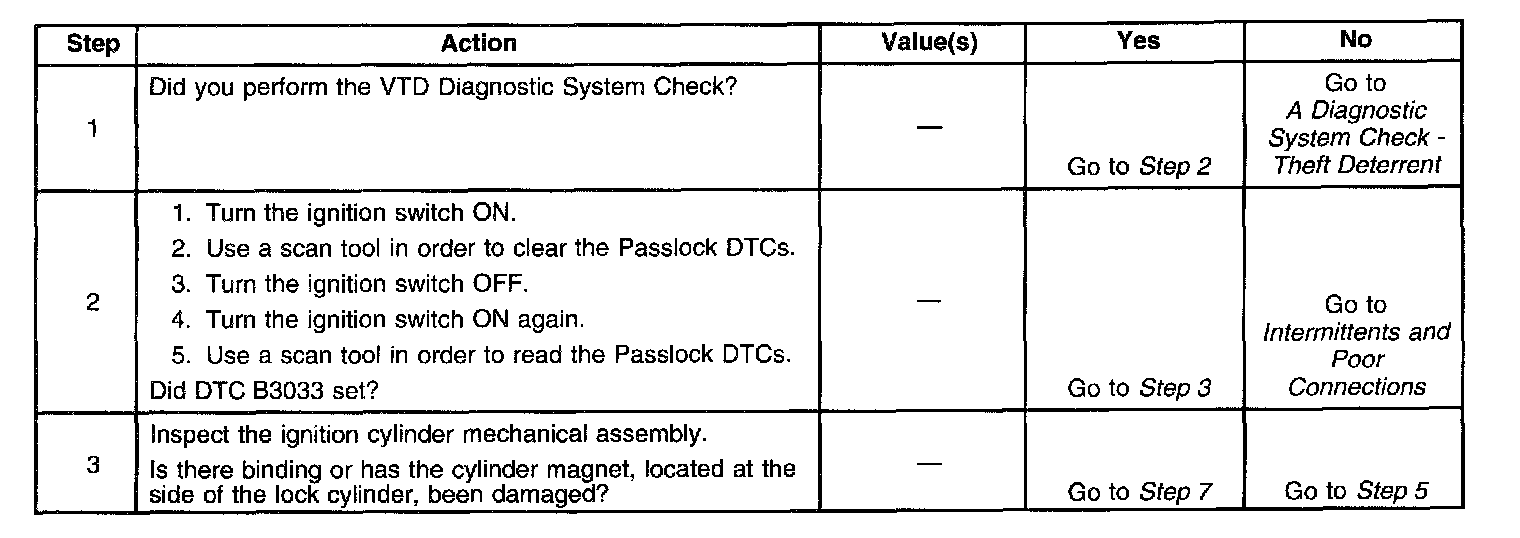

DTC B3033 Security System Indicates Tamper (Part 1 Of 3):

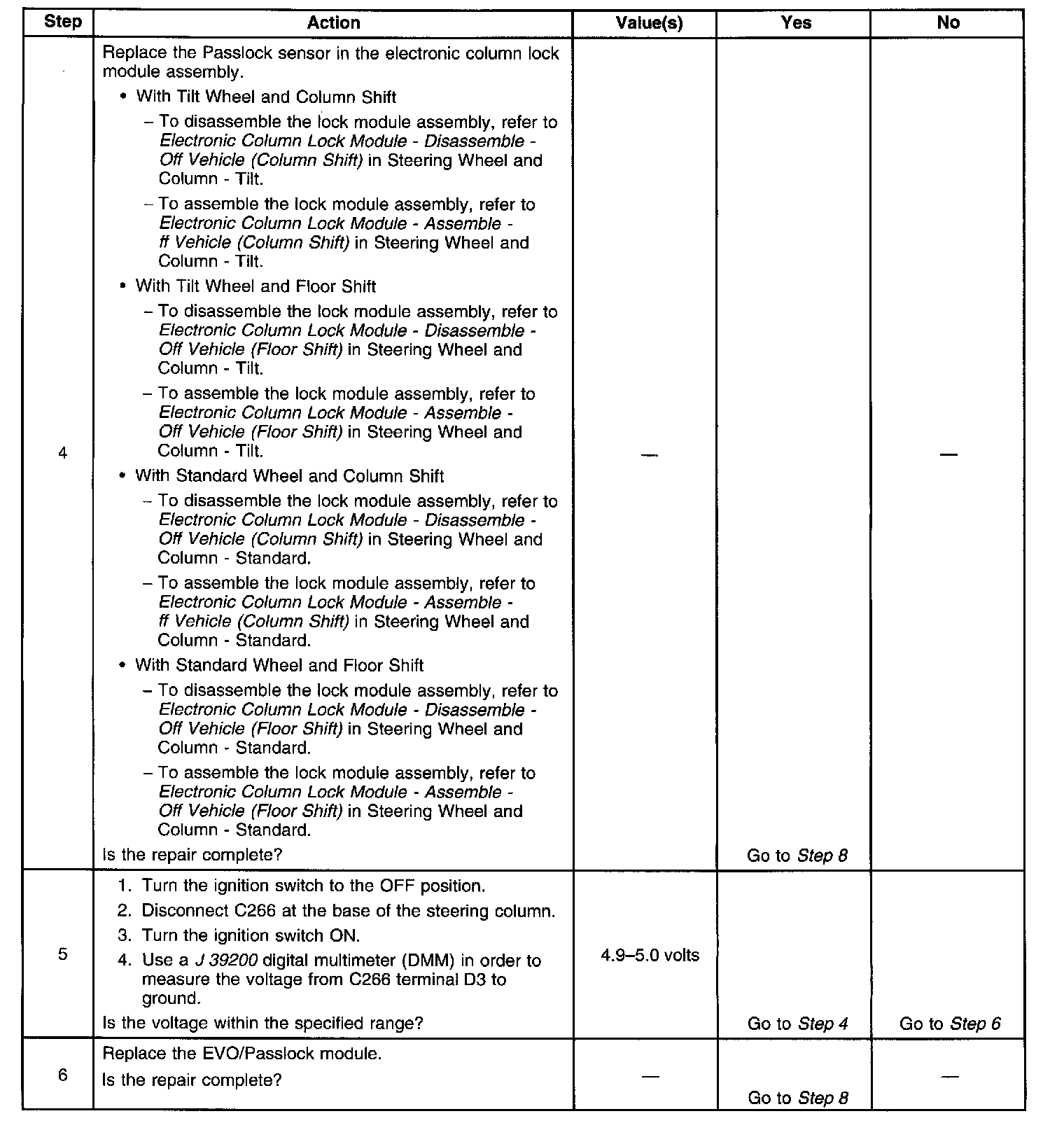

DTC B3033 Security System Indicates Tamper (Part 2 Of 3):

DTC B3033 Security System Indicates Tamper (Part 3 Of 3):

CIRCUIT DESCRIPTION
The EVO/PASSLOCK module will read an analog voltage from the PASSLOCK sensor. Based on an internal reference, the EVO/PASSLOCK module will determine if the measured voltage is open, shorted to ground, a valid code, or a tamper code. In this case, the EVO/PASSLOCK module is reading a tamper code.

CONDITIONS FOR SETTING THE DTC
^ The EVO/PASSLOCK module will inspect for a tamper code when the ignition is rotated from ON to crank.
^ The EVO/PASSLOCK module is reading a tamper code form the PASSLOCK sensor for longer than 1.0 second.

ACTION TAKEN WHEN THE DTC SETS
^ The vehicle will not run. The security telltale will be flashing.
^ The PASSLOCK state is Tamper.

CONDITIONS FOR CLEARING THE DTC
^ The DTC will clear after an ignition cycle has occurred without the fault.
^ EVO/PASSLOCK module history codes will be cleared after 100 ignition cycles with no current codes active.
^ Using a scan tool.

DIAGNOSTIC AIDS
^ Prior to replacing a EVO/PASSLOCK module, ensure all the diagnostics have been completed, Refer to Diagnostic Trouble Code (DTC) Displaying for troubleshooting priority. Diagnostic Trouble Code (DTC) Order of Importance
^ Perform a visual inspection of the wiring and the connectors.
^ Inspect the PASSLOCK sensor harness for an intermittent or poor connections (including the in-line connector).

TEST DESCRIPTION
The numbers below refer to the numbers on the diagnostic table.
2. This step test if DTC B3033 is intermittent.
3. This test inspects for a mechanical condition.
5. This step will determine if the condition is in the EVO/PASSLOCK module or the PASSLOCK sensor.
