P0440

Circuit Description
The Evaporative Emission (EVAP) control system leak detection diagnostic strategy is based on applying vacuum to the EVAP system and monitoring vacuum decay. The Powertrain Control Module (PCM) monitors the vacuum level via the fuel tank pressure sensor input. The PCM turns ON the EVAP canister purge valve and the EVAP vent solenoid, allowing engine manifold pressure to draw a small vacuum on the entire EVAP system. If a sufficient vacuum cannot be sustained over a given period of time, a small leak or a malfunction is suspected and a DTC P0440 sets.

The EVAP system as defined by federal regulation includes the following components:
^ Fuel tank
^ EVAP vent solenoid
^ Fuel tank pressure sensor
^ Fuel pipes and hoses
^ Vapor lines
^ Fuel filler cap
^ Fuel tank pressure control valve
^ EVAP canister
^ Purge lines
^ EVAP canister purge valve

Condition for Running the DTC
^ Engine coolant temperature between 70°C (158°F) and 110°C (230°F)
^ Intake air temperature between -7°C (19°F) and +70°C (158°F)
^ Barometric pressure more than 75 kPa
^ Fuel tank level is less than 75 percent.
^ The engine is operating in close loop.
^ Engine speed between 1,000 and 3,000 RPM (A/T), 1,000 and 3,500 RPM (M/T)

Conditions for Setting the DTC
Fuel tank pressure change indicates EVAP system purge accumulation time is more than 360 seconds.
Diagnostic may take up to 20 minutes to run.

Action Taken When the DTC Sets
^ The PCM illuminates the Malfunction Indicator Lamp (MIL) after two consecutive ignition cycles in which the diagnostic runs with the fault active.
^ The PCM records the operating conditions at the time the diagnostic fails. This information is stored in the Freeze Frame buffer.

Conditions for Clearing the MIL/DTC
^ The MIL turns off after three consecutively passing trips without a fault present.
^ A history DTC clears after 40 consecutive warm-up cycles without a fault.
^ Perform the scan tool Clear DTC Information function in order to clear the DTC.

Diagnostic Aids
A DTC P0440 is more likely to set during city driving. Avoid operating the vehicle for long periods on the highway when validating a DTC P0440.
The EVAP Purge diagnostic checks for many of the faults that can cause a DTC P0440 to set. If the EVAP Purge test passes the cause of the DTC P0440 is probably intermittent. Clear the DTCs. Road test the vehicle while monitoring the EVAP Purge test in the MIL/System Status selection under System Information on the scan tool. When the EVAP Purge test indicates complete with a YES status, check for a DTC P0440 under Last Test Failed. If there is no DTC P0440 indicated, the DTC is intermittent and the purge system diagnostic is indicating OK at this time. Check for any of the following conditions:
^ Cracked or punctured EVAP canister
^ A damaged or disconnected source vacuum line, EVAP purge line, vent hose or fuel tank vapor line
^ A faulty or erratic fuel level sensor can cause a DTC P0440 to set.
^ A faulty or erratic fuel tank pressure sensor can cause a DTC P0440 to set.
^ A faulty EVAP canister purge valve
^ A faulty EVAP canister vent solenoid
^ A faulty EVAP tank pressure control solenoid vacuum valve

For functional checks of the components listed above, refer to EVAP Control System Diagnosis. Component Tests and General Diagnostics

If a DTC P0440 is intermittent, driving the vehicle under the following conditions can verify whether the fault is present. Perform the scan tool Clear DTC Information function. Road test the vehicle while monitoring the DTC P0440 diagnostic on the scan tool under the Not Ran Since Code Cleared selection in the DTC Information menu. If a DTC P0440 appears in the Not Ran Since Code Cleared list, the P0440 diagnostic has not yet run. When the DTC P0440 does not appear in the Not Ran Since Code Cleared list, the P0440 diagnostic has run. If the MIL is NOT ILLUMINATED, and there is no PENDING DTC Status in DTC Information, the P0440 diagnostic A has passed. DTCs MUST BE CLEARED in order to view the CURRENT STATUS of the Not Ran Since Code Cleared list. DO NOT FORGET that the Not Ran Since Code Cleared list only indicates that the test has run, not whether the test passed or failed. The DTC Information screen must be checked for CURRENT or PENDING status, in order to determine the outcome of the diagnostic test involved.

An intermittent malfunction may be caused by a fault in any of the EVAP control system electrical circuits. Inspect the wiring harness and components for any of the following conditions:
^ Backed out terminals
^ Improper mating of terminals
^ Broken electrical connectors locks
^ Improperly formed or damaged terminals
^ Faulty terminal to wire connections
^ Physical damage to the wiring harness
^ A broken wire inside the insulation
^ Corrosion of electrical connections, splices, or terminals

If the DTC P0440 cannot be duplicated, the information included in the Freeze Frame data can be useful in determining vehicle operating conditions when the DTC was first set.

Test Description
The numbers below refer to the step numbers in the diagnostic table.

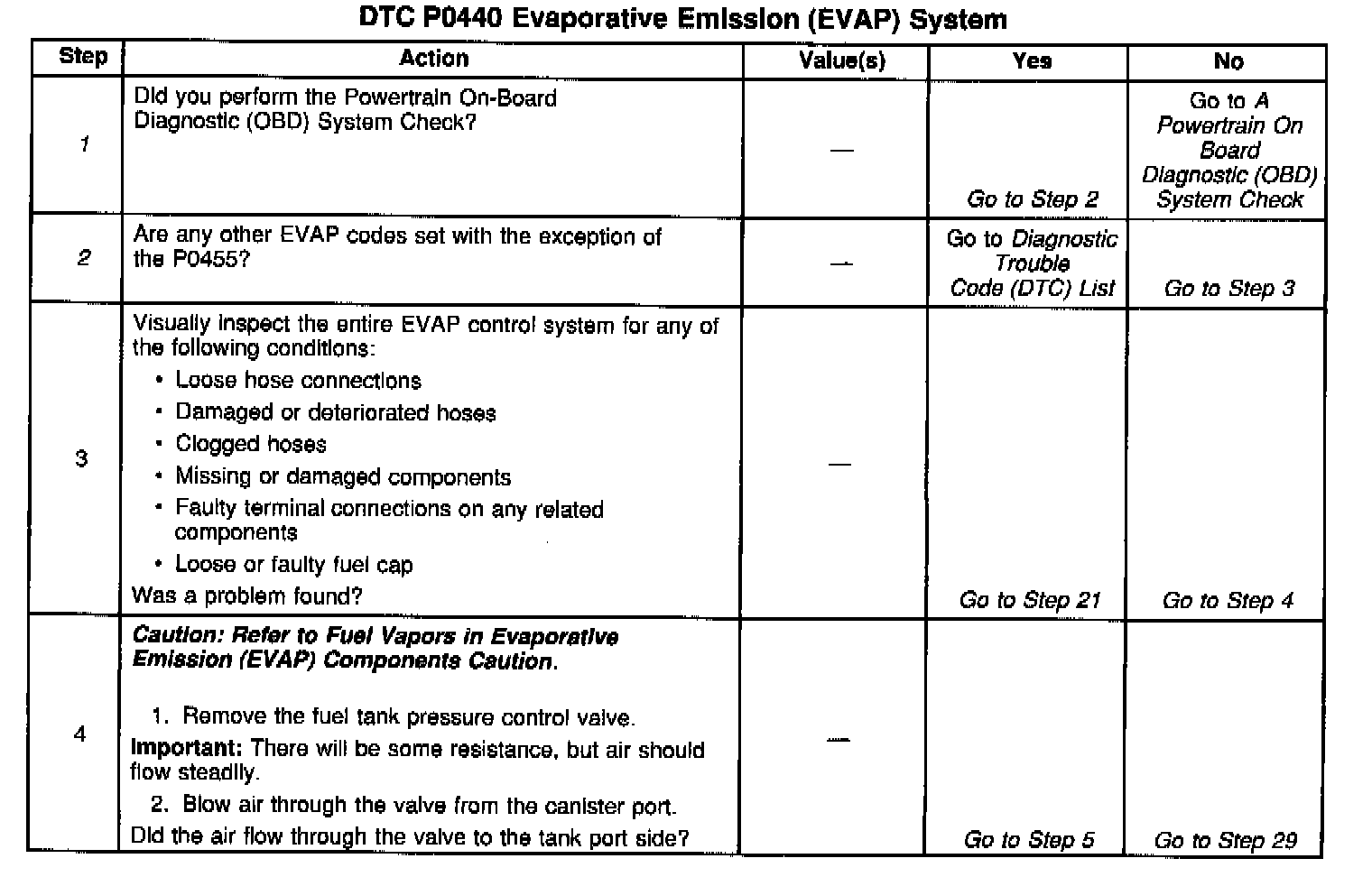

1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the Freeze Frame data on the scan tool if applicable. This creates an electronic copy of the data taken when the fault occurred. The information is then stored in the scan tool for later reference.
2. If any other EVAP Diagnostic Trouble Codes except a DTC P0455 are set, diagnose those DTCs first.

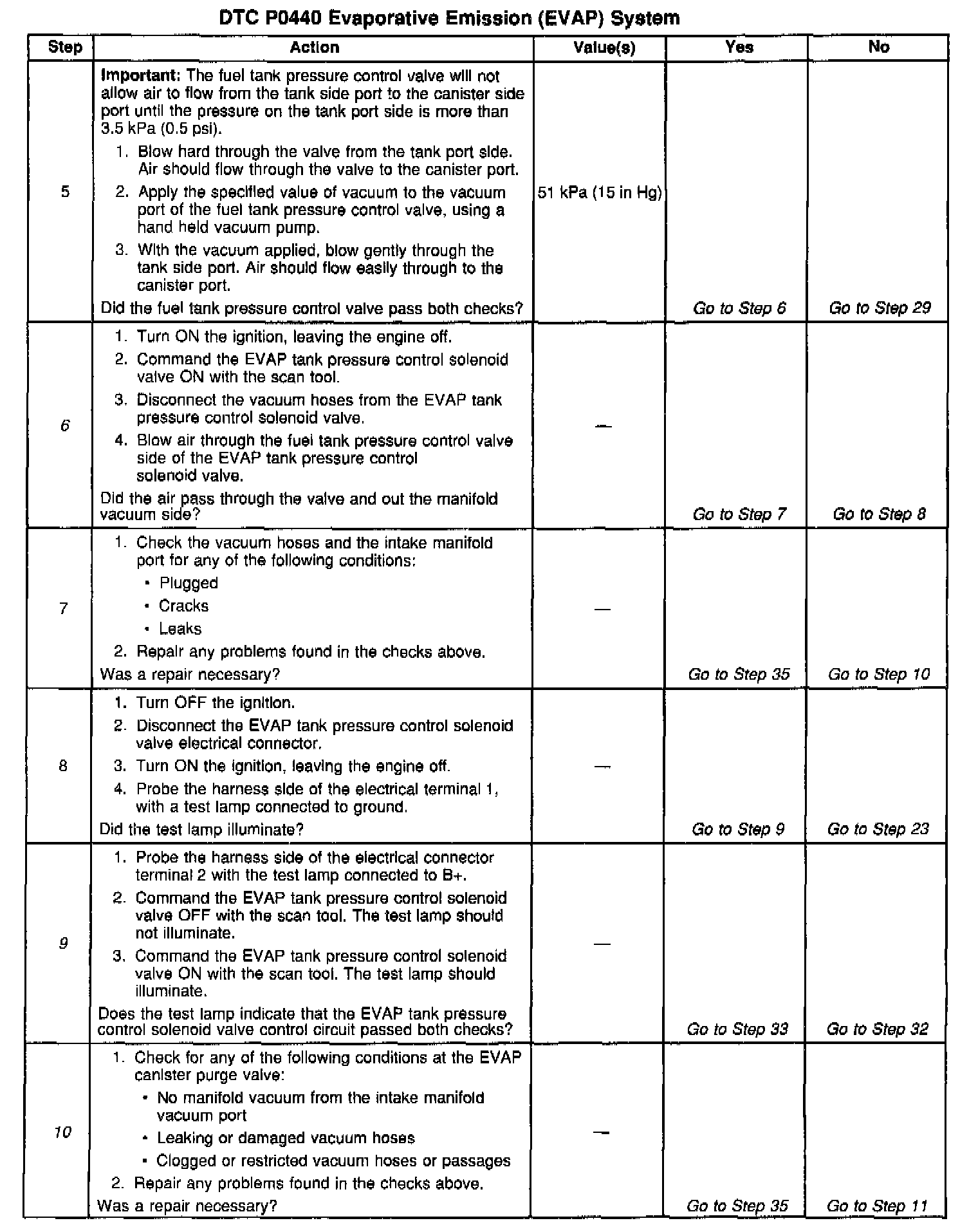

6. This step checks the operation of the EVAP tank pressure control solenoid vacuum valve. The EVAP tank pressure control solenoid vacuum valve output control is disabled by the PCM when any DTCs are stored and when engine speed is indicated.
9. This step checks the EVAP tank pressure control solenoid vacuum valve control circuit. A short to ground will keep the EVAP tank pressure control solenoid vacuum valve open and cause the system to fail. The EVAP tank pressure control solenoid vacuum valve output control is disabled by the PCM when any DTCs are stored and when engine speed is indicated.
10. This step checks the components that supply manifold vacuum to the EVAP canister purge valve. A plugged or leaking EVAP canister surge tank may prevent vacuum from reaching the EVAP canister purge valve.

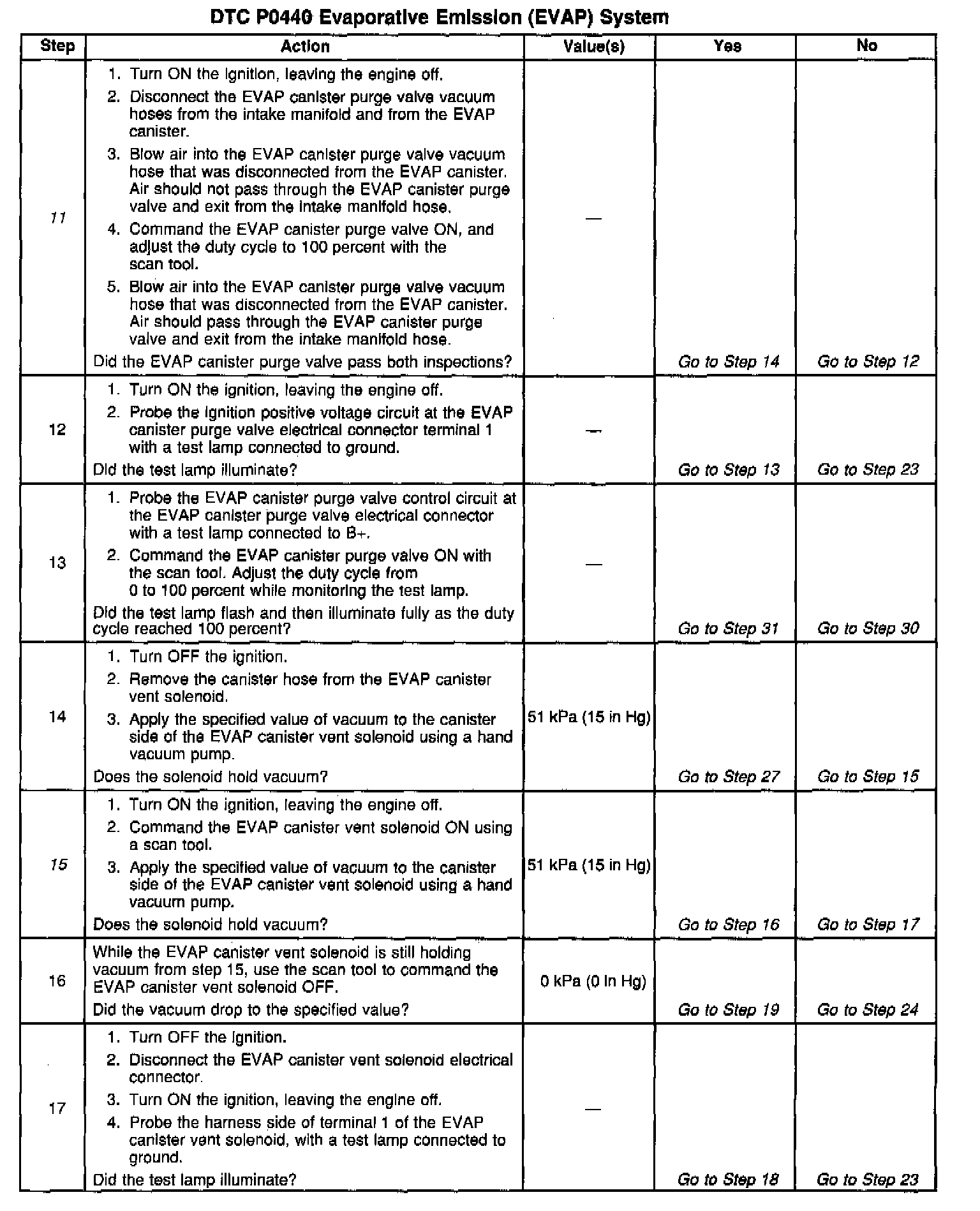

11. This step checks the operation of the EVAP canister purge valve. The EVAP canister purge valve duty cycle control is disabled by the PCM when any DTCs are stored and when engine speed is indicated.
15. This step checks the operation of the EVAP canister vent solenoid. The EVAP canister vent solenoid output control is disabled by the PCM when any DTCs are stored and when engine speed is indicated.
18. This step checks the EVAP canister vent solenoid control circuit. The EVAP canister vent solenoid output control is disabled by the PCM when any DTCs are stored and when engine speed is indicated.
19. This step uses tools from the EVAP pressure/purge cart diagnostic station, in order to determine whether EVAP control system is sealed sufficiently to be pressurized. Any leak that is found must be located and repaired before continuing with the diagnosis.
20. Use the ultrasonic leak detector in order to locate any leaks after pressurizing the EVAP system.
22. This step checks the EVAP canister for blockage or restrictions.

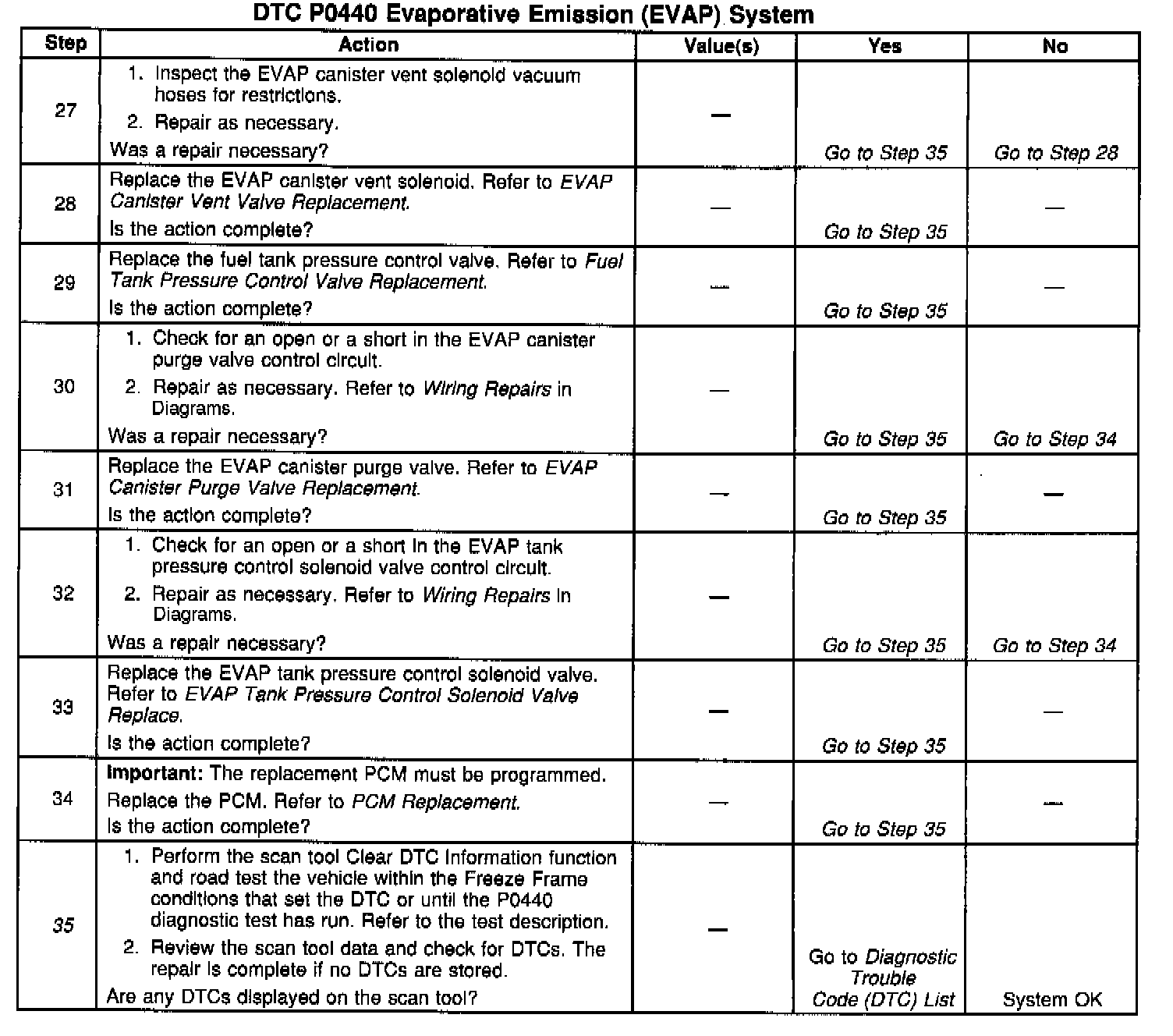

35. This step checks whether the malfunction that caused the DTC P0440 is still present. Driving the vehicle under these conditions will verify whether the fault is present. After performing the scan tool Clear DTC information function, the DTC P0440 diagnostic can be monitored on the scan tool under the Not Ran Since Code Cleared selection in the DTC information menu. If a DTC P0440 appears in the Not Ran Since Code Cleared list, the P0440 diagnostic has not yet run. When the DTC P0440 does not appear in the Not Ran Since Code Cleared list, the P0440 diagnostic has run. If the MIL is NOT ILLUMINATED and there is no PENDING DTC Status in DTC Information, the P0440 diagnostic has passed. DTCs MUST BE CLEARED in order to view the CURRENT STATUS of the Not Ran Since Code Cleared list. DO NOT FORGET that the Not Ran Since Code Cleared list only indicates that the test has run, not whether the test passed or failed. The DTC Information screen must be checked for CURRENT or PENDING status, in order to determine the outcome of the diagnostic test involved.
