R134a Temperature-Pressure Relationship - HVAC System - Manual
R134a Temperature-Pressure Relationship - HVAC System - Manual

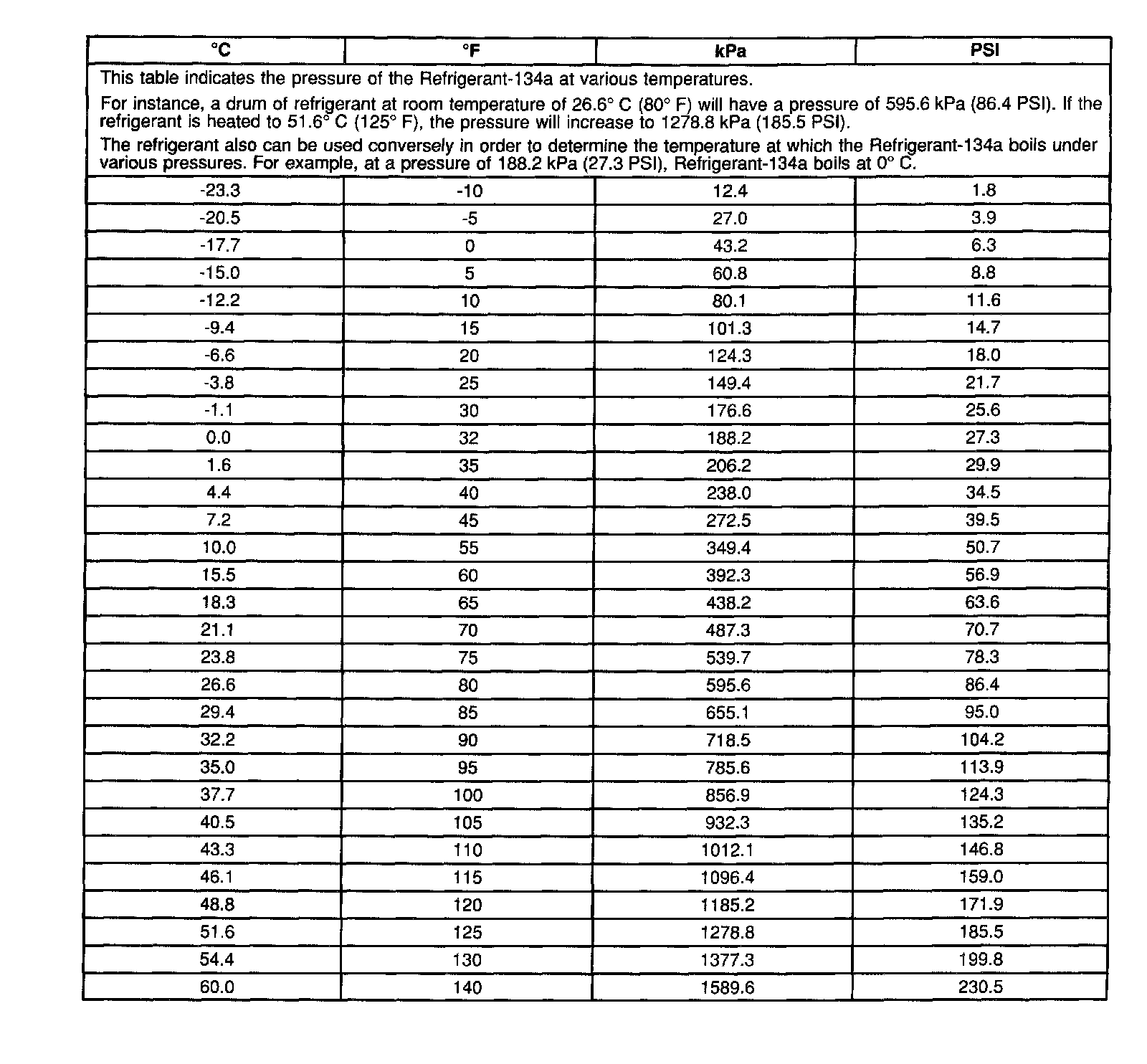

Refrigerant-134a Pressure-temperature Relationship:
