Chevy Truck
>>
1999
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Junction Block
>>
C4
C4

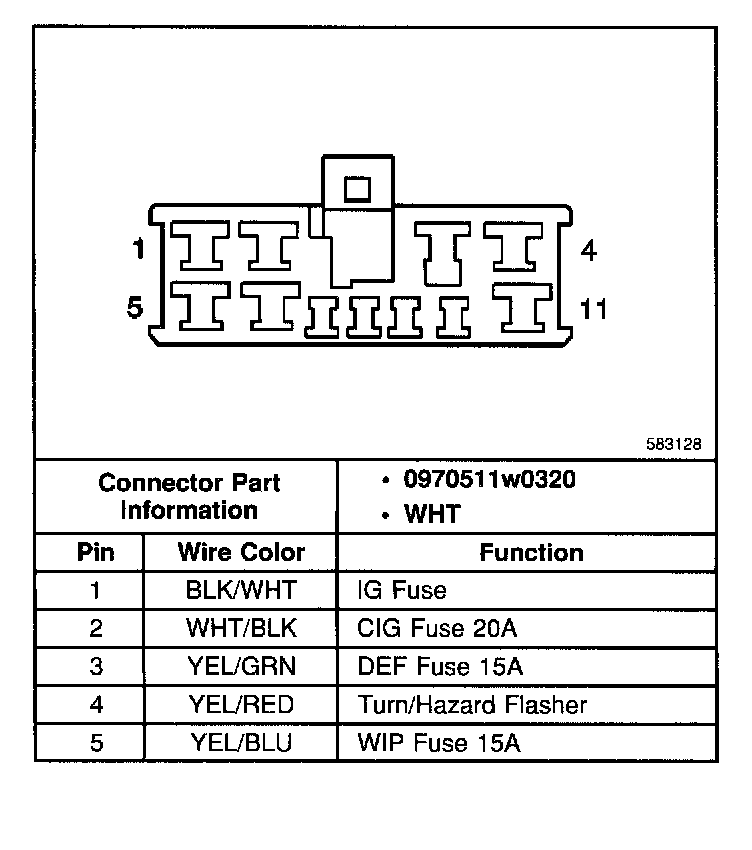

Junction Block C4 (Part 1 Of 2):

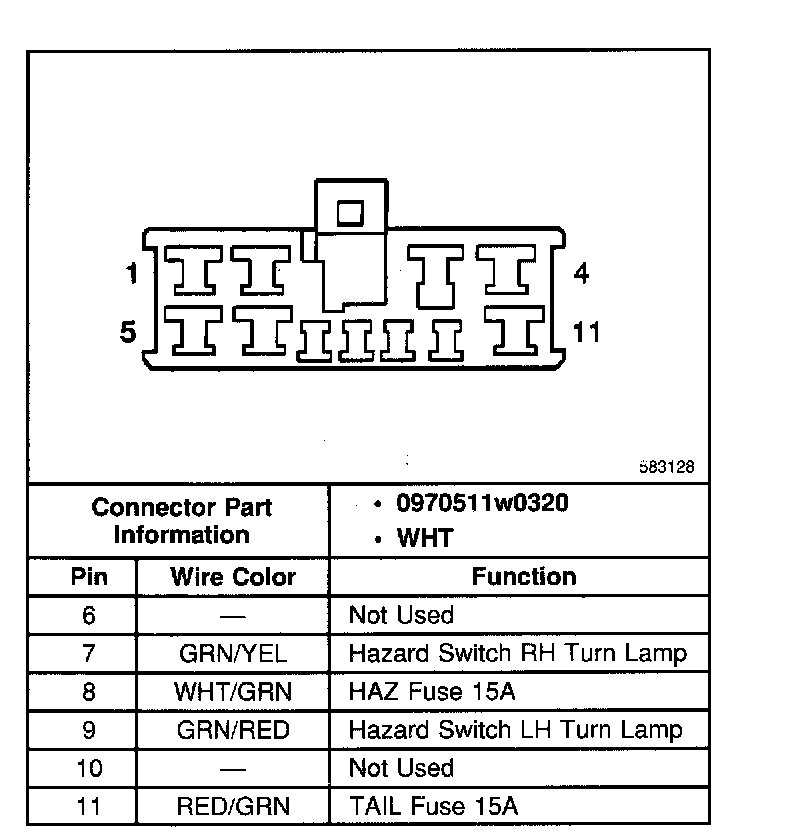

Junction Block C4 (Part 2 Of 2):
