Wheel Speed Sensor Ring Replacement - Front

REMOVAL PROCEDURE





1. Remove the Front Wheel Hub.

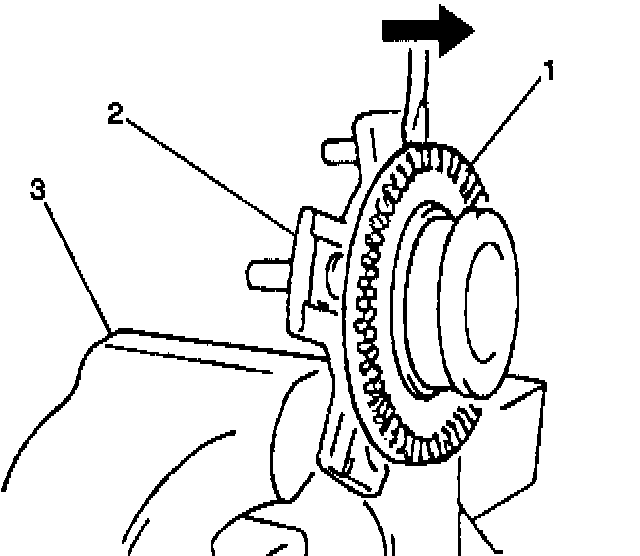

2. Remove the ABS reluctor ring (1) from the wheel hub (2) by prying the ring away from the hub.

INSTALLATION PROCEDURE

^ Tools Required
- J 39245 ABS Sensor Ring Installer

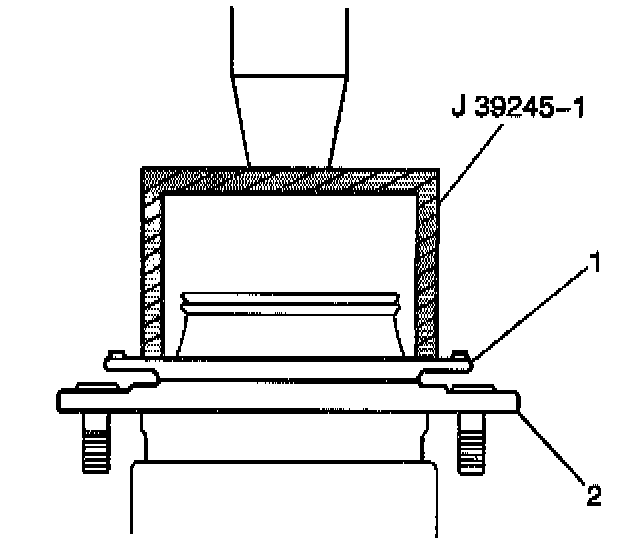

1. Using J 39245, press the ABS reluctor ring (2) onto the wheel hub.
2. Install the Front Wheel Hub.
3. Perform A Diagnostic System Check - ABS.
