ABS Lamp Driver: Service and Repair

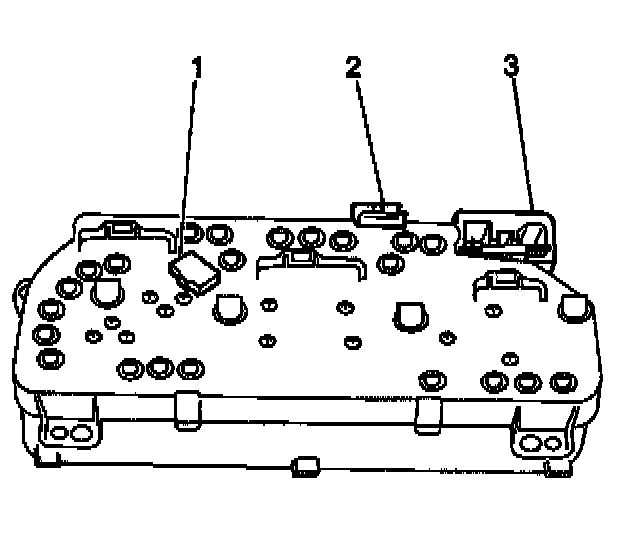

REMOVAL PROCEDURE





1. Remove the Instrument Cluster Assembly (2).
2. Remove the Lamp Driver Module (LDM) (1) from the printed circuit.

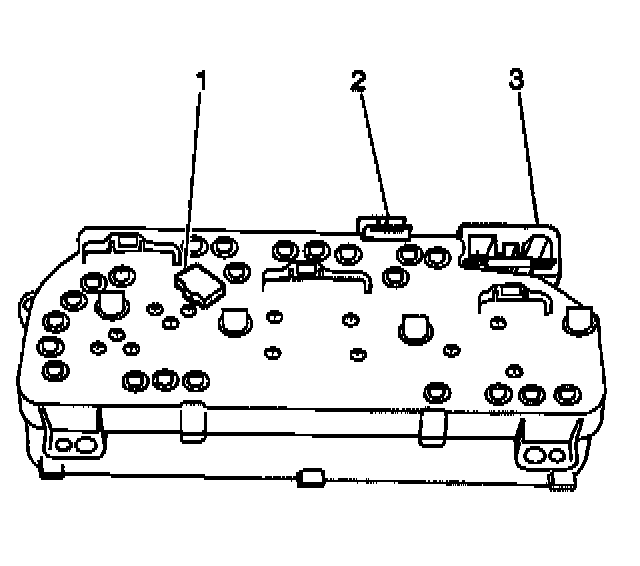

INSTALLATION PROCEDURE





1. Install the LDM (1) to the printed circuit.
2. Install the Instrument Cluster Assembly (2).
3. Perform A Diagnostic System Check - ABS.
