B1012

Circuit Description
When you first turn the ignition switch to the RUN position, the Inflatable Restraint Sensing and Diagnostic Module (SDM) performs tests to diagnose critical malfunctions within itself. Next the SDM measures IGNITION voltage to make sure it is within its respective normal voltage range. Then the SDM proceeds with the DEPLOYMENT LOOP CONTINUITY test. During the DEPLOYMENT LOOP CONTINUITY test, the SDM measures the voltage difference between Driver Side High and Driver Side Low.

Conditions for Setting the DTC
^ The driver side air bag deployment loop resistance is more than 500 ohms.
^ The malfunction must be present for at least 500 milliseconds during one of the following tests:
- DEPLOYMENT LOOP CONTINUITY
If the malfunction is detected in this test, the RESISTANCE MEASUREMENT test will not be performed.
- CONTINUOUS MONITORING

Action Taken When the DTC Sets
^ The SDM sets a DTC B1012.
^ The SDM turns ON the AIR BAG warning lamp.

Conditions for Clearing the DTC
^ Current DTC
The driver side air bag deployment loop resistance is less than 100 ohms for 500 milliseconds.
^ History DTC
- You issue a scan tool CLEAR CODES command.
- Once 250 malfunction free ignition cycles have occurred.

Diagnostic Aids
A poor connection can cause an intermittent condition. Check the following for a poor connection:
^ The Inflatable Restraint driver seat module wiring harness connector terminal A and terminal B.
^ The SDM wiring harness connector terminal 10 and terminal 11.
^ An open in circuit 2137.
^ An open in circuit 2138.

When measurements are requested in this table, use J 39200 Digital Multimeter with the correct terminal adapter from J 35616-A Connector Test Adapter kit. When a check for proper connection is requested, refer to intermittents and Poor Connections. When a wire, connector or terminal repair is requested, use J 38125-B Terminal Repair Kit and refer to Wiring Repair. Intermittents and Poor Connections

Test Description
The numbers below refer to the step numbers on the diagnostic table:

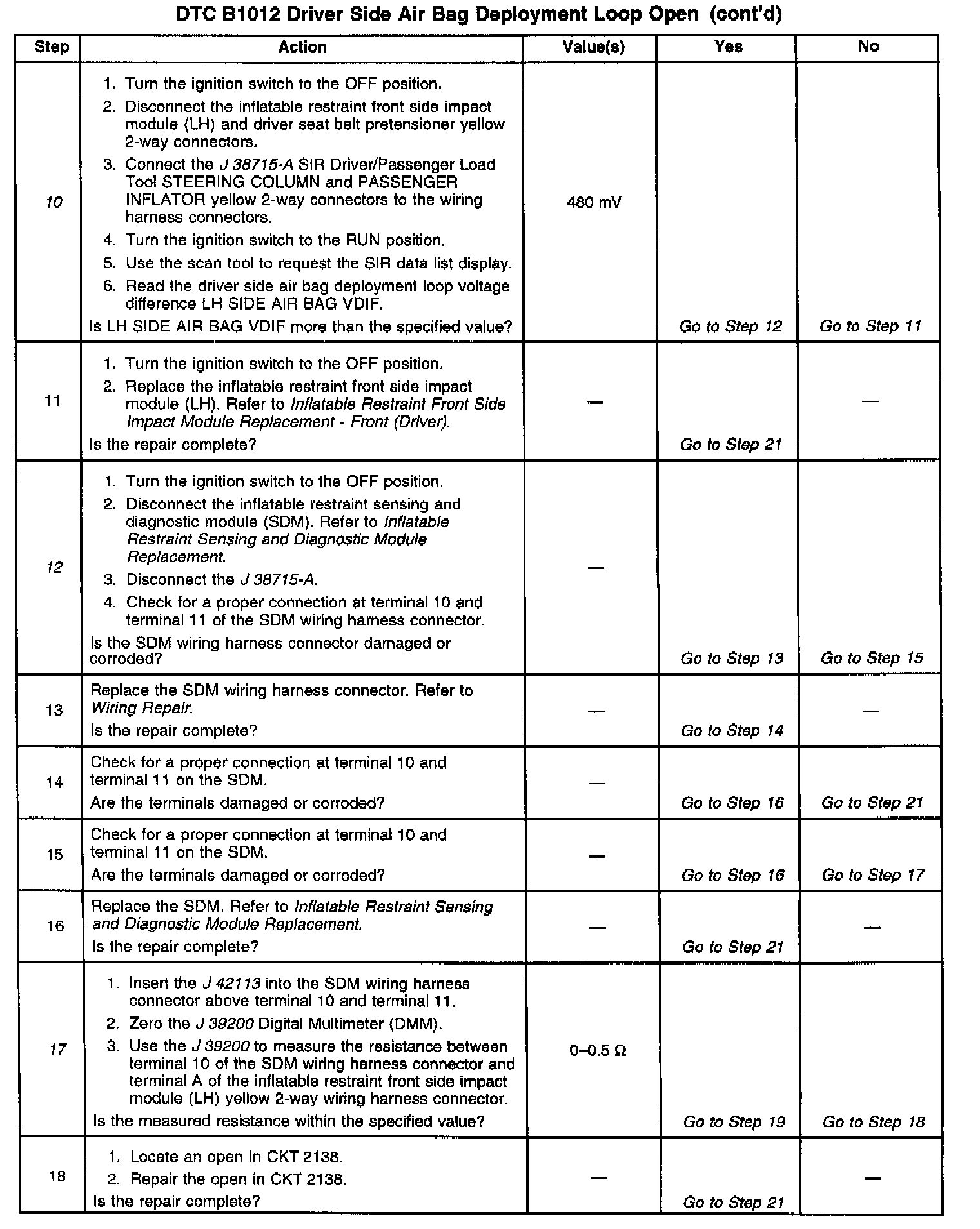

3. This step checks the Inflatable Restraint front side impact module (LH) yellow 2-way wiring harness connector for corrosion or damaged terminals.
10. This step isolates the malfunction to one side of the Inflatable Restraint front side impact module (LH) yellow 2-way connector.
12. This step checks the SDM wiring harness connector for corrosion or damaged terminals.
17. This step checks to see if there is an open in circuit 2138.
19. This step determines if there is an open in circuit 2137 or if there is a malfunctioning SDM.
