Cross Vehicle Beam Replacement




REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Remove the instrument panel.
3. Remove the body control module.
4. Remove the DRL module.
5. Remove the EBTCM module.
6. Remove the extension ducts.
7. Remove the center air outlet.
8. Remove the defroster duct.
9. Remove the steering column support bracket retaining bolts/screws.
10. Remove the steering column support bracket from the cross car beam.

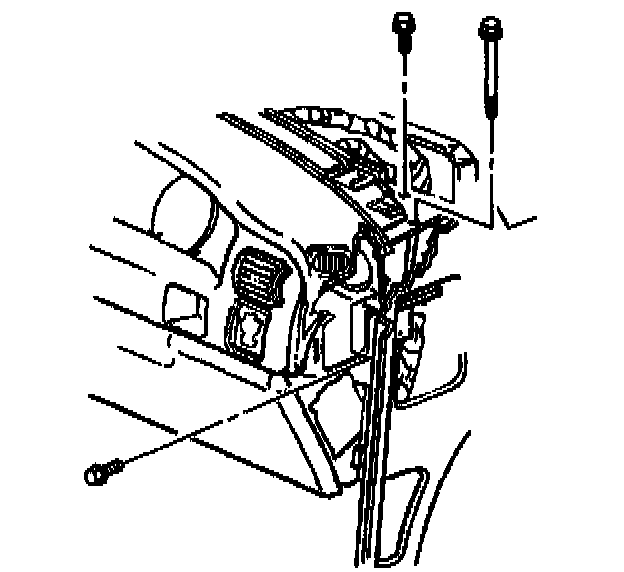

11. Remove the bolts/screws from the cross car beam to the body.
12. Re-route the wiring harness from the cross car beam.
13. Remove the A/C module.
14. Remove the cross car beam from the body.

INSTALLATION PROCEDURE
1. Position the cross car beam to the body.
2. Install the A/C module.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the bolts/screws to the cross car beam to body.

Tighten
Tighten the bolts/screws to 25 N.m (18 lb ft).

4. Install the wiring harness to the cross car beam.
5. Install the steering column support bracket to the cross car beam.
6. Install the steering column support bracket retaining bolts/screws.

Tighten
Tighten the retaining bolts/screws to 25 N.m (18 lb ft).

7. Install the defroster duct.
8. Install the center air outlet.
9. Install the extension ducts.
10. Install the EBTCM module.
11. Install the DRL module.
12. Install the body control module.
13. Install the instrument panel.
14. Disconnect the negative battery cable.
