Home
>>
Chevy Truck
>>
1999
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electrical Accessory Panel
Electrical Accessory Panel

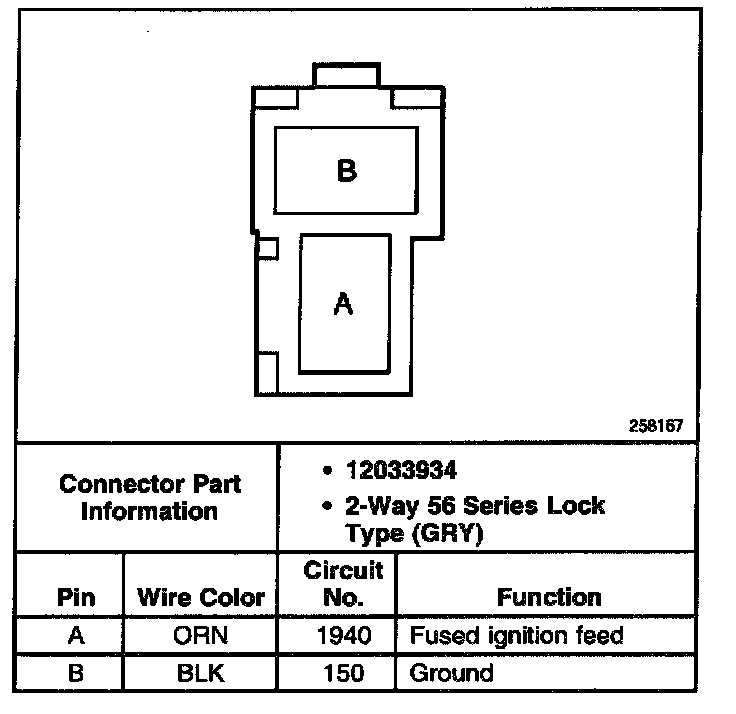

Front Electric Accessory Plug Housing:
Rear Electric Accessory Plug Housing:
