Home >> Chevy Truck >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems

Transmission Control Systems

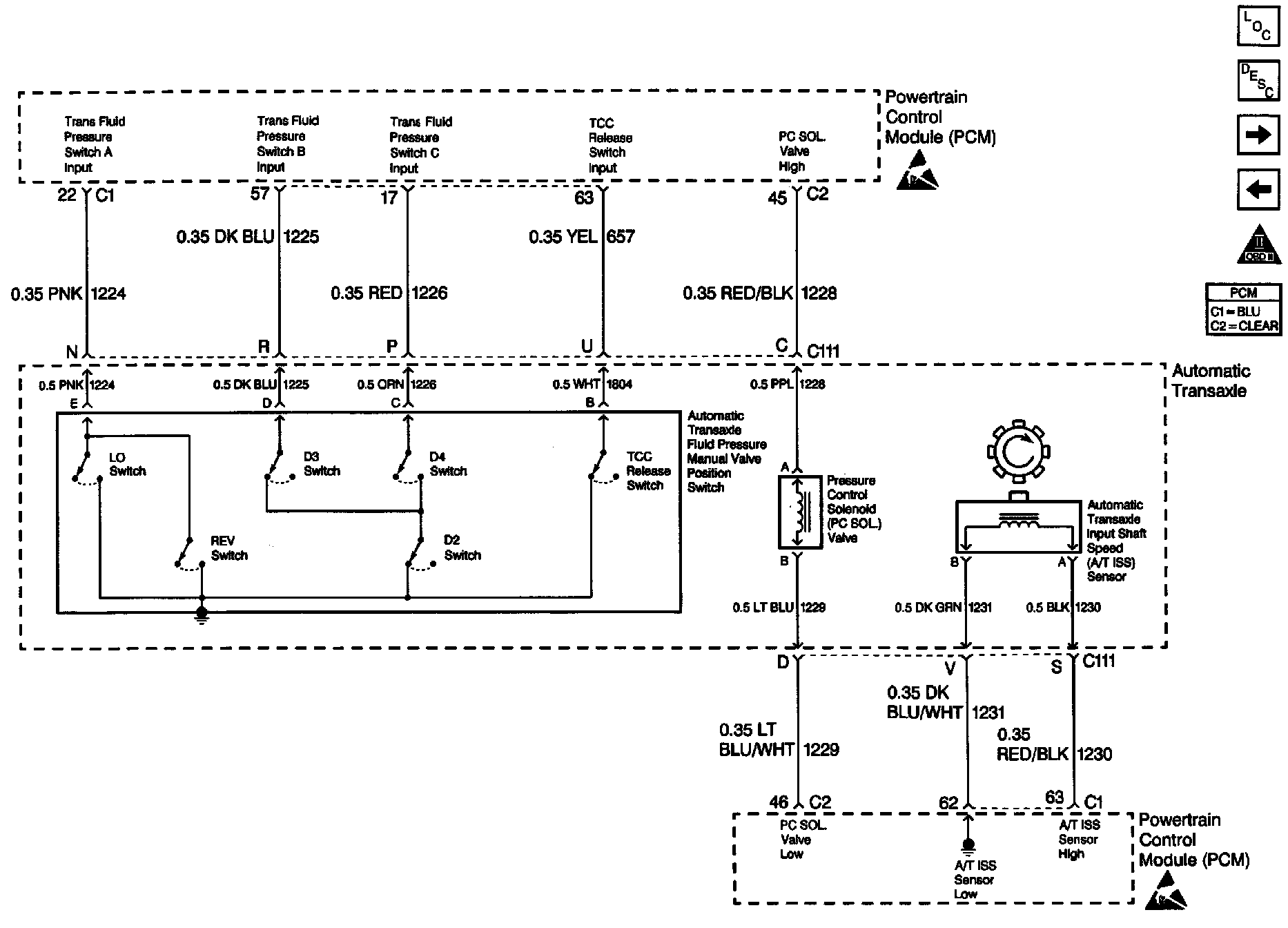

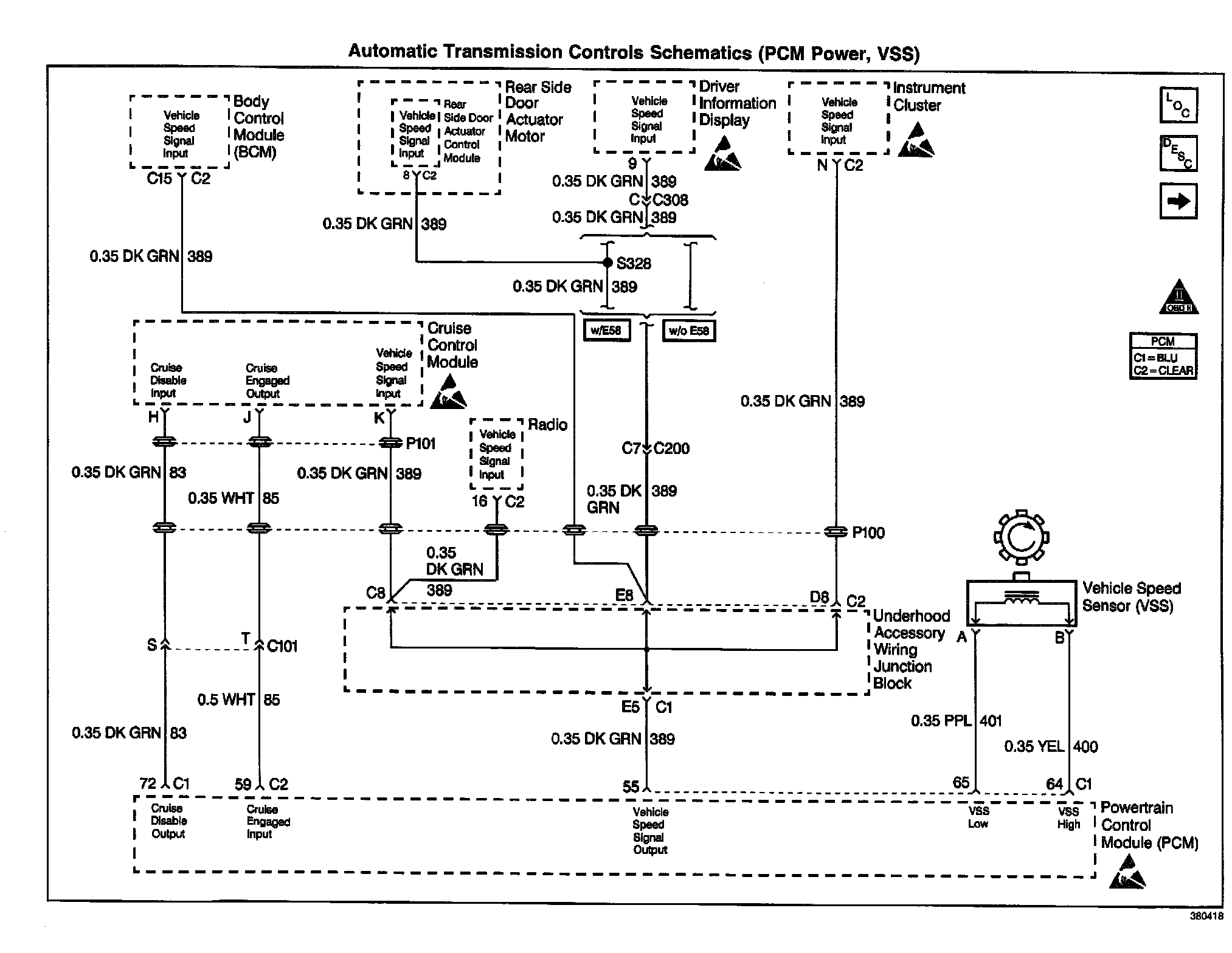

Automatic Transmission Controls Schematics (PCM Power, VSS)






Automatic Transmission Controls Schematics (Automatic Transaxle TCC Switch (1 of 2))






Automatic Transmission Controls Schematics (Automatic Transaxle TCC Switch (2 of 2))






Automatic Transmission Controls Schematics (Transaxle Range Switch (1 of 2))






Automatic Transmission Controls Schematics (Transaxle Range Switch (2 of 2))
