Emission Control Systems
Emission Control Systems
Emission House Routing Diagram:

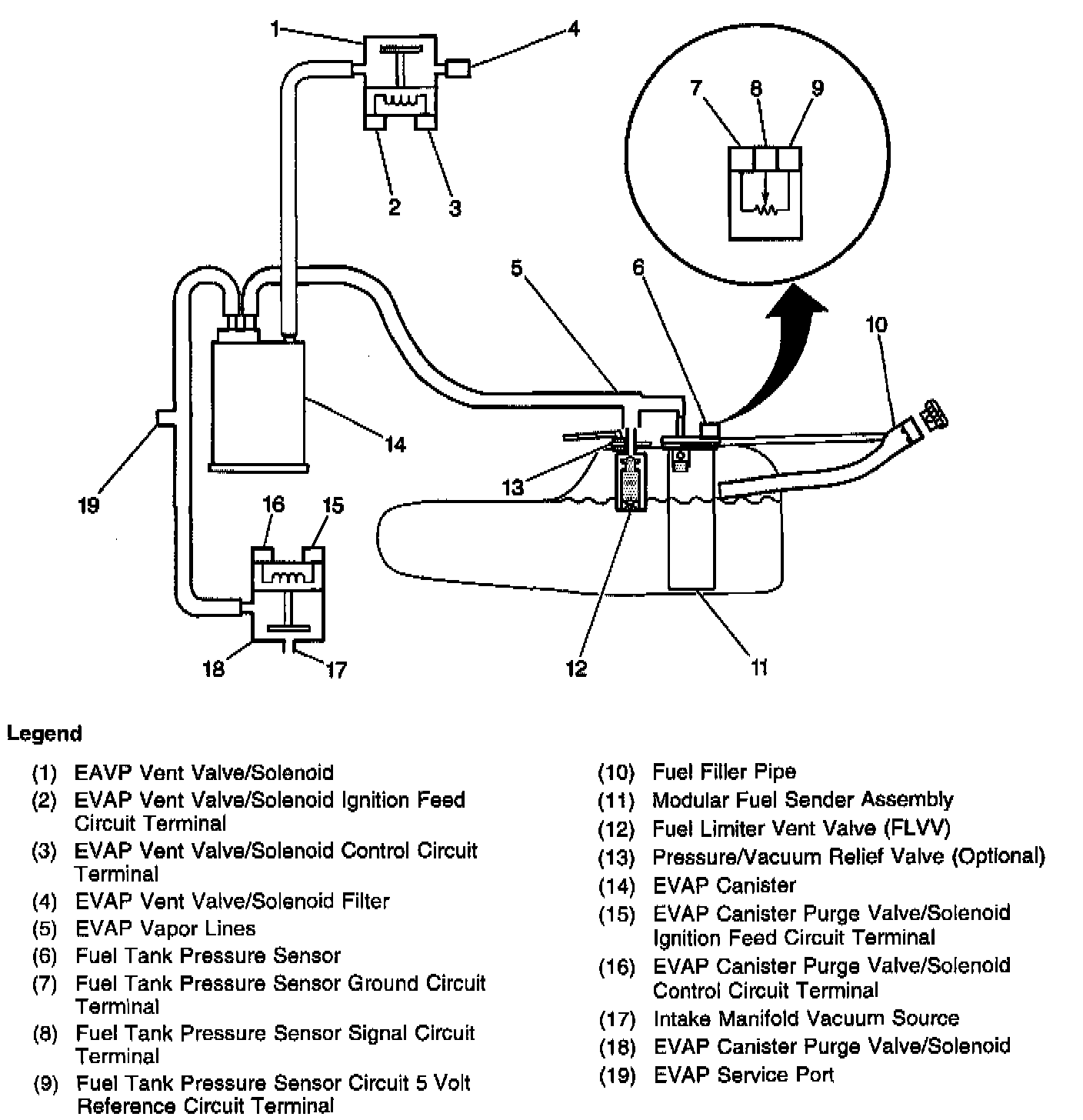

Emission Hose Routing Diagram (EVAP Control System Overview):
