Initial Inspection and Diagnostic Overview

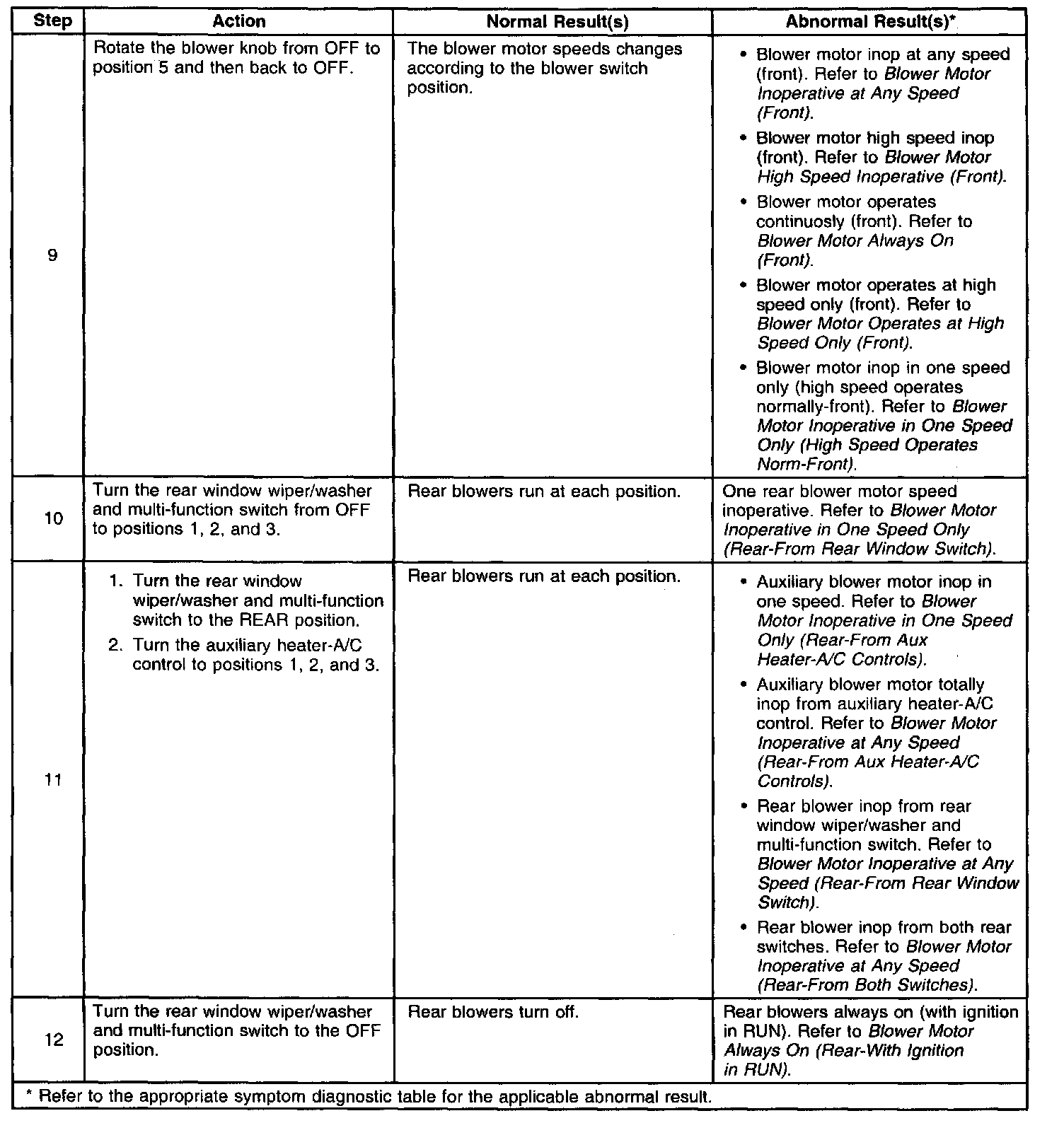

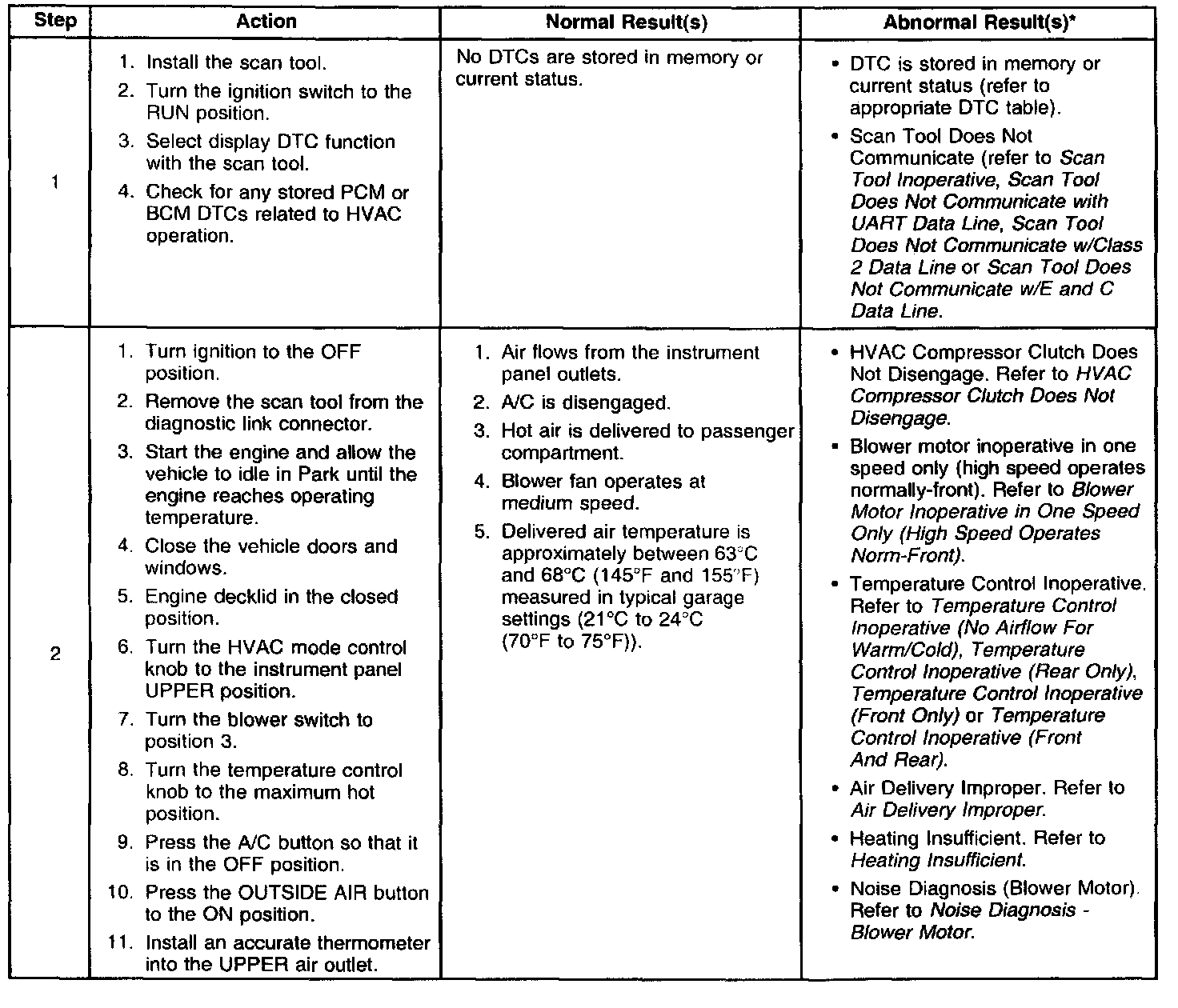

HVAC System Check (Part 1 Of 5):




HVAC System Check (Part 2 Of 5):




HVAC System Check (Part 3 Of 5):




HVAC System Check (Part 4 Of 5):




HVAC System Check (Part 5 Of 5):
