Horn: Service and Repair

REMOVAL PROCEDURE
1. Remove the park/turn signal/side marker lamp.
2. Remove the headlamp.

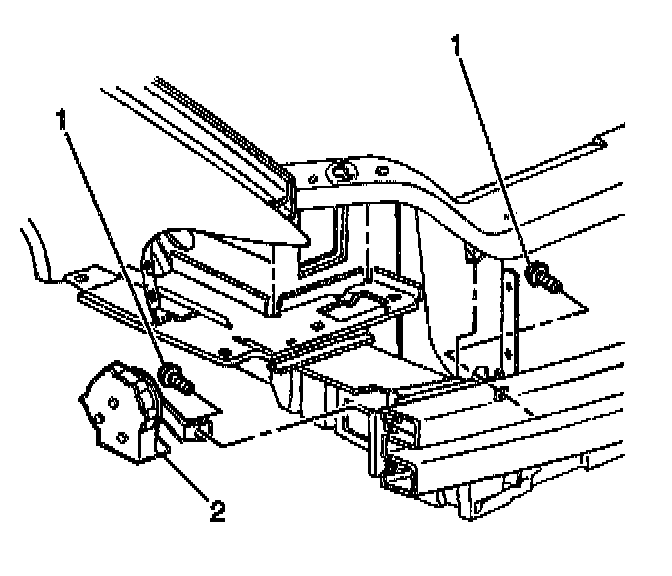

3. Remove the bolts/screws (1) from the horn (2) bracket.
4. Disconnect the electrical connectors.

INSTALLATION PROCEDURE
1. Connect the electrical connector.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts/screws (1) to the horn (2) bracket.

Tighten
Tighten the bolts/screws to 25 N.m (18 lb ft).

3. Install the headlamp.
4. Install the park/turn signal/side marker lamp.
