Harness Locations

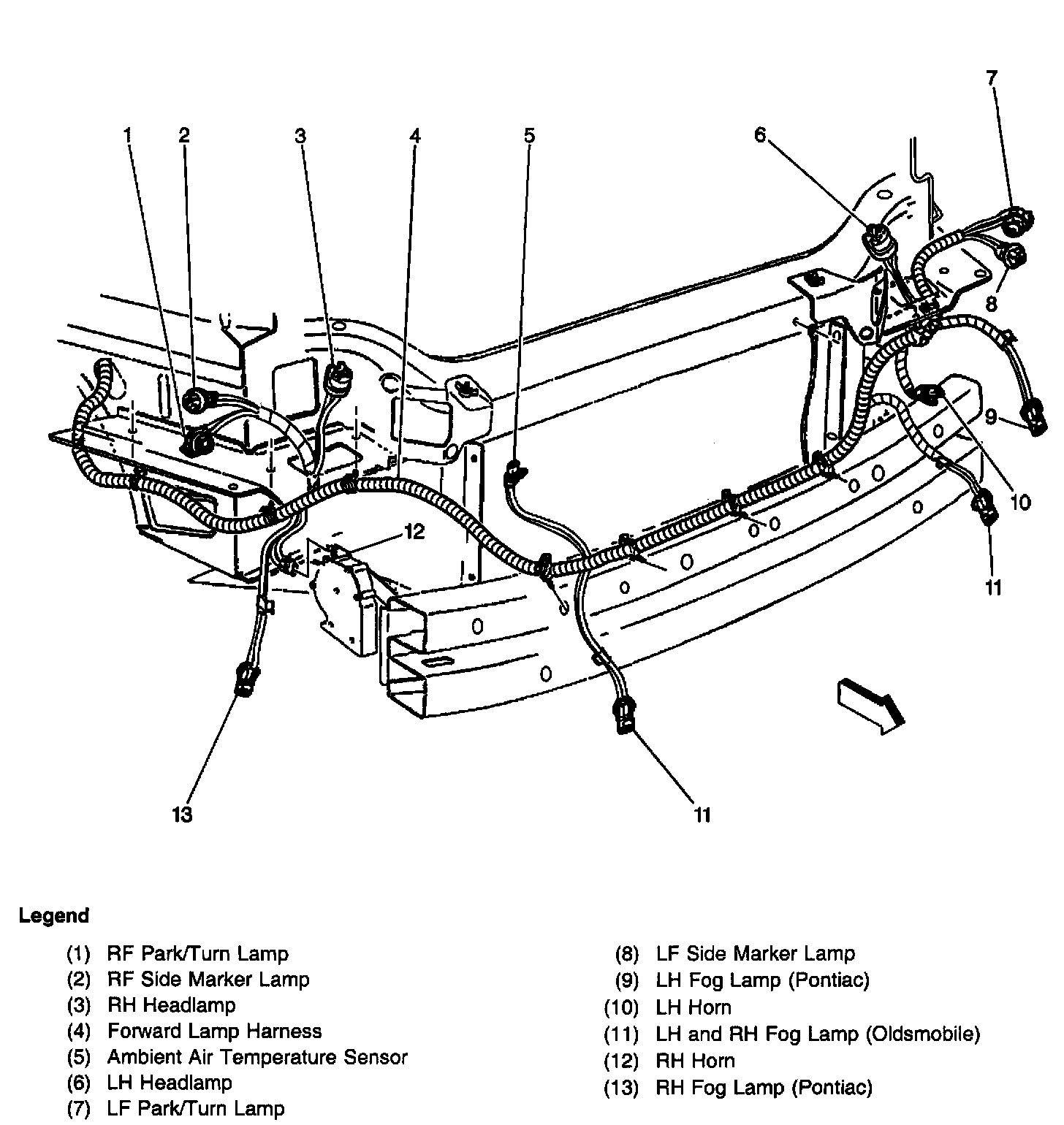

Front Of Vehicle:

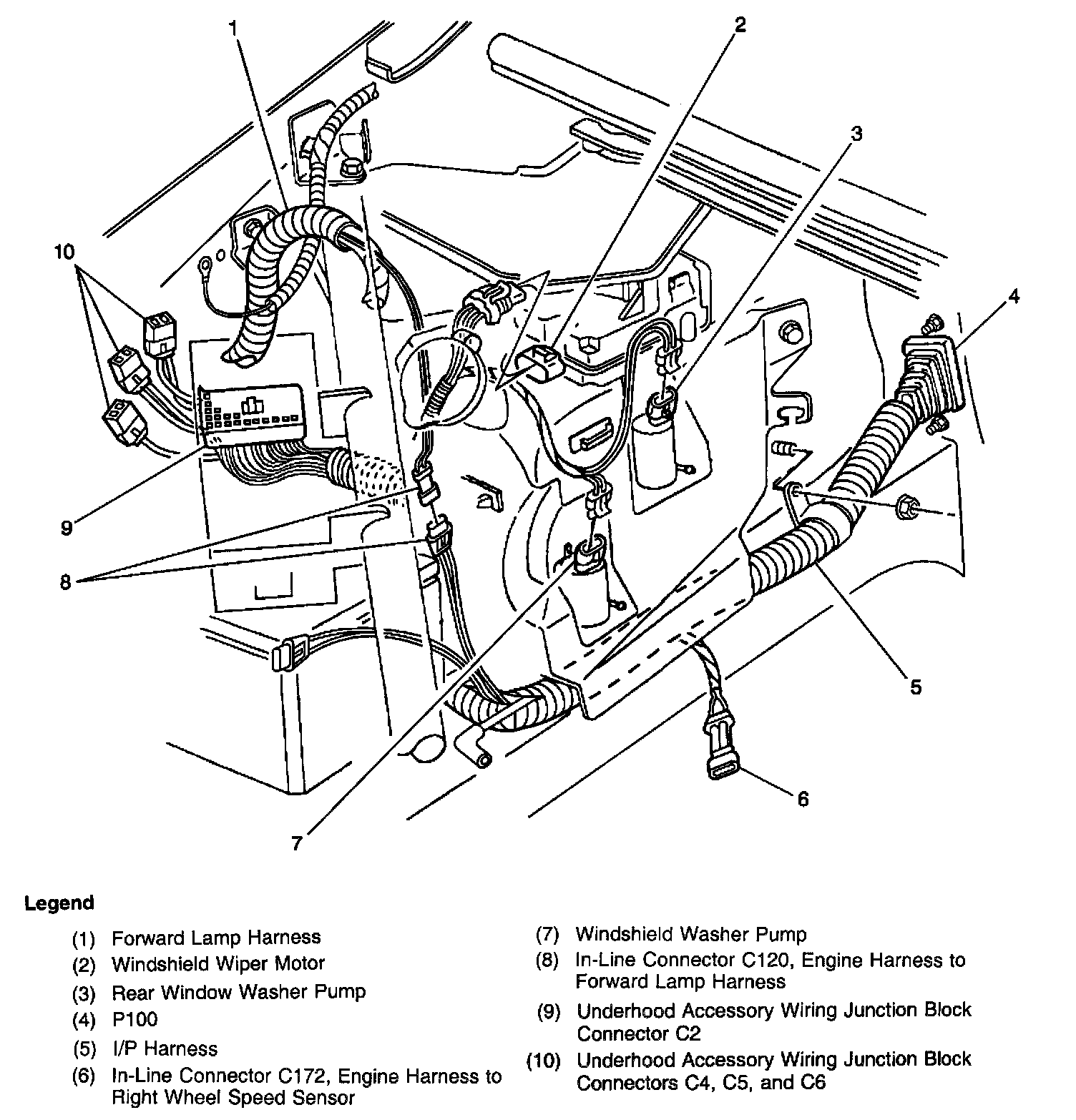

Front Of Vehicle, RH Side Of Radiator:

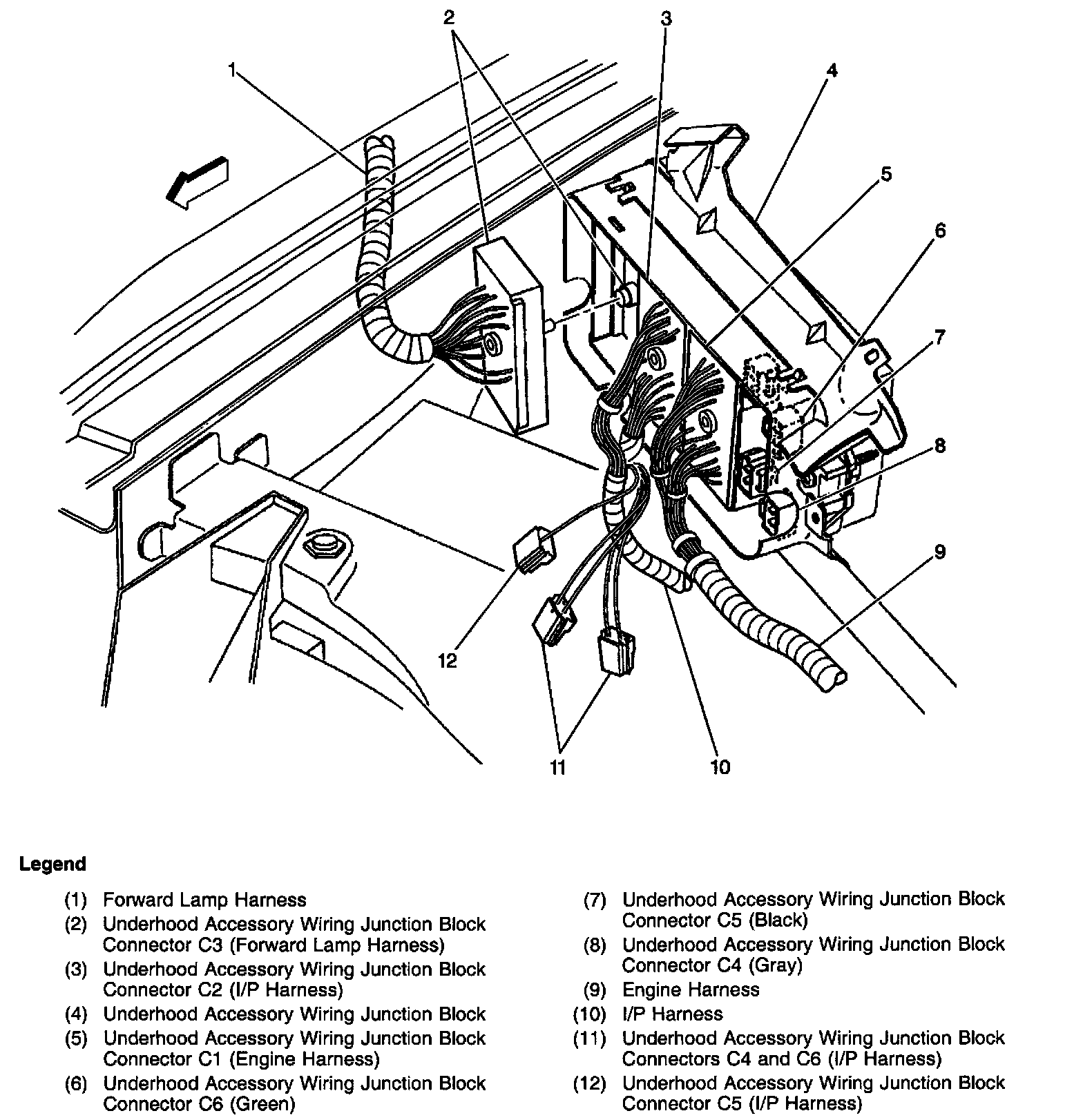

Underhood Accessory Wiring Junction Block, Top Right Side Of Engine Compartment:




Rear, Left Side Of Engine Compartment:
