CPP Switch, Stoplamp Switch, Auto Trans Solenoids

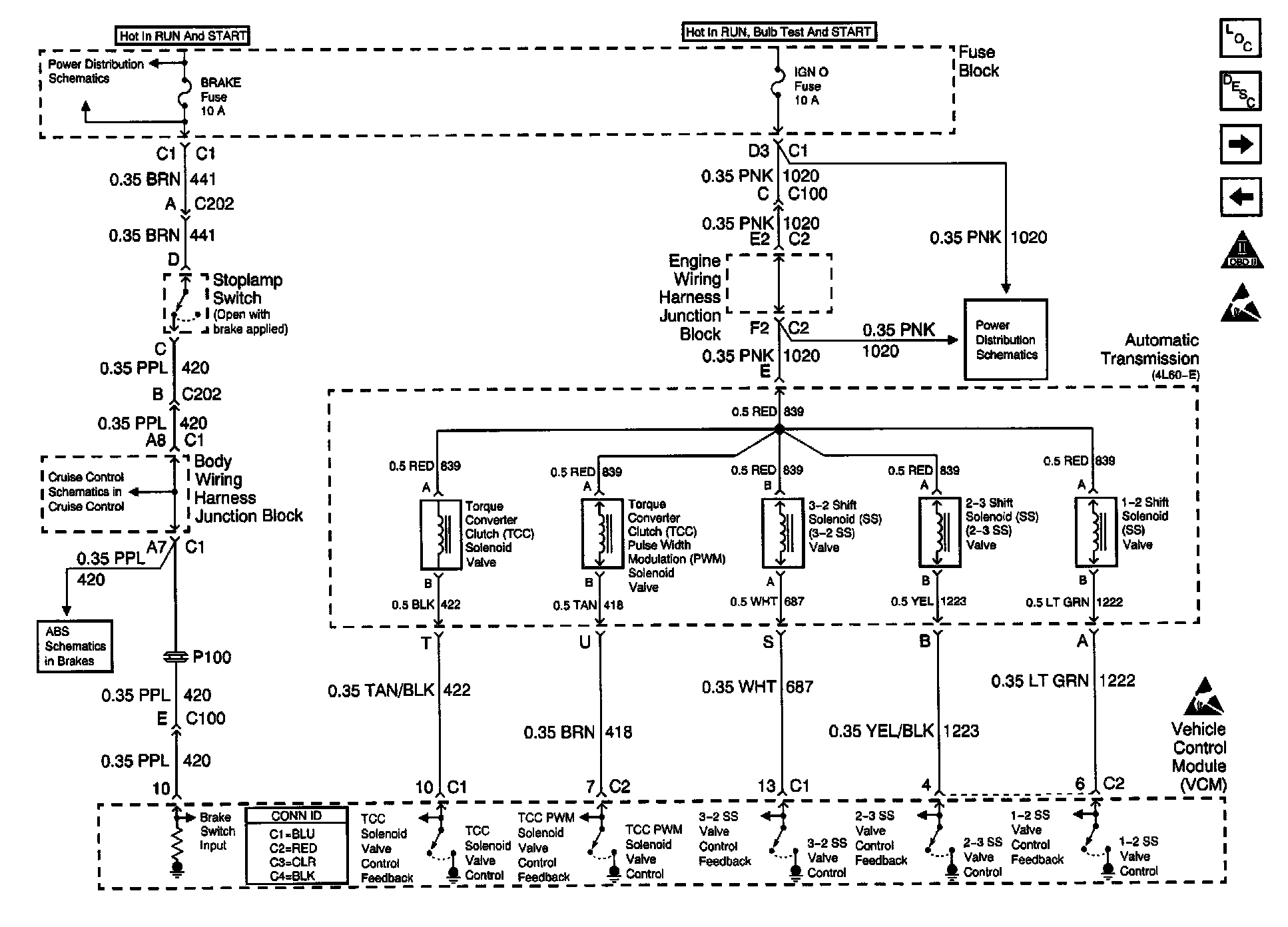

Engine Controls Schematics: CPP Switch, Stoplamp Switch, Auto Trans Solenoids:
