B3137

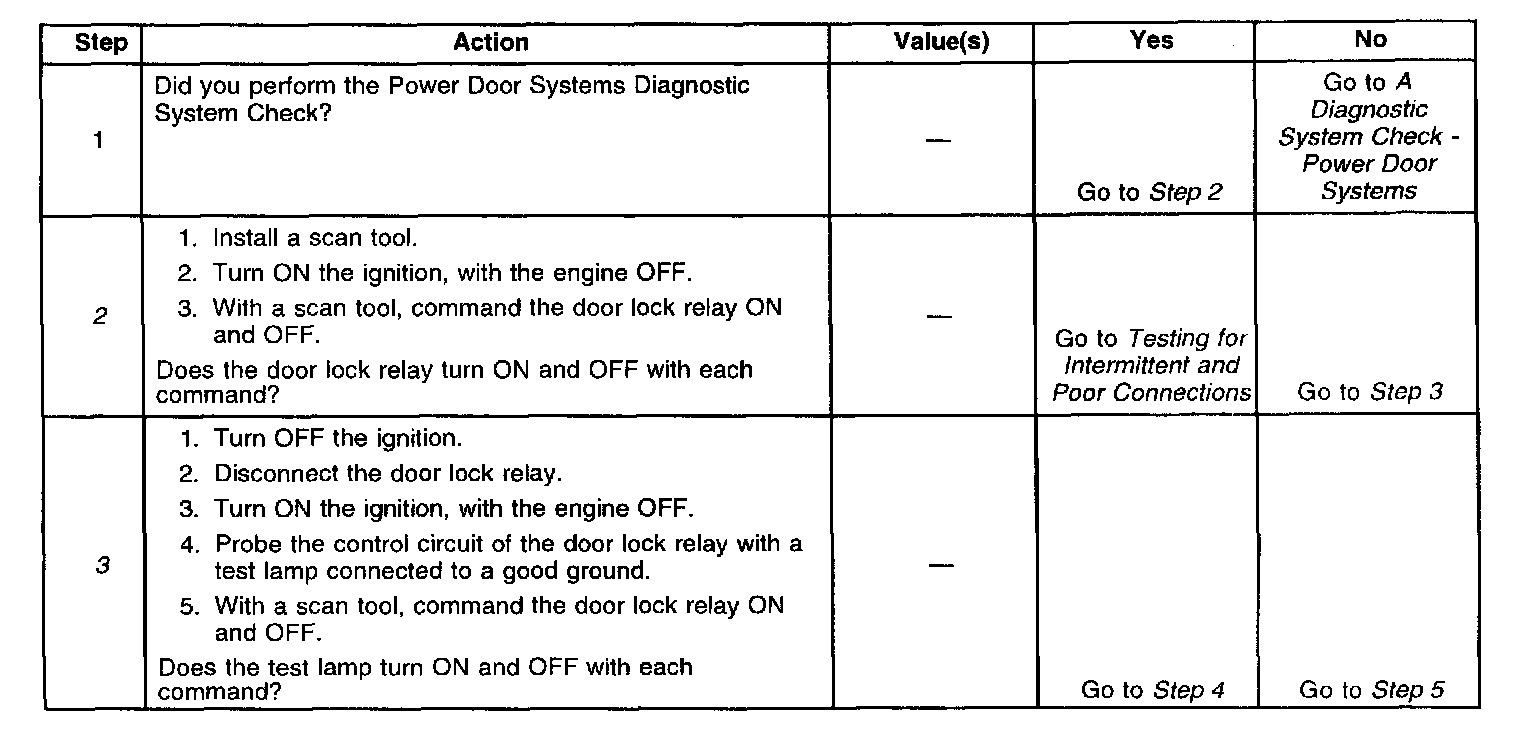

Diagnostic Chart (Part 1 Of 2):

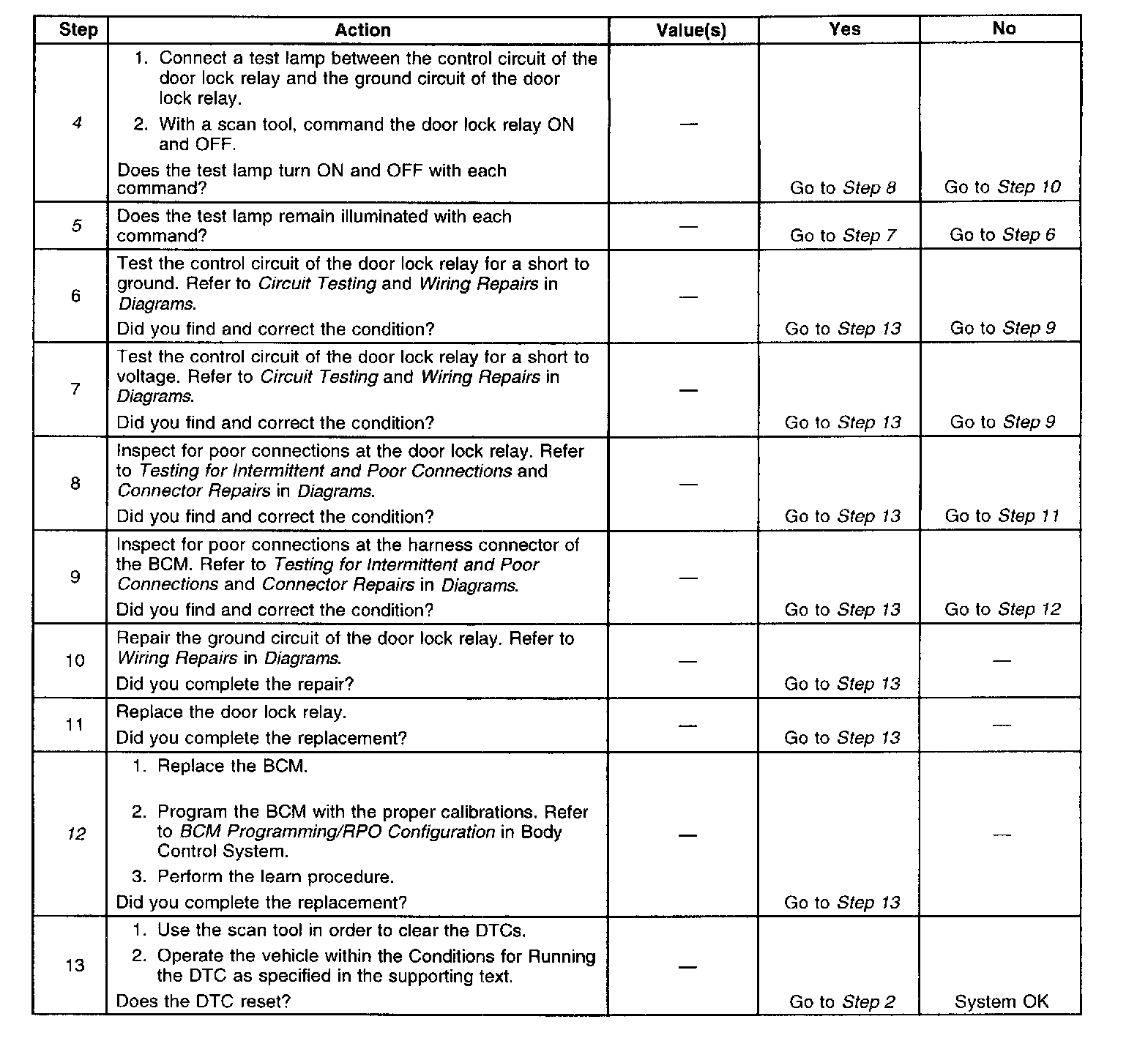

Diagnostic Chart (Part 2 Of 2):

For a full page schematic, refer to Door Lock/Indicator Schematics.

CIRCUIT DESCRIPTION
The body control module (BCM) monitors and supplies an output on the door lock control circuit. When the BCM receives a LOCK command from the remote control door lock receiver or an automatic door lock function has been activated, the BCM supplies voltage on the door lock control circuit to LOCK the doors.

CONDITIONS FOR RUNNING THE DTC
^ The system voltage must be between 9.0 and 16.0 volts.
^ The BCM supplies a voltage signal on the door lock control circuit.

CONDITIONS FOR SETTING THE DTC
^ When the BCM supplies a voltage signal on the door lock control circuit and the door lock control circuit is shorted to ground.
^ The above conditions must be met for 250 milliseconds.

ACTION TAKEN WHEN THE DTC SETS
^ The door lock system will not LOCK the doors from the keyless entry transmitter.
^ The automatic door locks will not operate.
^ The door lock switches will not LOCK the doors.

CONDITIONS FOR CLEARING THE DTC
^ A current DTC will clear after the next fault free ignition cycle.
^ A history DTC will clear after 100 consecutive ignition cycles without a fault present.

DIAGNOSTIC AIDS
^ Always begin diagnosis with the first DTC listed on the scan tool.
^ Perform a visual inspection for loose or poor connections at all related components.

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
2. Listen for an audible click when the door lock relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
3. Verifies that the Body Control Module (BCM) is providing voltage to the door lock relay.
4. Tests for an open in the ground circuit to the door lock relay.
5. Tests if voltage is constantly being applied to the door lock relay.
12. After replacement of the BCM you must calibrate the new module for proper operation.
