C0551

Circuit Description
The suspension control module performs internal checks on the software (calibrations) contained in the EEPROM to ensure valid operation.


Conditions for Running the DTC
Upon key on and reset.


Conditions for Setting the DTC
The suspension control module detects internal problems with software (calibrations).


Action Taken When the DTC Sets
^ Disable all functions, (EVO, Rear Leveling and RTD)
^ The SERVICE RIDE CONTROL message will be displayed.
^ DTC C0551 will be set.


Conditions for Clearing the MIL/DTC
The cause of the malfunction is not present upon the next key on cycle. Using the scan tool.


Diagnostic Aids
Calibrate the suspension control module twice before replacement and cycle the ignition off and on to see if the DTC C0551 resets.
The replacement suspension control module must be calibrated when replacement is necessary.

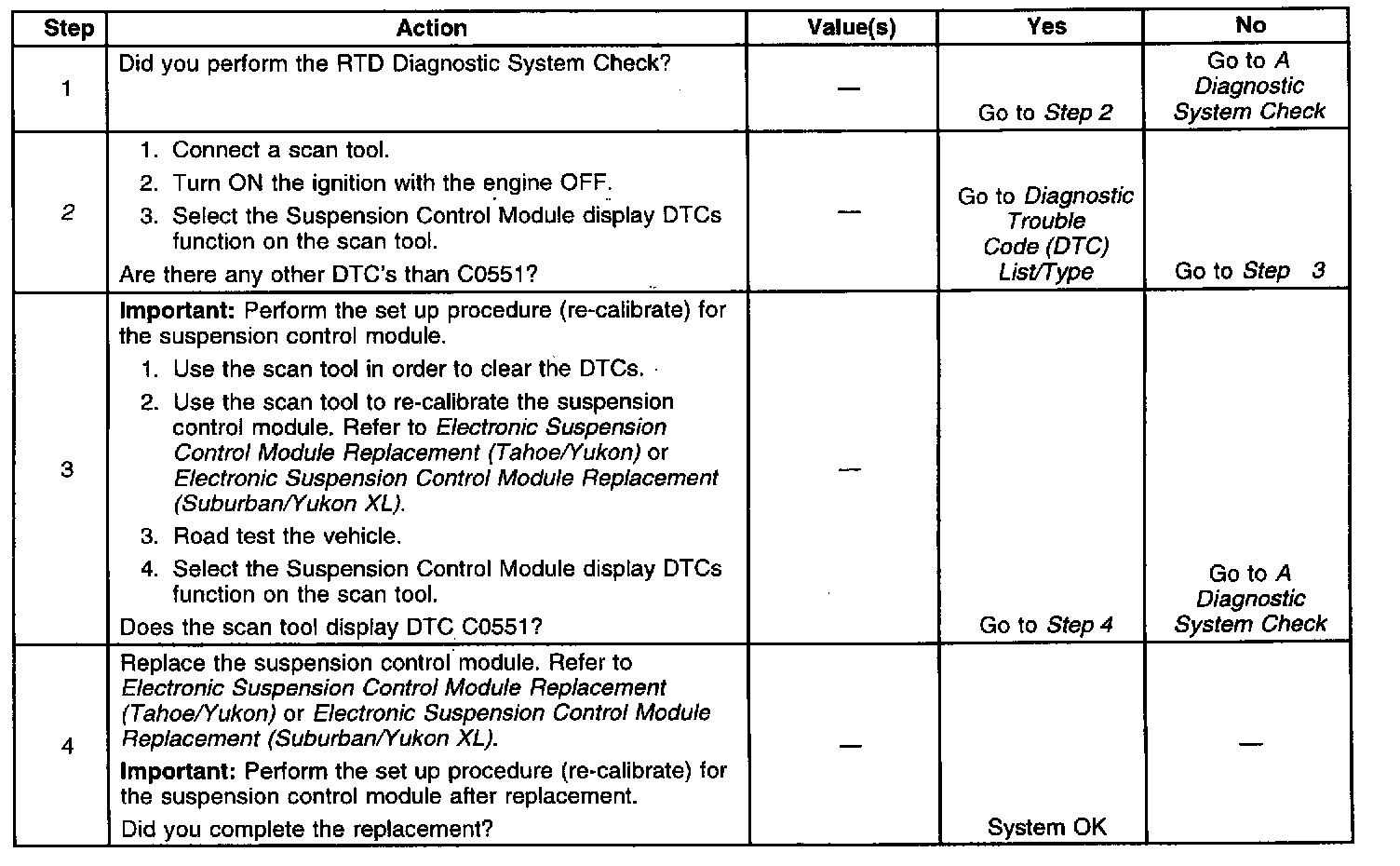

Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
2. Checks for other stored DTC's
3. Checks to determine if DTC C0551 will re-set.
