P0332

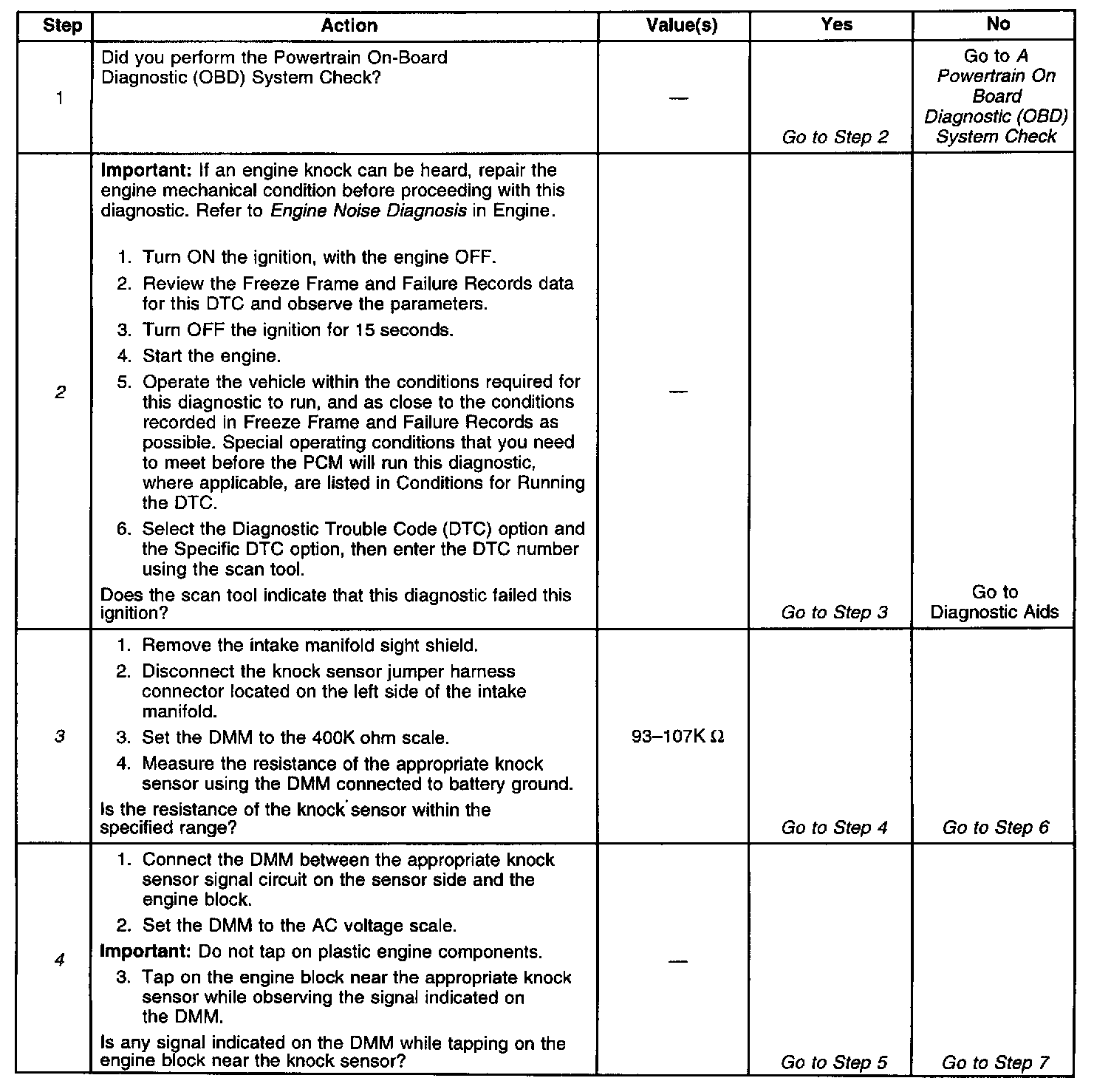

Diagnostic Chart (Part 1 Of 2):

Diagnostic Chart (Part 2 Of 2):

Schematic:

CIRCUIT DESCRIPTION
The Knock Sensor (KS) system detects engine pre-detonation. The Powertrain Control Module (PCM) retards the spark timing based on the signals from the knock sensors. The knock sensors produce an AC voltage when specific frequencies are detected. The knock sensor voltages are an input to the PCM. The amount of AC voltage produced is proportional to the intensity of the knock.

An operating engine produces a normal amount of engine mechanical vibration. The knock sensors produce an AC voltage signal from this noise. When an engine operates, the PCM learns the minimum and maximum frequency of the noise that the engine produces. When the PCM determines that this frequency is less than or more than the expected amount, a knock sensor Diagnostic Trouble Code (DTC) sets.

CONDITIONS FOR RUNNING THE DTC
^ The engine speed is between 1,500 RPM and 3,000 RPM.
^ The MAP is less than 44 kPa.
^ The Engine Coolant Temperature (ECT) is more than 60°C (140°F).
^ The throttle angle is more than 0.5 percent.
^ The engine run time is more than 20 seconds.

CONDITIONS FOR SETTING THE DTC
The PCM determines that this frequency is less than or more than the expected amount for less than 3 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM illuminates the Malfunction Indicator Lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The PCM turns OFF the Malfunction Indicator Lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A last test failed, or current DTC, clears when the diagnostic runs and does not fail.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Use a scan tool in order to clear the MIL and the DTC.

DIAGNOSTIC AIDS

IMPORTANT: Remove any debris from the PCM connector surfaces before servicing the PCM. Inspect the PCM connector gaskets when diagnosing or replacing the PCM. Ensure that the gaskets are installed correctly. The gaskets prevent water intrusion into the PCM.

Check the knock sensor for proper installation. A knock sensor that is loose or over torqued may cause the DTC P0332 to set.

If DTCs P0327 and P0332 are set at the same time, inspect for poor connections at the KS harness jumper located at the left side of the intake manifold.

For an intermittent, refer to Symptoms. Symptom Related Diagnostic Procedures

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
2. This verifies the malfunction is present. The scan tool will display DTC Ran=Yes and Pass=Int if the failure is intermittent. This indicates the diagnostic passed this ignition cycle and failed this ignition cycle. At this point the resistance of the knock sensors should be verified to be in the correct range. If the knock sensor resistances are correct, inspect the KS system wiring connections. When inspecting the KS system connections, start at the KS system jumper harness connector located on the left side of the intake manifold. Then inspect the connections at the PCM. Refer to the wiring schematic for the correct connector and terminal. Then inspect the connections at the appropriate knock sensor. Failure Records data does not include the parameter KS activity, however other parameters may aid in locating the conditions under which an intermittent occurred.
3. This test will isolate the knock sensor from the rest of the circuit.
4. Tap on the engine block near the appropriate knock sensor.
