P0430

Diagnostic Chart:

Refer to Engine Controls Schematics PCM, CMP Sensor; CKP Sensor, KS, IPC.

CIRCUIT DESCRIPTION
In order to maintain a reasonably low emissions of Hydrocarbons (HC), Carbon Monoxide (CO), and Oxides Of Nitrogen (NOx), the engine controls system uses a three-way catalytic converter. The catalyst within the converter promotes a chemical reaction which oxidizes the HC and CO present in the exhaust gas. This reaction converts them into harmless water vapor and carbon dioxide. The catalyst also reduces NOx, converting it to nitrogen. The PCM monitors this process using bank 2 Heated Oxygen Sensor (HO2S) 2. bank 2 HO2S 2, located in the exhaust stream past the three-way catalytic converter, produces an output signal which indicates the oxygen storage capacity of the catalyst. This determines the catalysts ability to convert exhaust emissions effectively. If the catalyst is functioning correctly, the bank 2 HO2S 2 signal will be far less active than that produced by bank 2 HO2S 1. This indicates that the three-way catalytic converters oxygen storage capacity is operating at a threshold considered acceptable.

When the conditions for running this DTC are met, the following occurs:
1. The Powertrain Control Module (PCM) captures the current rear HO2S rich or lean status.
2. The air or fuel ratio transitions from rich to lean or lean to rich depending on the capture rear HO2S rich or lean status.
3. The air fuel ratio transitions a second time opposite the first air fuel ratio transition.
4. The PCM captures the response time, the time the HO2S goes from below 300 mV to above 600 mV and from 600 mV to below 300 mV, of the front and rear HO2S when the air fuel ratio transitions occurred.
5. The PCM measures the time it takes the rear HO2S voltage to cross a reference rich or lean threshold minus the time it takes the front HO2S voltage to cross the same rich or lean threshold. The time difference from the front and rear HO2S is the oxygen storage capacity of the catalyst. This DTC sets if the time exceeds a predetermined threshold.

CONDITIONS FOR RUNNING THE DTC
^ No active Mass Air Flow (MAF) DTCs
^ No active Manifold Absolute Pressure (MAP) DTCs
^ No active Intake Air Temperature (IAT) DTCs
^ No active Engine Coolant Temperature (ECT) DTCs
^ No active Throttle Position (TP) DTCs
^ No active Exhaust Gas Recirculation (EGR) DTCs
^ No active Evaporative Emission (EVAP) DTCs
^ No active Vehicle Speed Sensor (VSS) DTCs
^ No active secondary Air Injection (AIR) DTCs
^ No active Crankshaft Position (CKP) sensor DTCs
^ No active Camshaft Position (CMP) sensor DTCs
^ No active Ignition Control (IC) DTCs
^ No active Idle Air Control (IAC) DTCs
^ No active Exhaust Gas Recirculation (EGR) DTCs
^ No active Evaporative Emission (EVAP) DTCs
^ No active misfire DTCs
^ No active Heated Oxygen Sensor (HO2S) DTCs
^ No active fuel trim DTCs
^ No active injector DTCs
^ No active transmission DTCs
^ Engine operating longer than 400 seconds.
^ The ECT is between 80°C (176°F) and 120°C (248°F).
^ The IAT is between -15°C (+5°F) and 75°C (167°F).
^ Engine speed is more than 800 RPM for a minimum of 30 seconds (4.8L, 5.3L) or 40 seconds (6.0L) since the end of the last idle test.
^ The BARO is more than 74 kpa.
^ The fuel system is operating in Closed Loop.

CONDITIONS FOR SETTING THE DTC
The PCM determines the oxygen storage capability of the catalytic converter has degraded below a calibrated threshold.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM illuminates the Malfunction Indicator Lamp (MIL) when the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Freeze Frame and/or Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The PCM turns OFF the Malfunction Indicator Lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A last test failed, or current DTC, clears when the diagnostic runs and does not fail.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Use a scan tool in order to clear the MIL and the DTC.

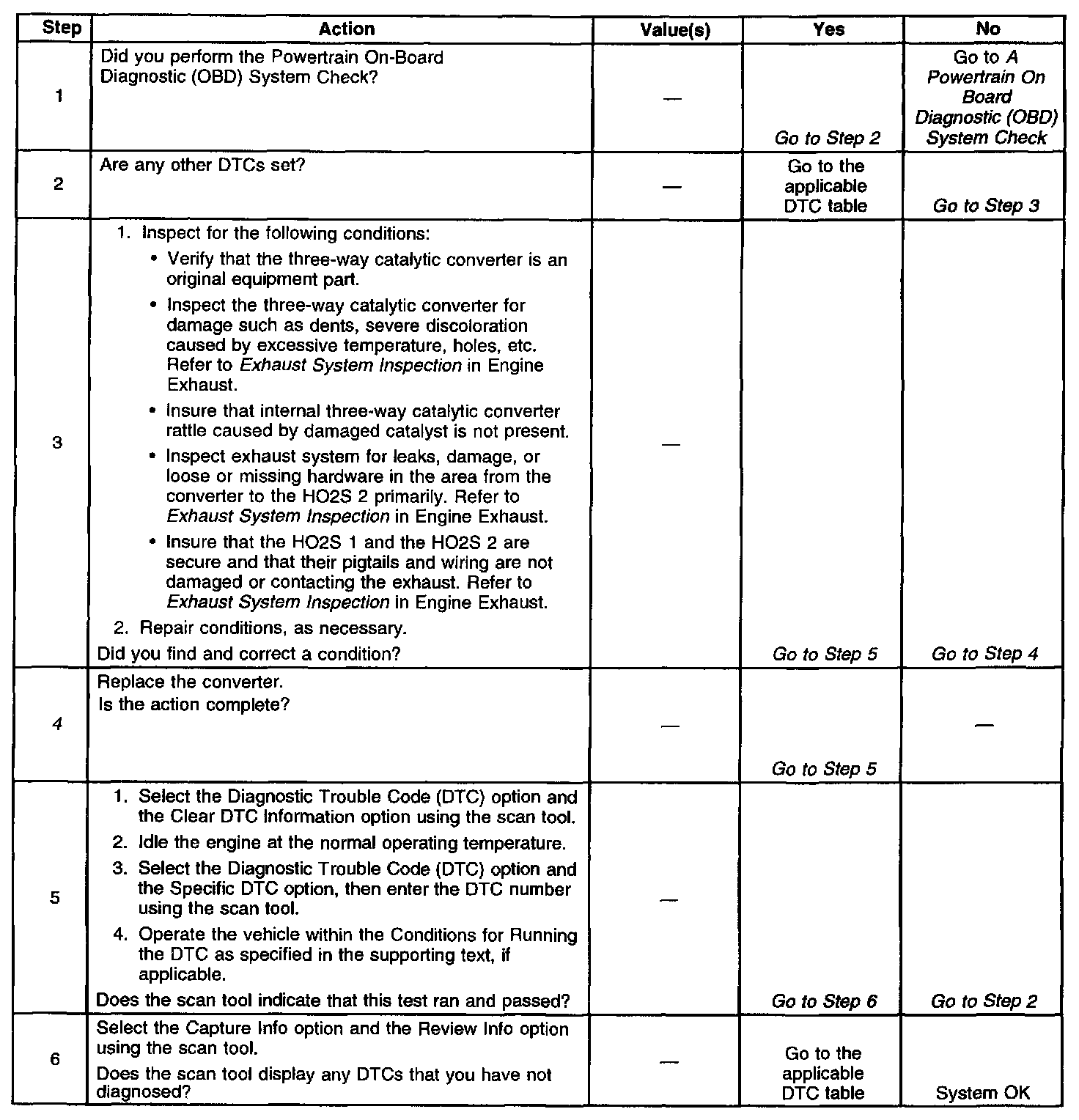

TEST DESCRIPTION
The number below refers to the step number on the diagnostic table.
4. Before replacing the three-way catalytic converter, make sure that any conditions which may have caused the catalyst to be damaged have been corrected.
