Home >> Chevy Truck >> 2000 >> C 2500 Suburban 2WD V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> LR D Pillar Speaker

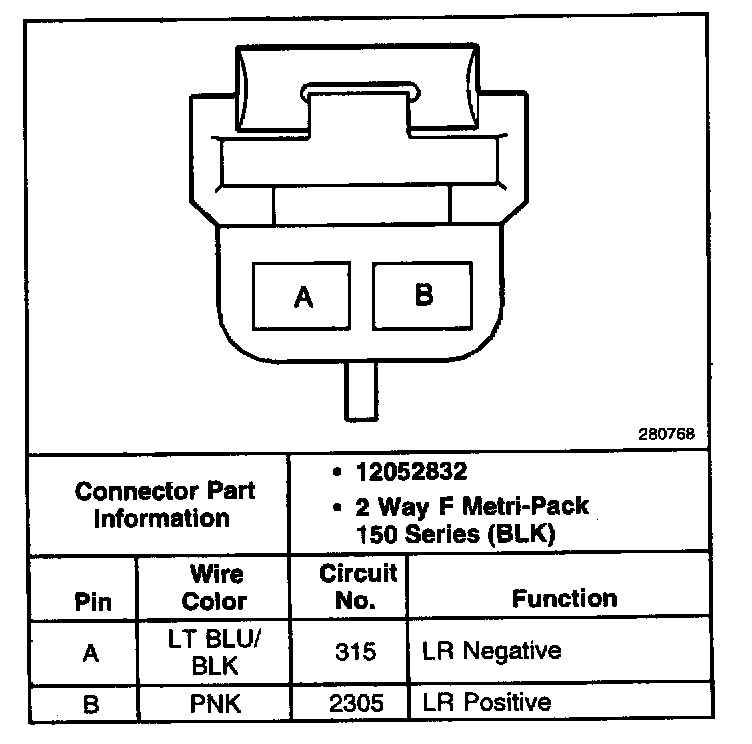

LR D Pillar Speaker

LR D Pillar Speaker:
