Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2000
>>
C 2500 Suburban 2WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ventilation Switch
>>
HVAC Systems - Automatic
HVAC Systems - Automatic

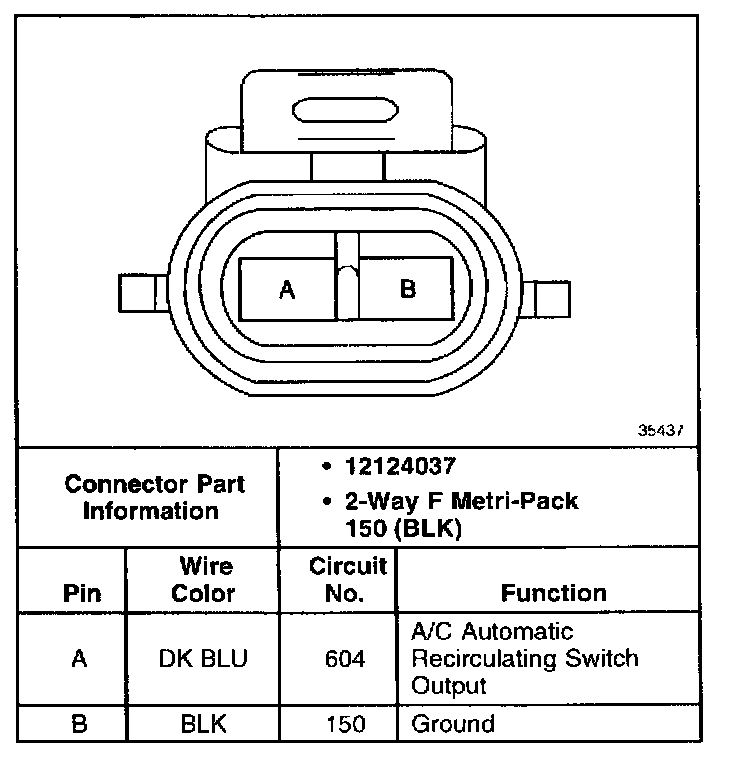

A/C Automatic Recirculating Switch:
