Home >> Chevy Truck >> 2000 >> C 2500 Truck 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Endgate Window Release Inoperative (Luxury)

Endgate Window Release Inoperative (Luxury)

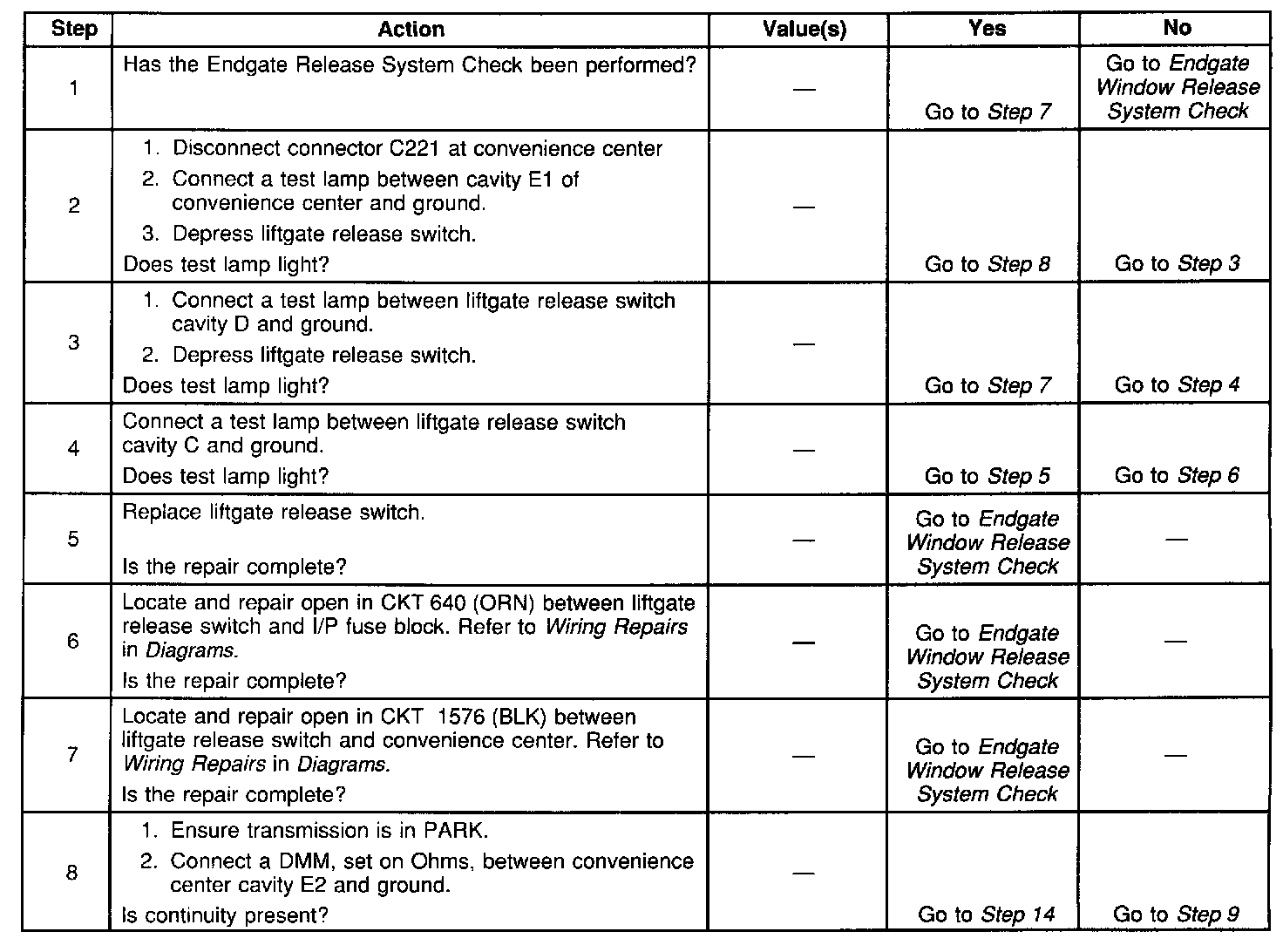

Diagnostic Chart (Part 1 Of 2):

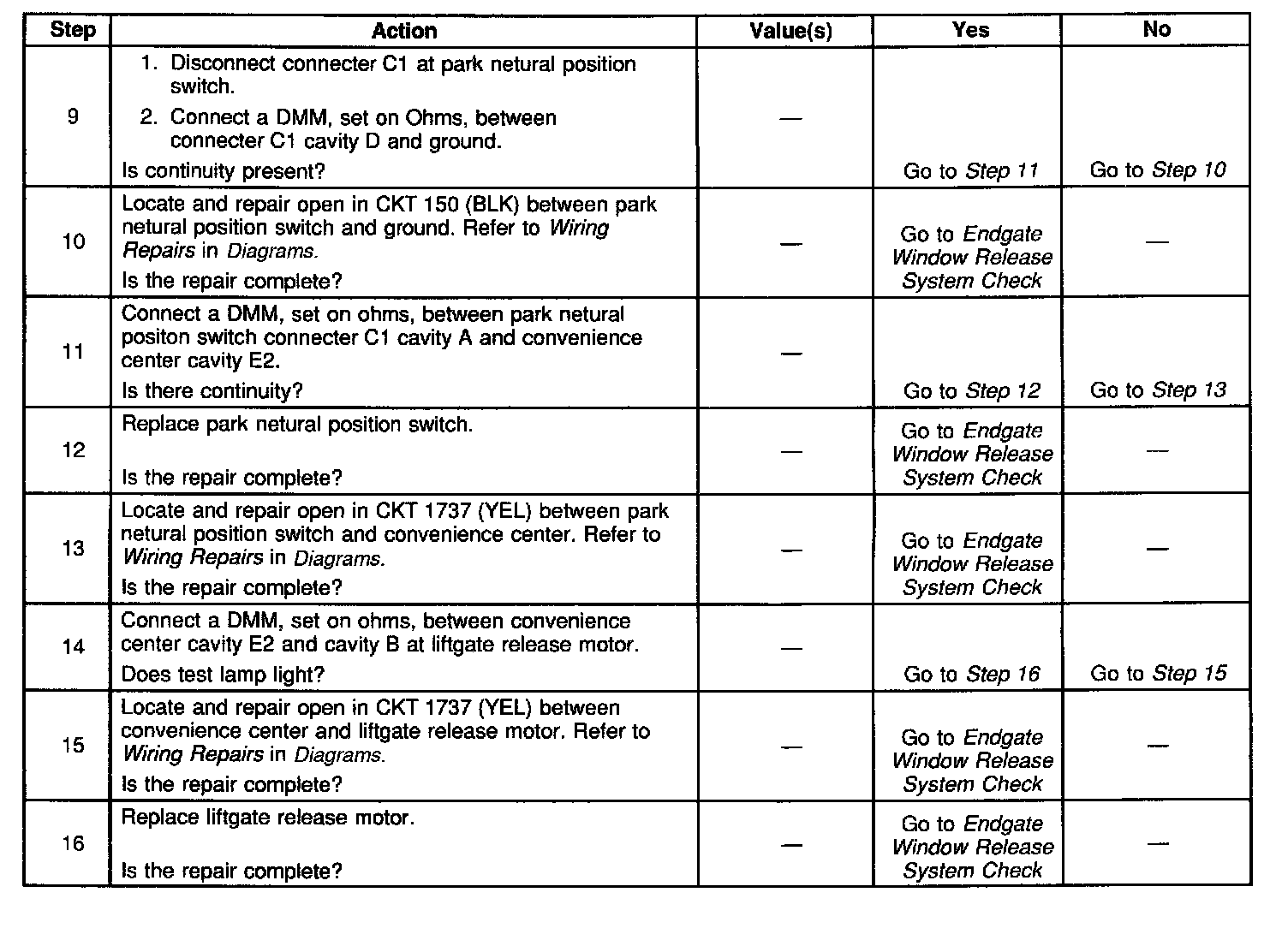

Diagnostic Chart (Part 2 Of 2):
