Water In Fuel Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

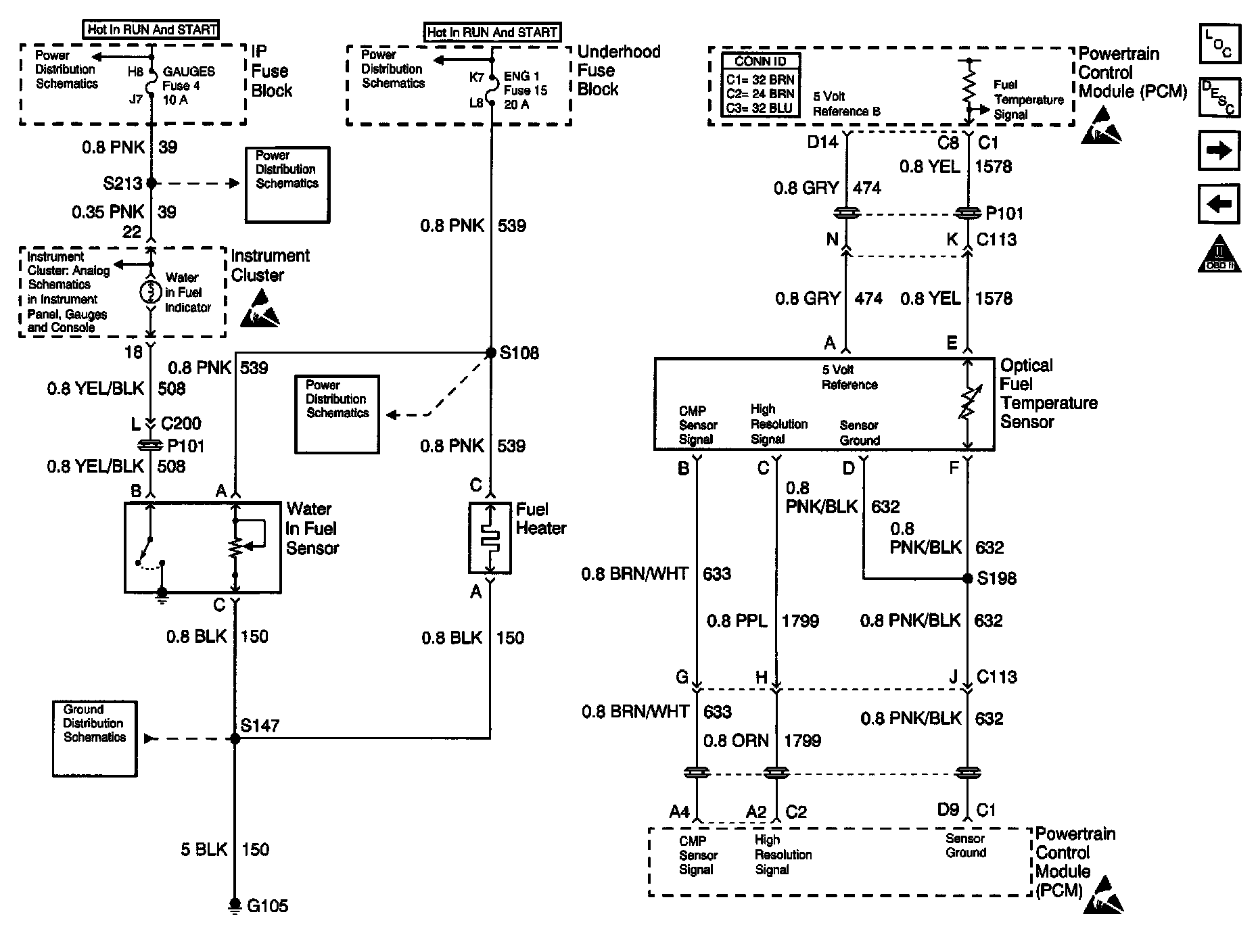

Engine Controls Schematics: Water-in Fuel Sensor, Fuel Heater, And Fuel Temperature Sensor:
