Entertainment Component Views

Entertainment Component Views

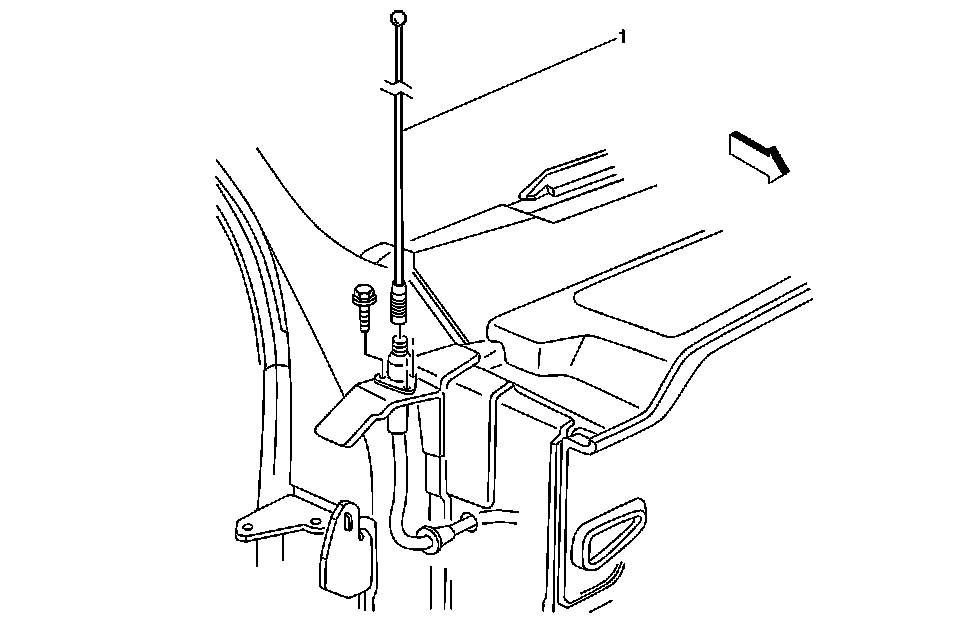

Fixed Antenna Mast




1 - Antenna

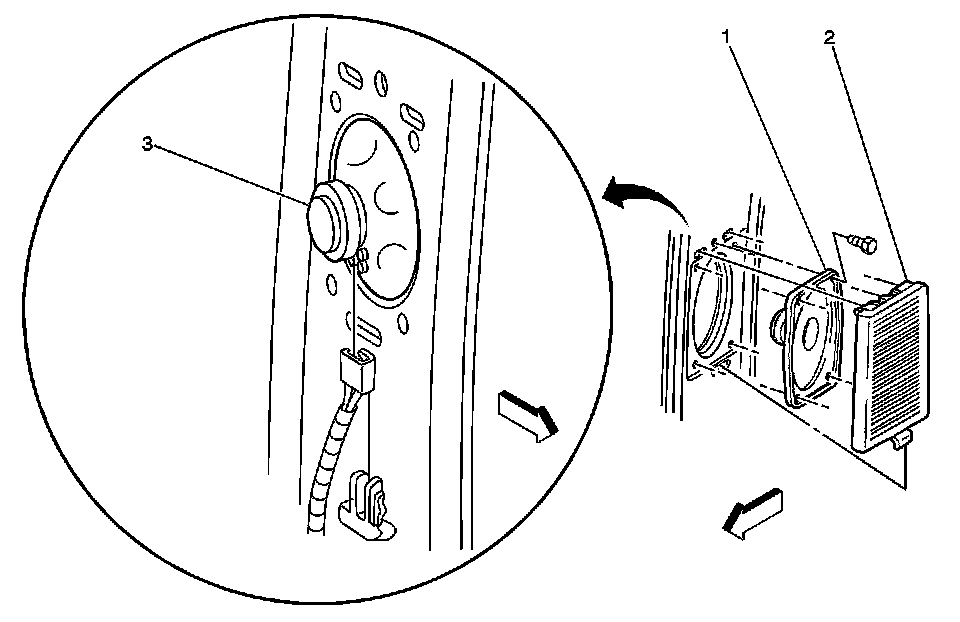

Radio Speakers, Front View




1 - Radio Speaker
2 - Speaker Grill
3 - Radio Speaker Mounted

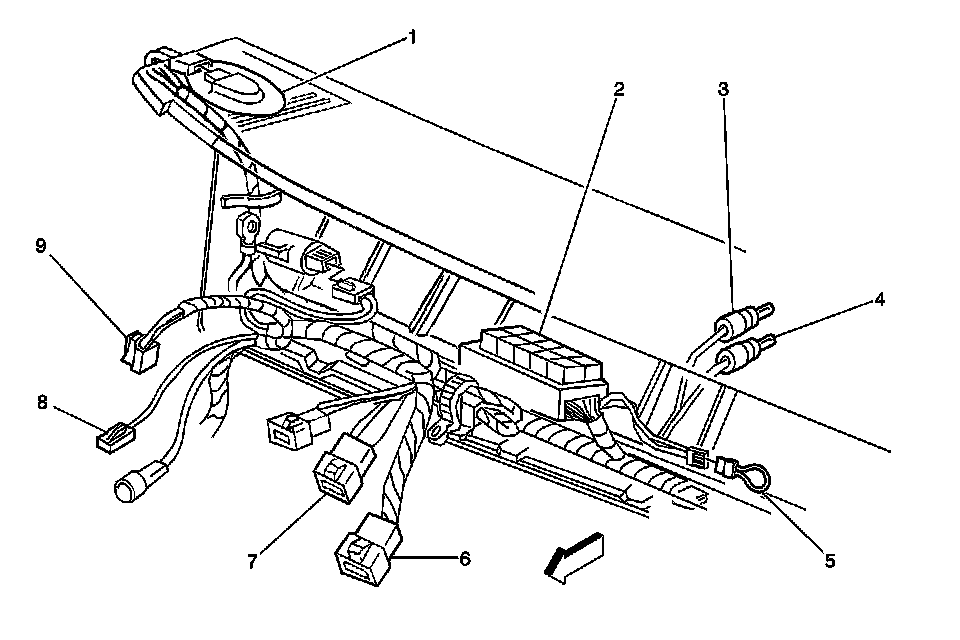

Harness to (Components), Right View




1 - Right Speaker
2 - Relay Center
3 - Service Transmission Filter Indicator Lamp
4 - Seat Belt Indicator Lamp
5 - Jumper Plug
6 - Upfitter Connector, AUX WRG
7 - Daytime Running Lamp (DRL) Diode Module
8 - Blower Motor C1 (1 cavity)
9 - Blower Motor C2 (1 cavity)
