Home
>>
Chevy Truck
>>
2000
>>
C 6500 Kodiak V8-7.4L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Data Link Connector
Data Link Connector

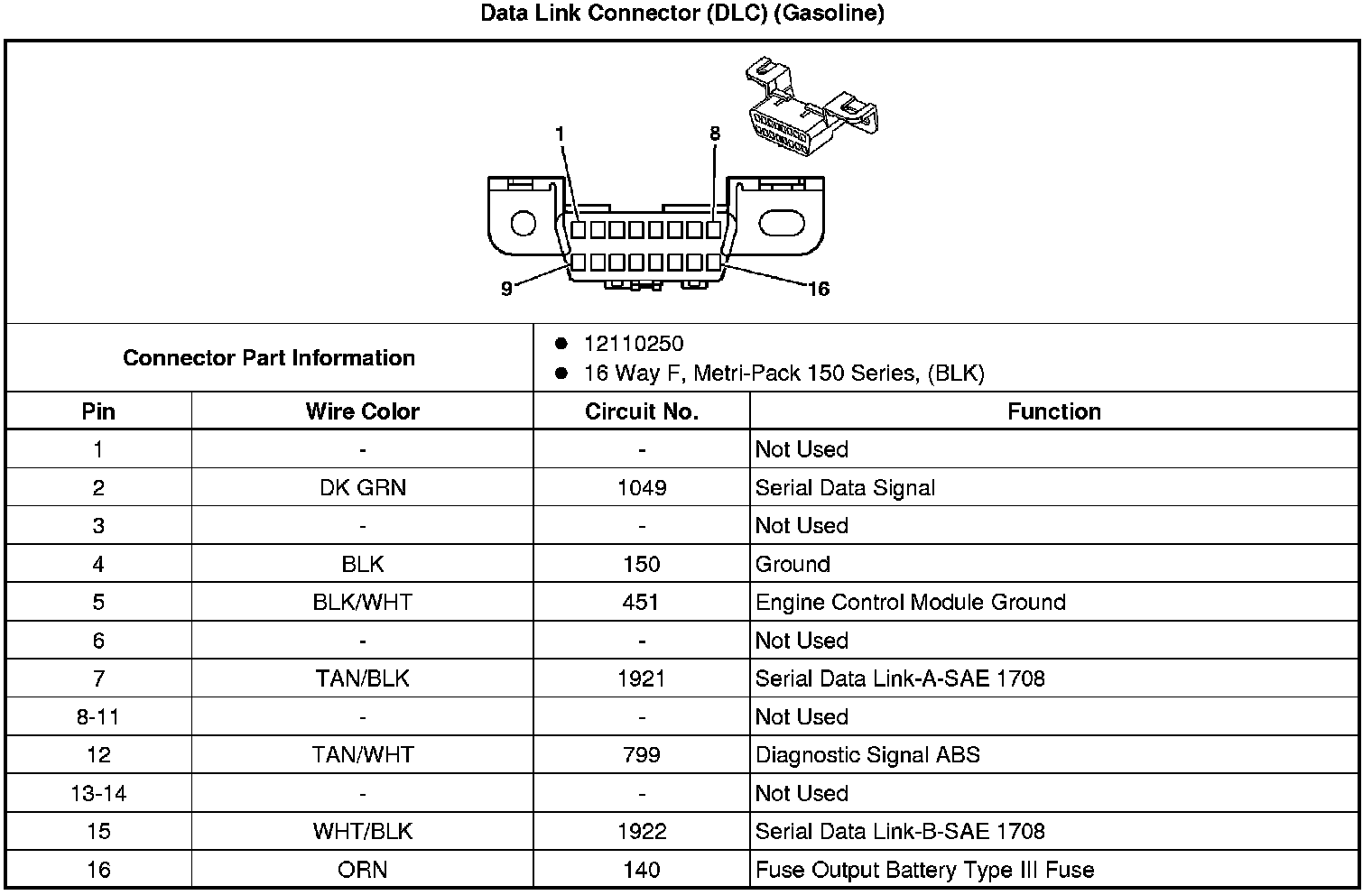

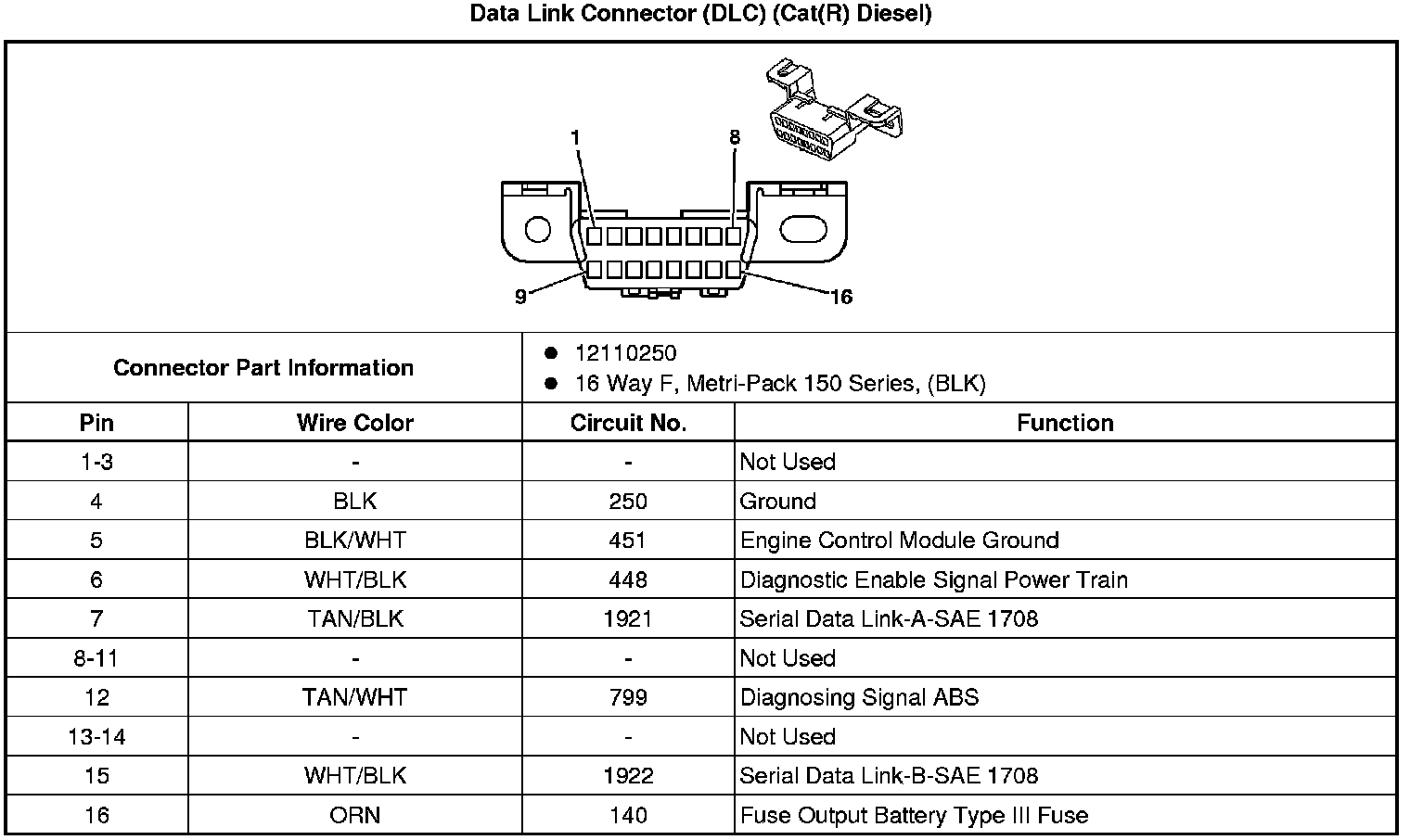

Data Link Communications Connector End Views
