Engine Exhaust Brake Schematics

Engine Exhaust Brake Schematics

Interlock Relay and TCM Interface

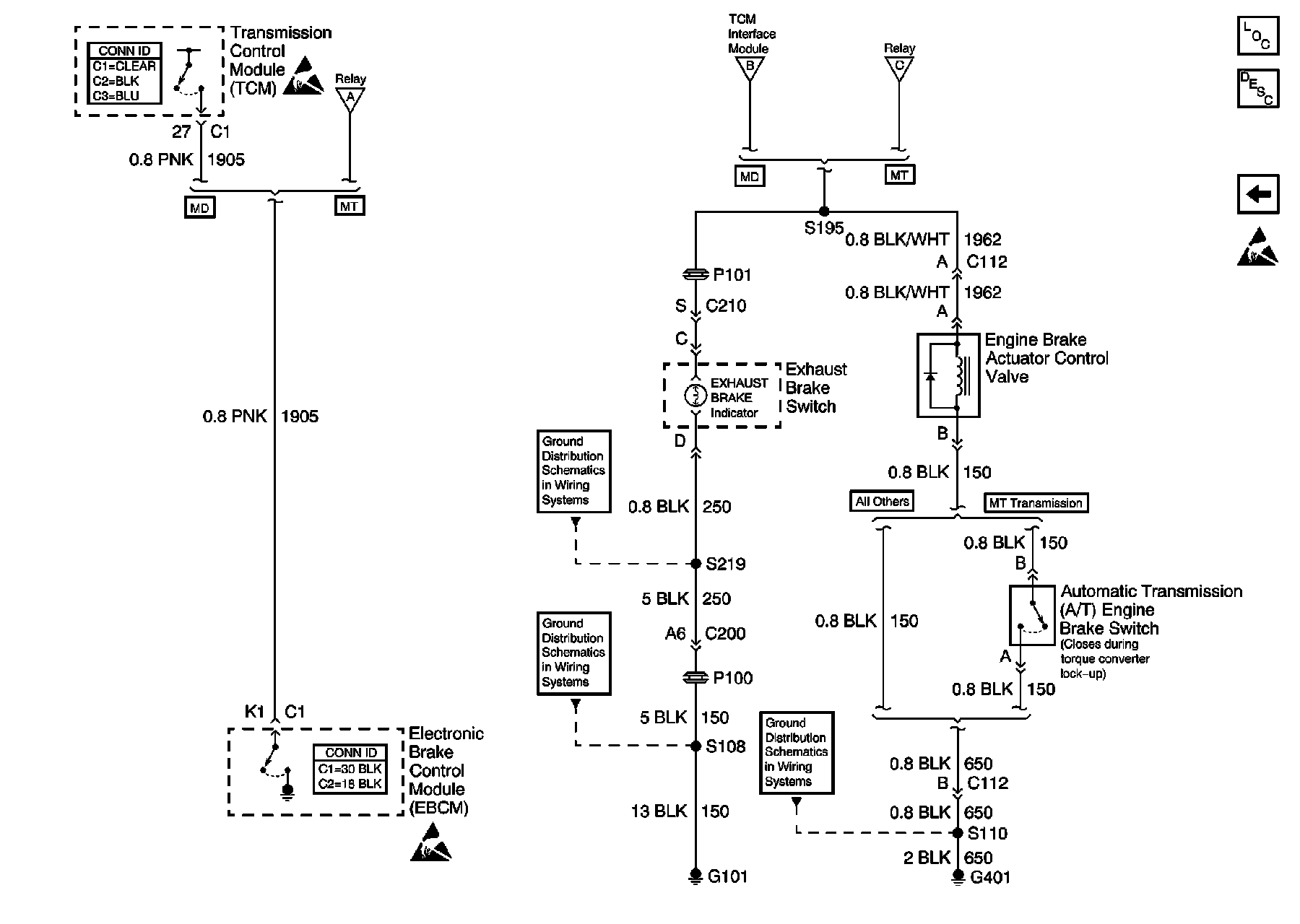

Exhaust Brake Enable, Indicator and Valve
