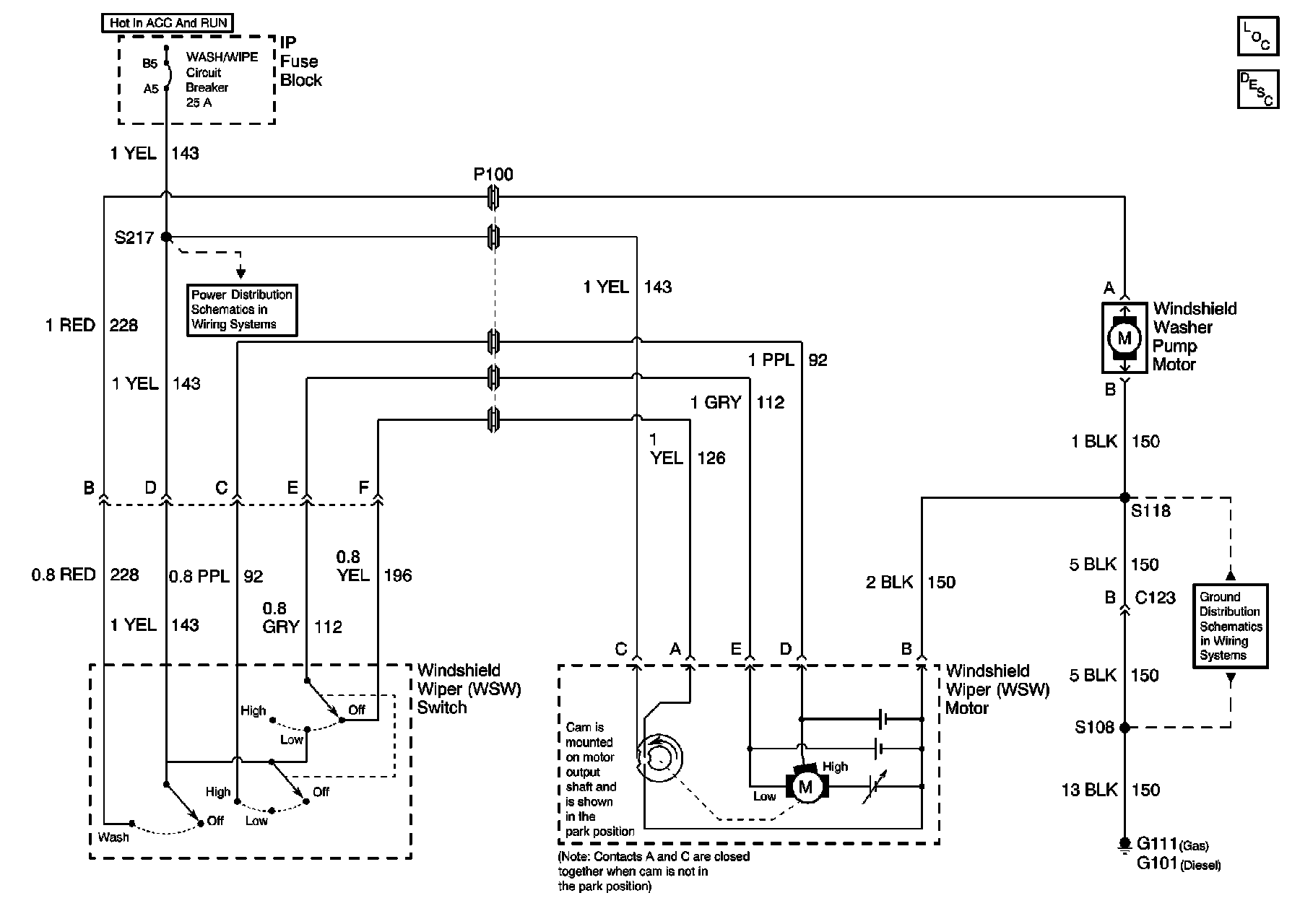

Wiper/Washer System (Standard) Schematics
Wiper/Washer System (Standard) Schematics
Wiper/Washer System (Standard) Schematics
Standard
