Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2000
>>
C 6500 Kodiak V8-7.4L VIN D
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

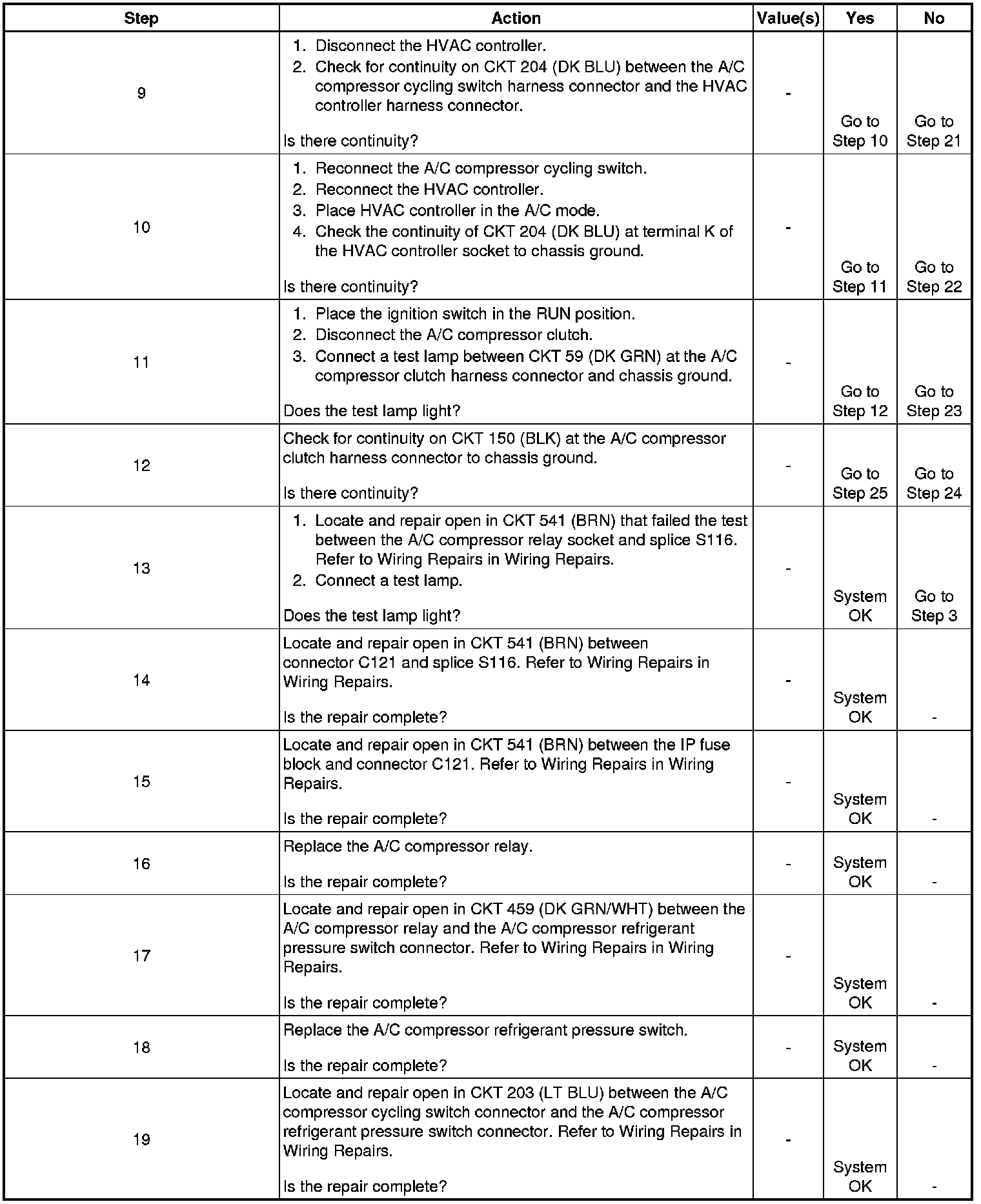

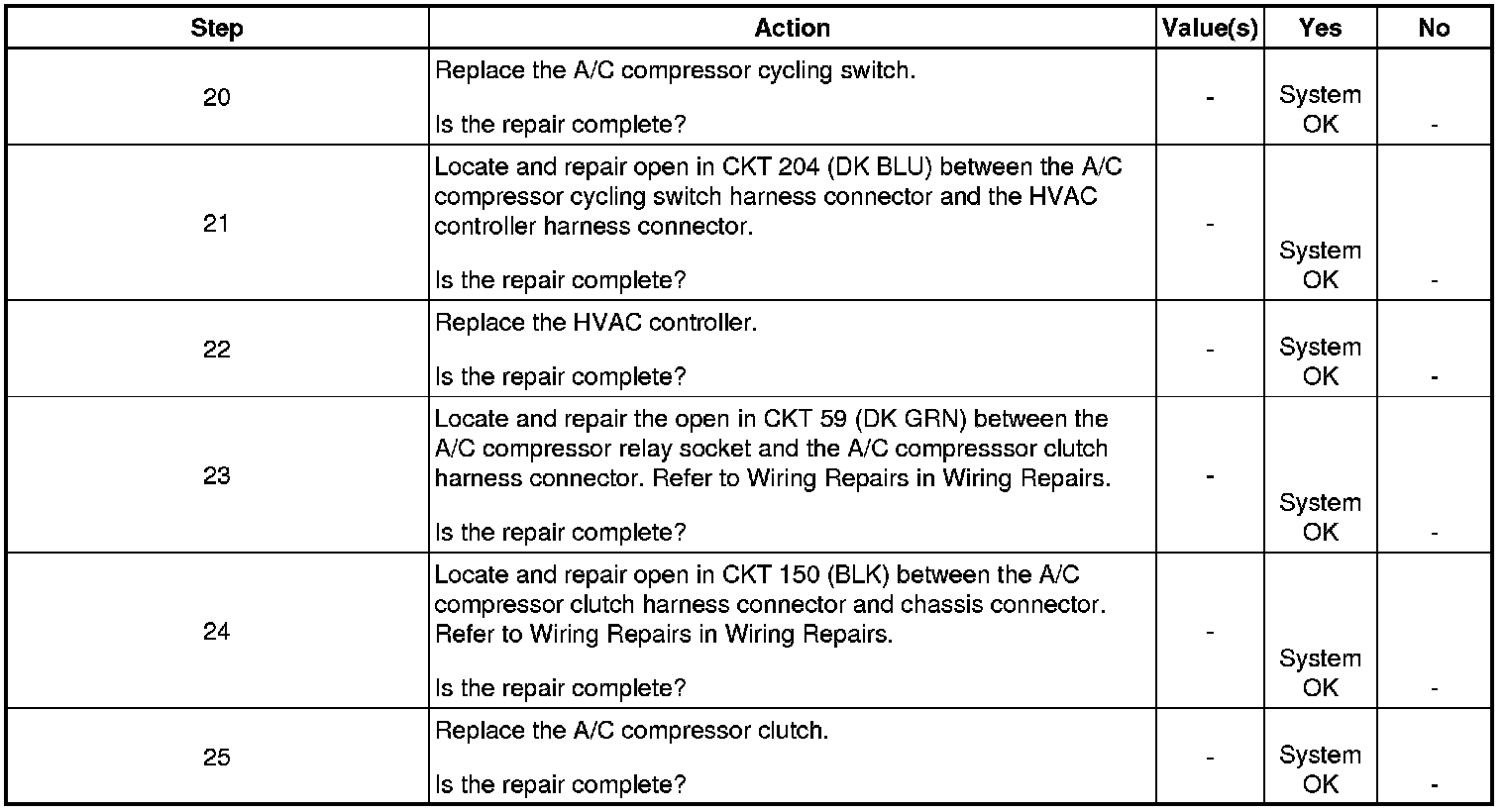

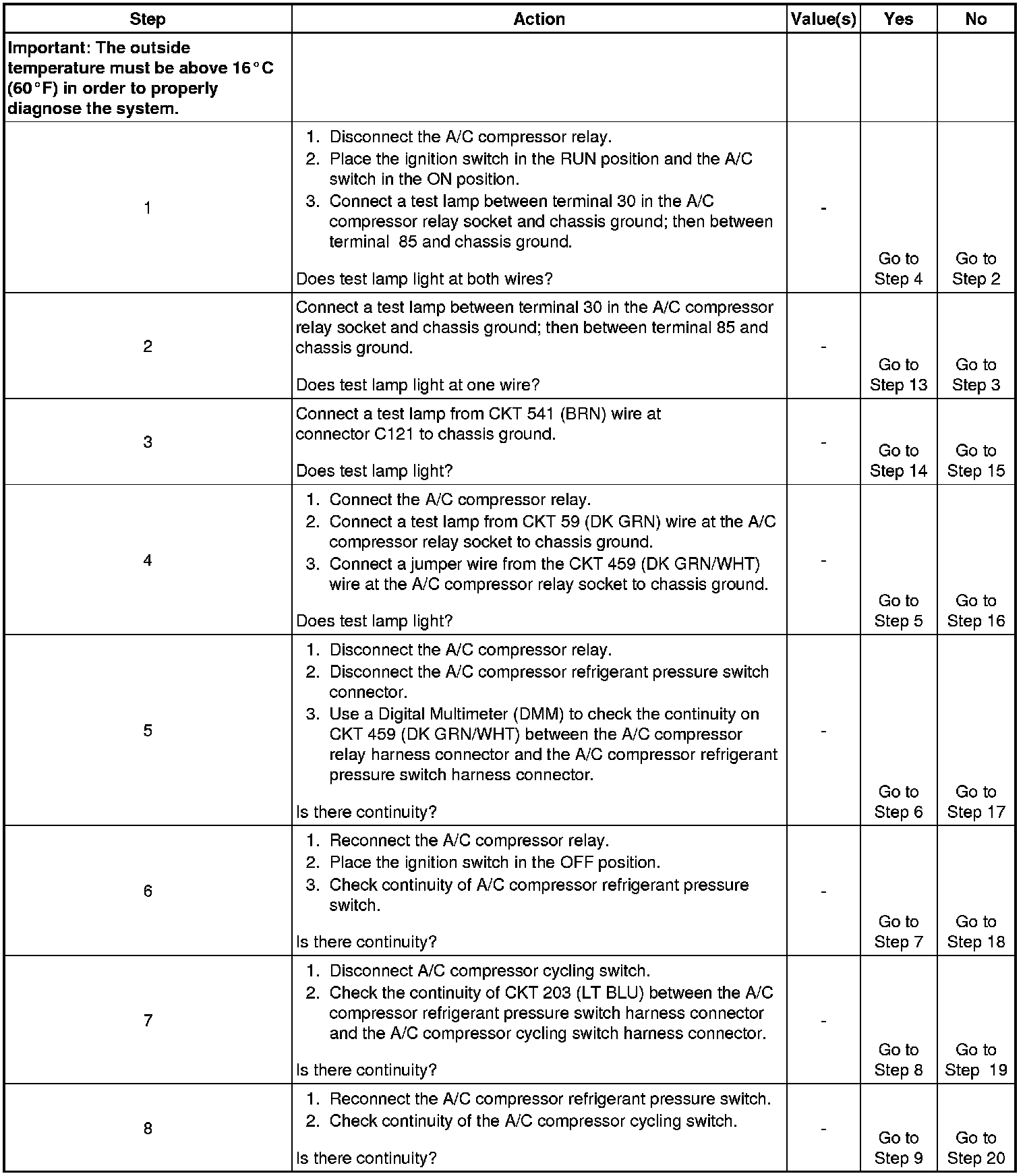

HVAC Compressor Clutch Circuit Diagnosis
HVAC Compressor Clutch Circuit Diagnosis
HVAC Compressor Clutch Circuit Diagnosis
