Instrument Cluster - Analog Schematics
Instrument Cluster: Analog Schematics

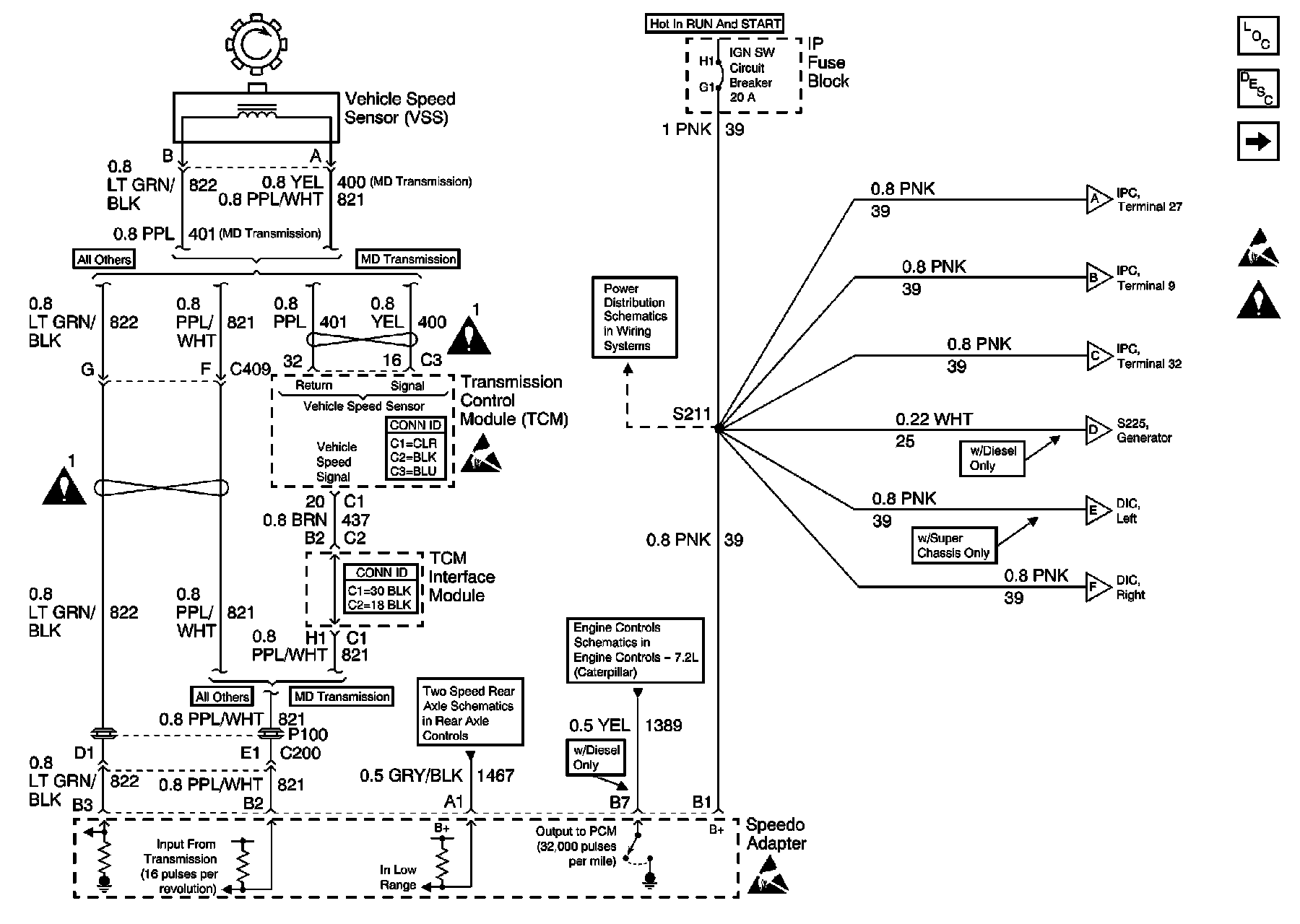

Vehicle Speed Sensor (VSS) and Speedo Adapter
IPC-CHECK GAGES Indicator (MIL), Engine Coolant Temperature (ECT) and Engine Oil Pressure (EOP) Gauges, Speedometer and Voltmeter

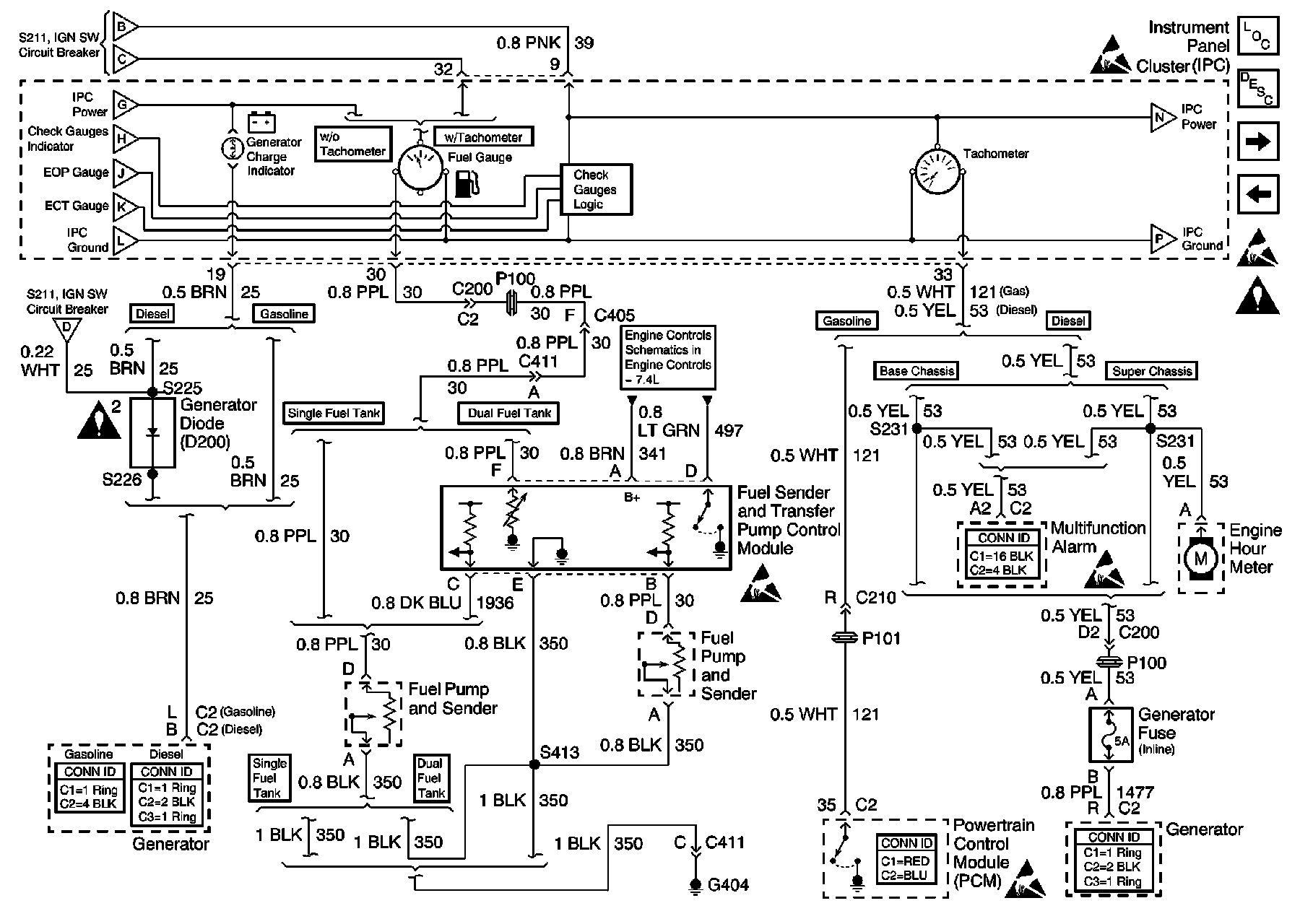

IPC-Fuel Gauge, Generator Charge Indicator and Tachometer

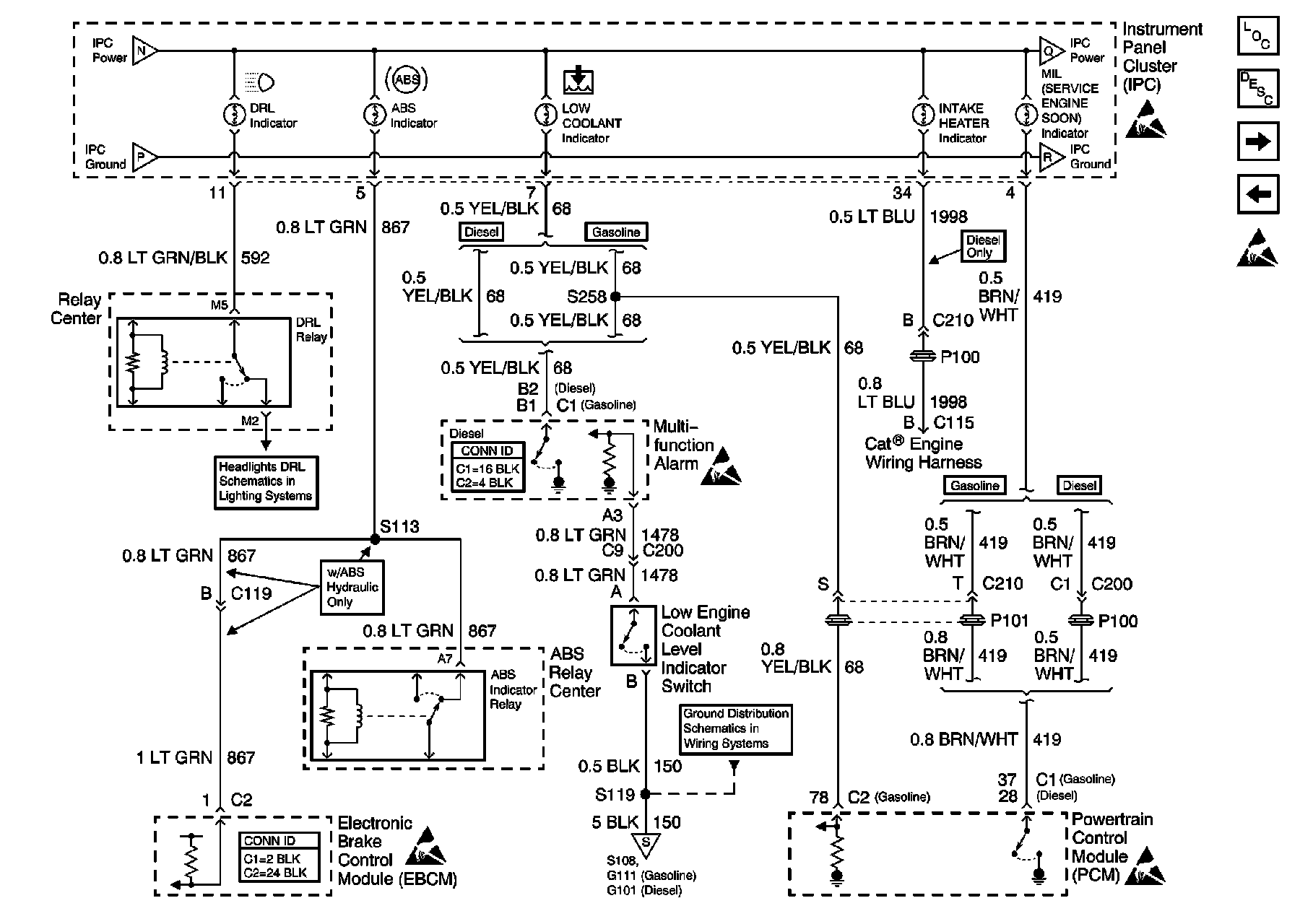

IPC-ABS, DRL, INTAKE HEATER, LOW COOLANT and SERVICE ENGINE SOON (MIL) Indicators
IPC-DIFF LOCK, LOW AIR, PARK BRAKE and PRIMARY BRAKE Indicators
IPC-APPLY BRAKE, AUX BRAKE, High Beam, Left Turn, Right Turn and SERVICE PARK BRAKE Indicators and Illumination
ATF Temperature Gauge and Left/Right Driver Information Centers-CHANGE OIL, DO NOT SHIFT, ENGINE OVER-SPEED, Fasten Seat Belt, REDUCED ENGINE POWER, and SERVICE TRANS FILTER Indicators
