Exterior Lights Schematics
Exterior Lights Schematics

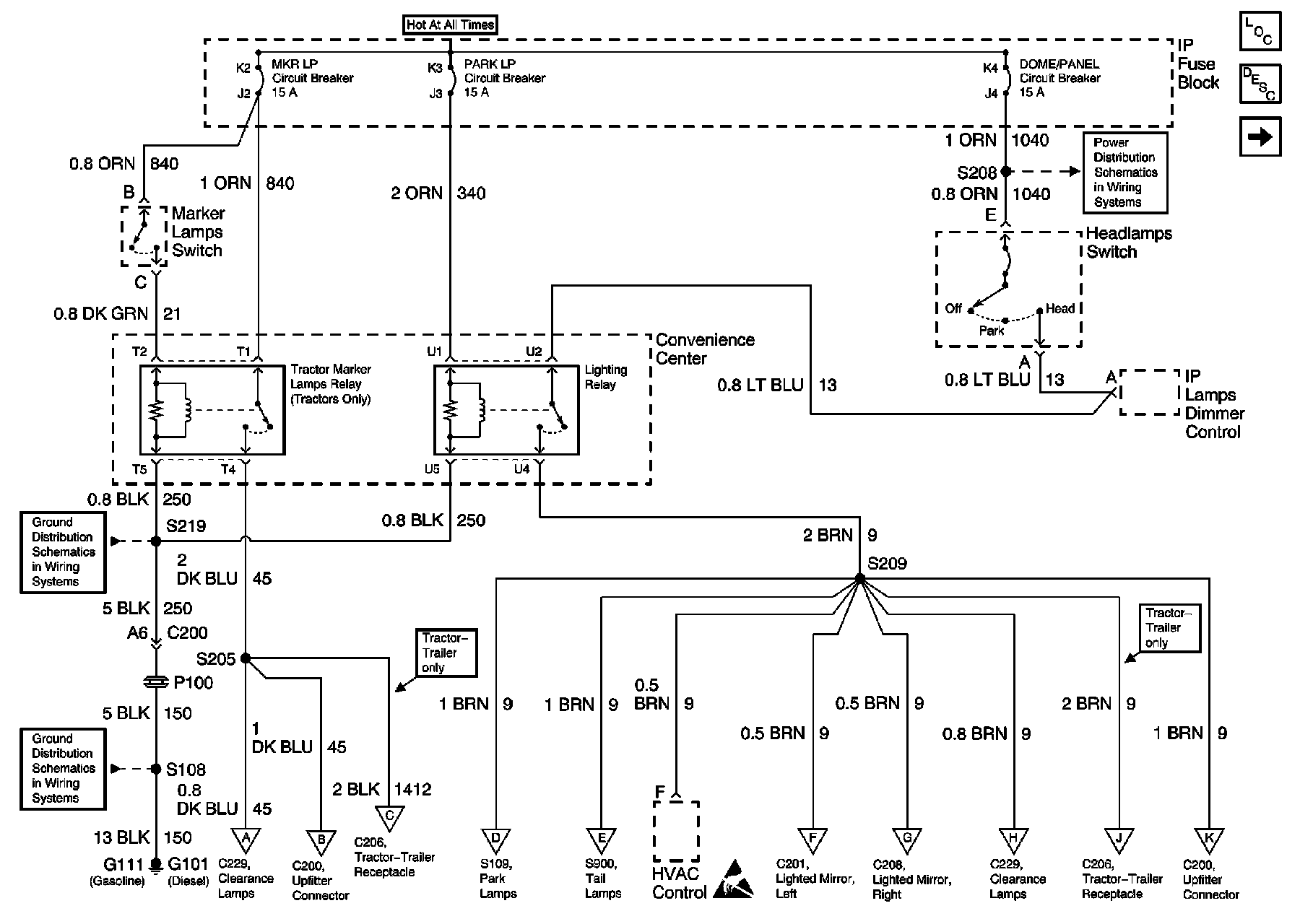

Circuit Power, Relays
Stoplamp Relays, Trailer Stop Relay (Diesel)
Stoplamp Relays, Trailer Stop Relay (Gasoline)
Turn Signal Switch, Hazard Warning Switch

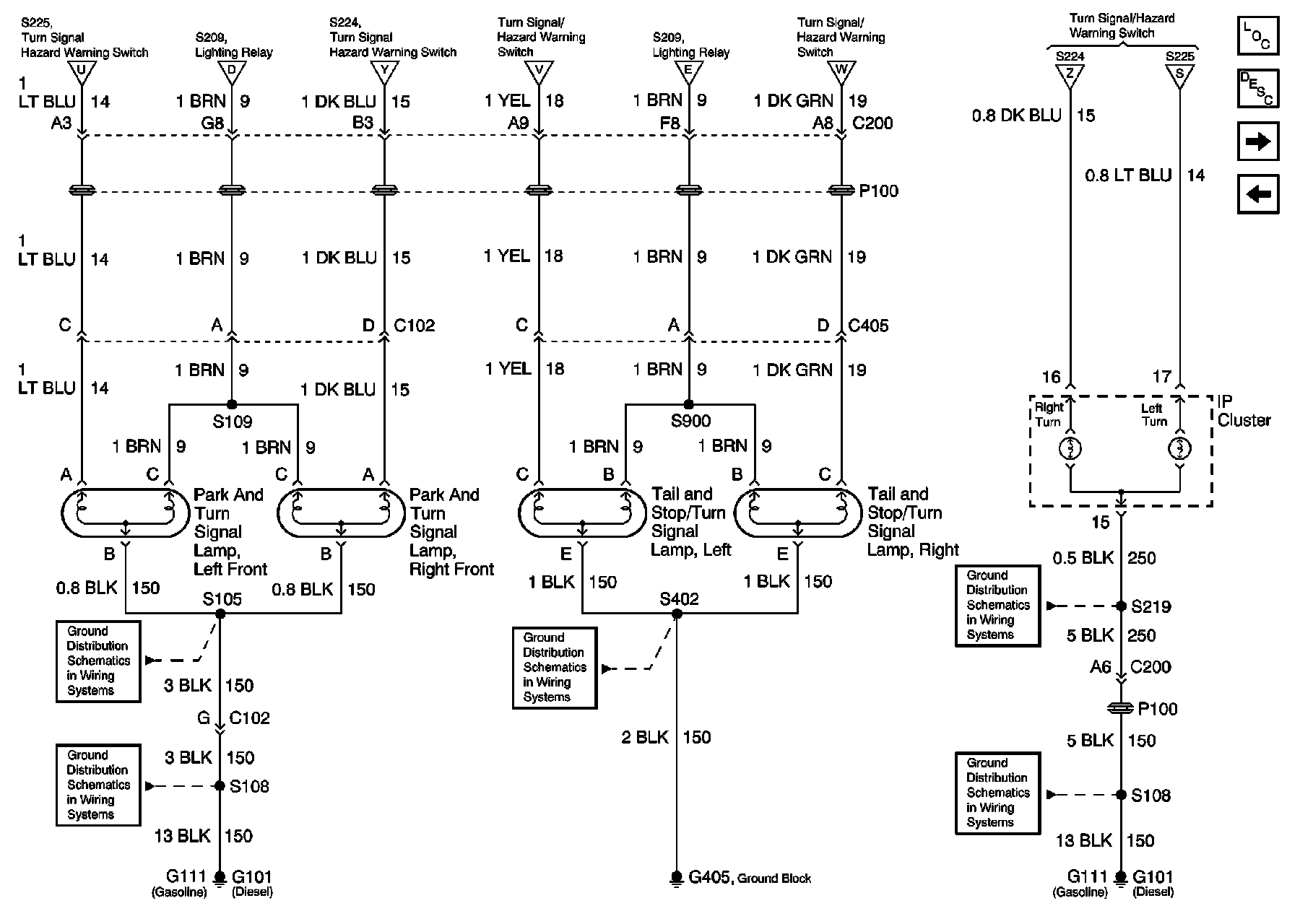

Park and Turn Signal Lamps, Tail and Stop/Turn Signal Lamps, IP Indicators

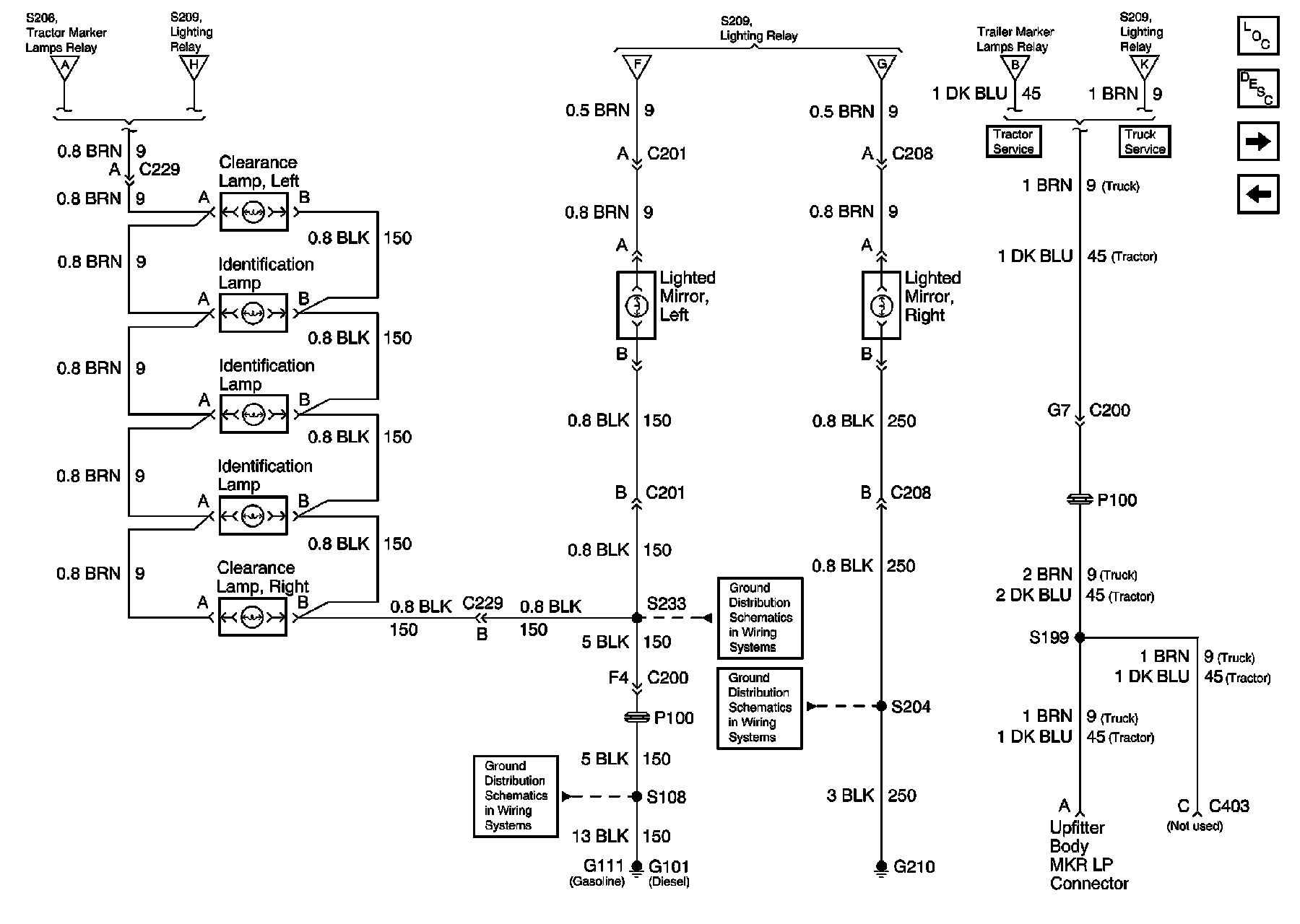

Clearance and ID Lamps, Lighted Mirrors, Upfitter Provisions

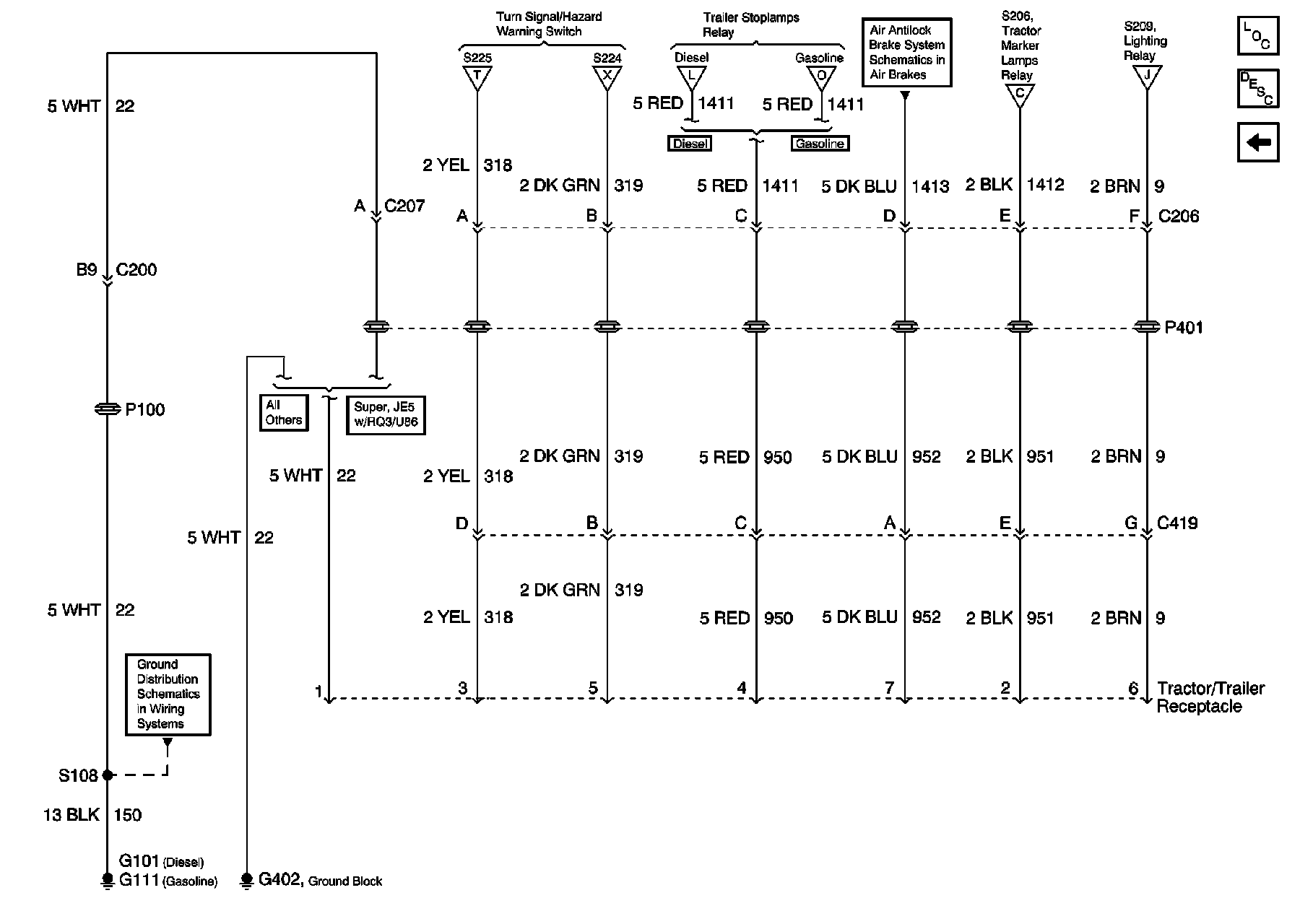

Trailer Lighting
