Starting and Charging Schematics (LG5 Engine)




Starting and Charging Schematics (LG5 Engine)

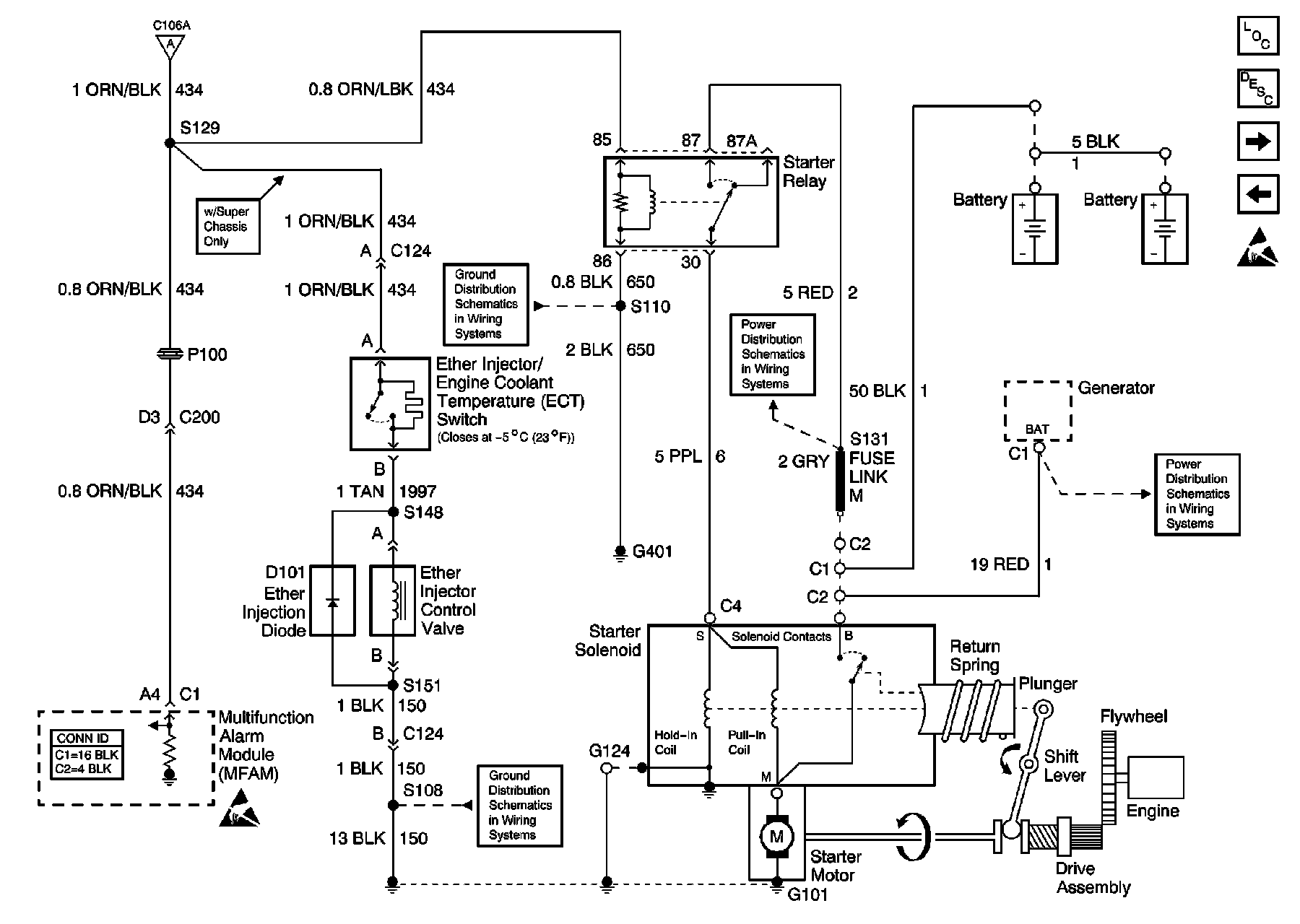

Starting Circuit 1 of 2

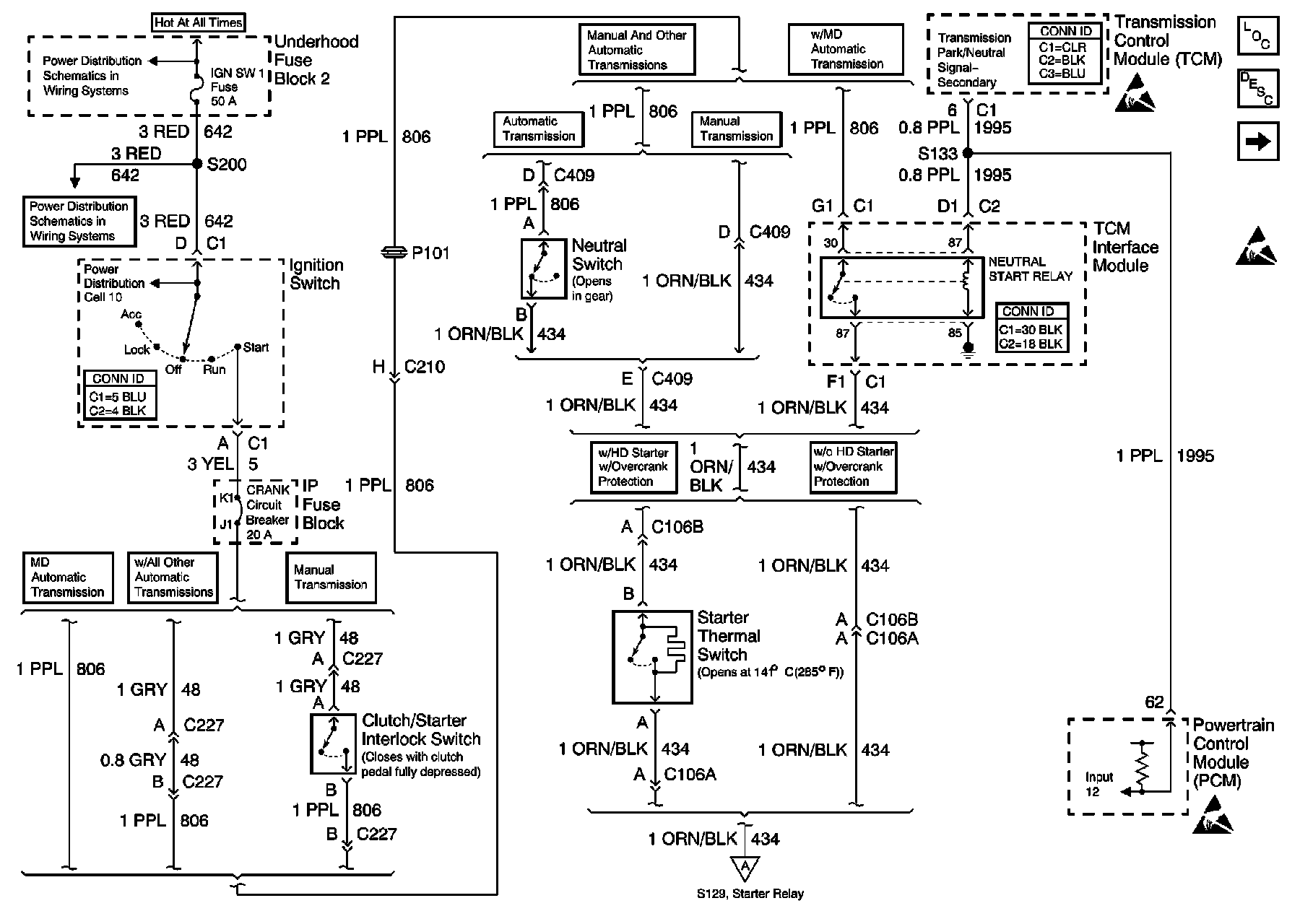

Starting Circuit 2 of 2

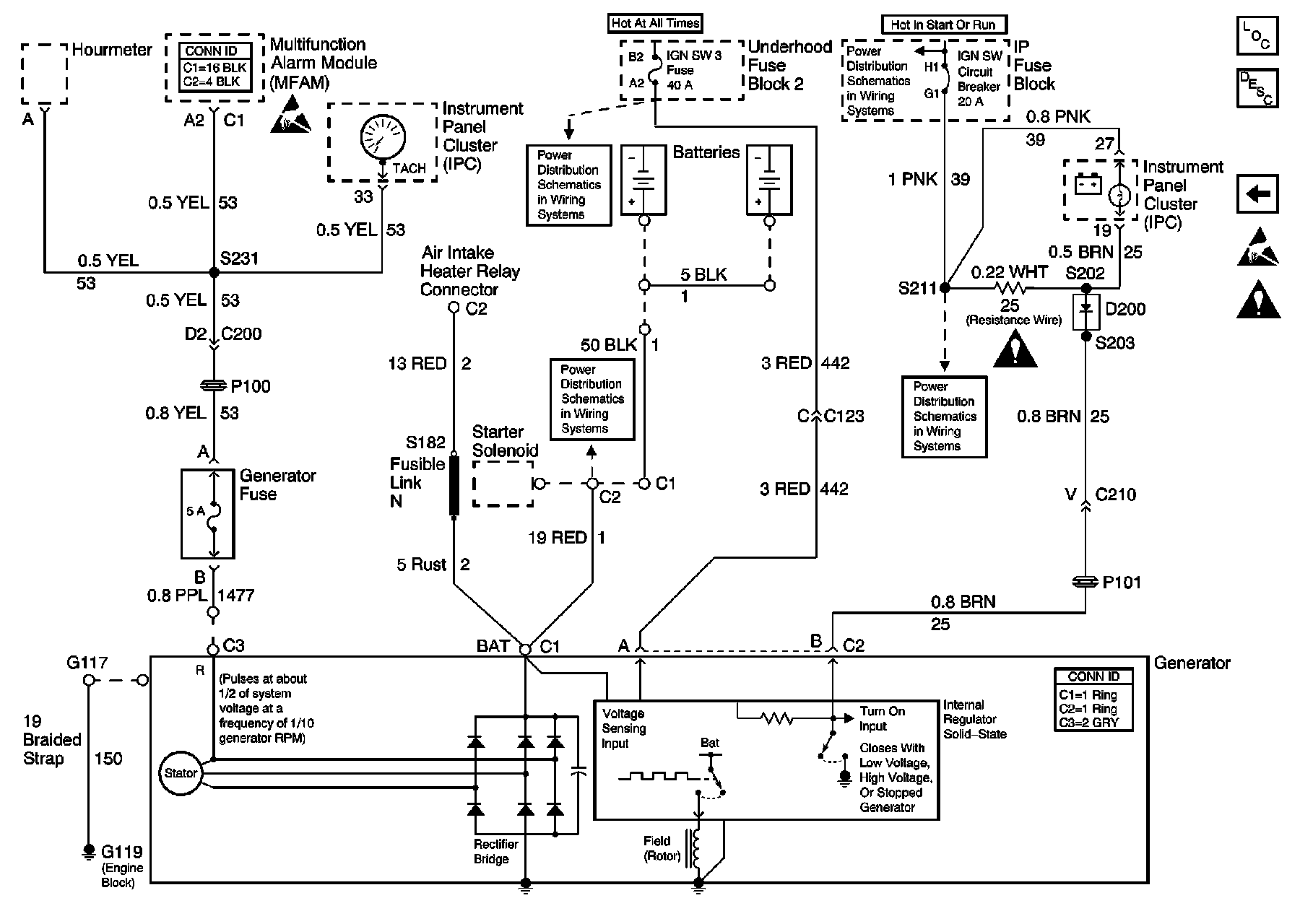

Charging Circuit
