Starting and Charging Schematics (LP4/L21 Engines)
Starting and Charging Schematics (LP4/L21 Engines)
Starting and Charging
Schematics (LP4/L21 Engines)

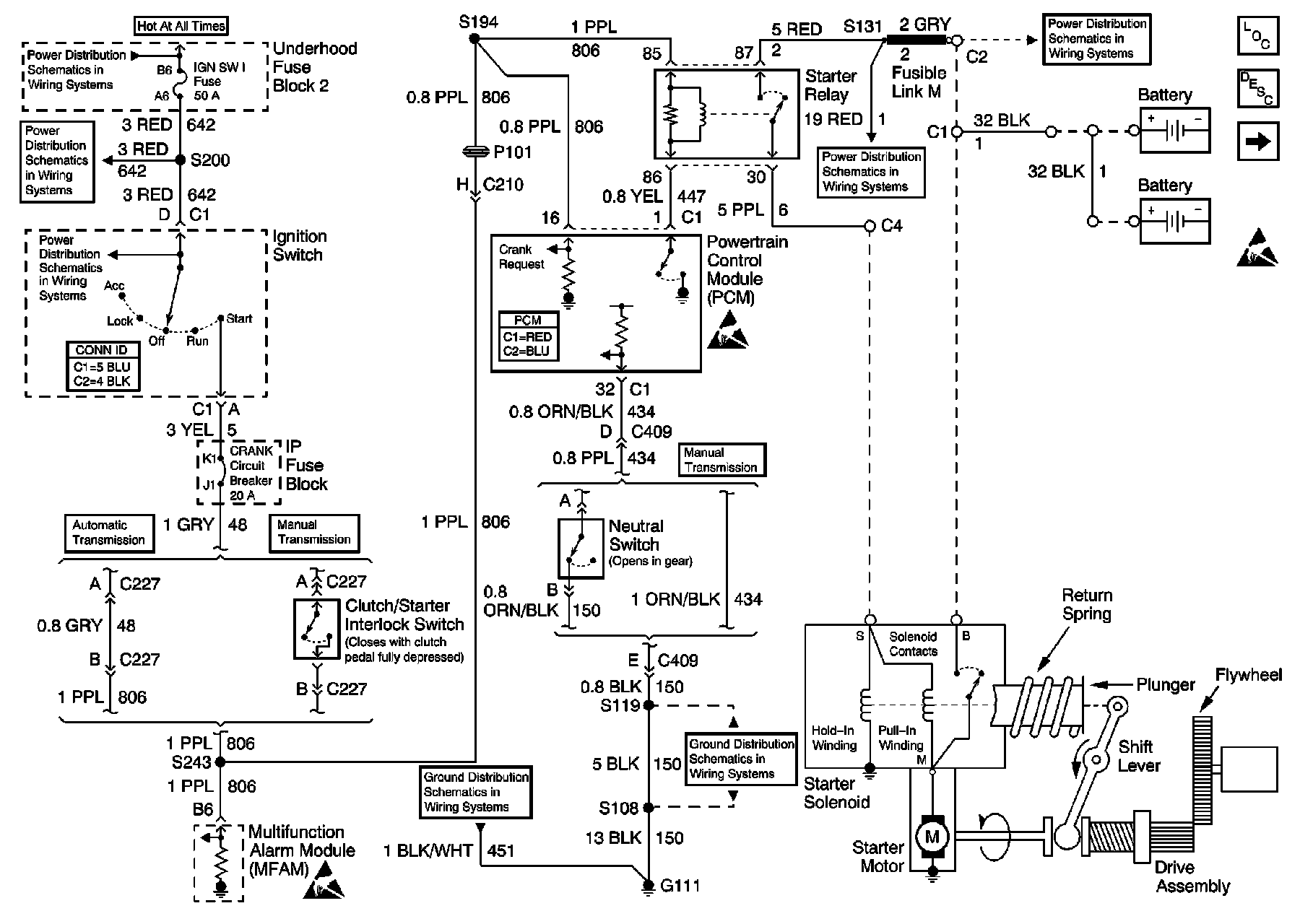

Starting Circuit

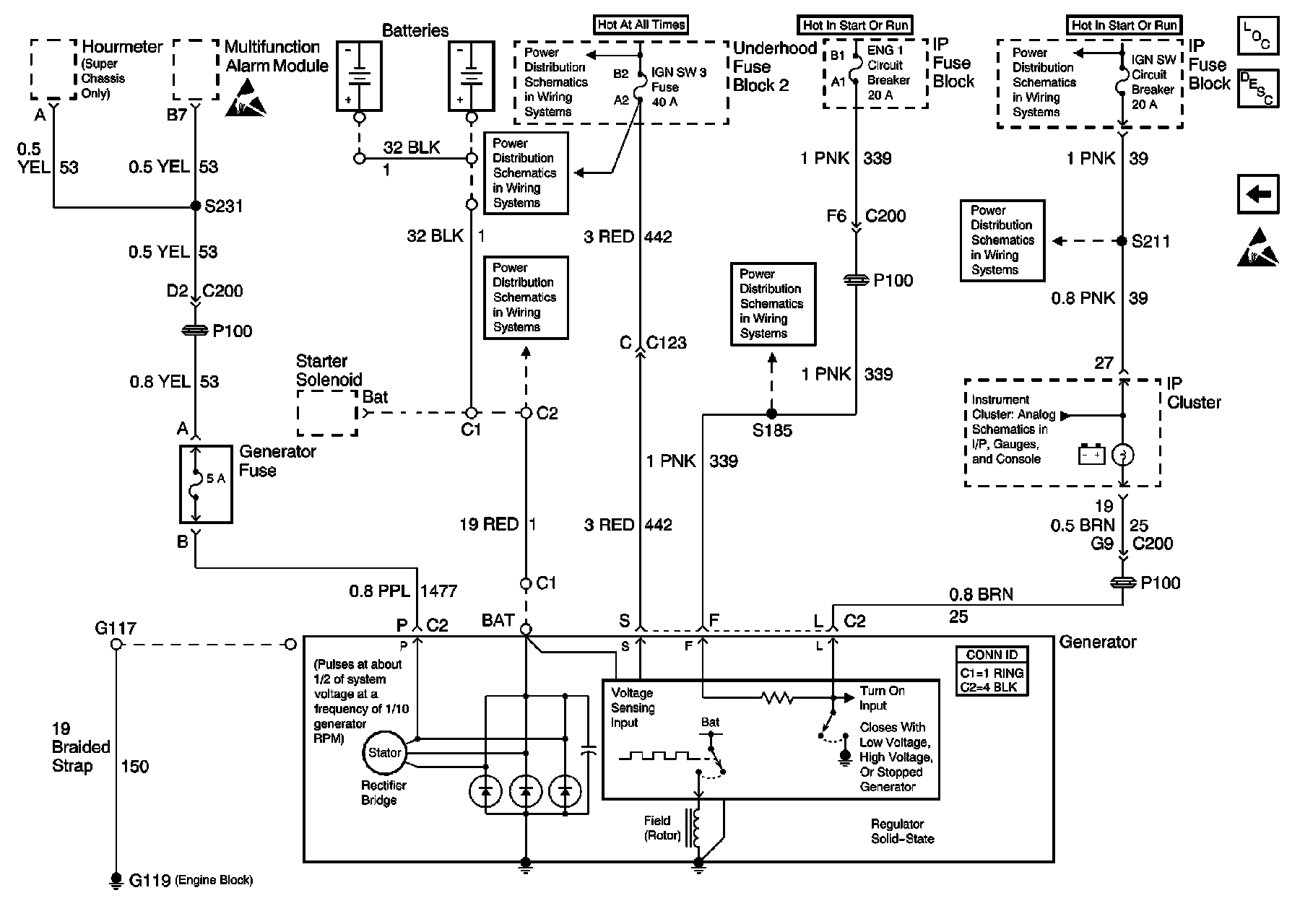

Charging Circuit
