Ether Injection Valve and Bracket Replacement

Ether Injection Valve and Bracket Replacement

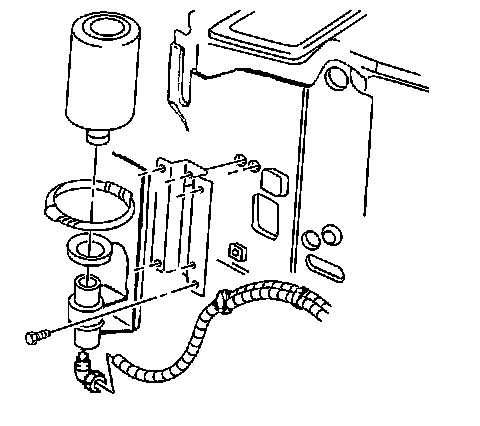

Removal Procedure

1. Remove the ether capsule. Refer to Ether Capsule Replacement Ether Capsule Replacement.
2. Remove the ether injector tube from the ether injector tube connector.
3. Remove the ether injector tube connector from the ether injector control valve assembly.




4. Remove the ether injector control valve and bracket mounting bolts.
5. Remove the ether injector control valve assembly from the cowl.

Installation Procedure




1. Install the ether injector control valve and bracket assembly to the cowl.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the ether injector control valve and bracket mounting bolts.

Tighten the ether injector control valve and bracket mounting bolts to 25 Nm (18 lb ft).

3. Install the ether injector connector to the ether injector control valve assembly.

Tighten the ether injector connector to valve assembly to 3.0 Nm (27 lb in).

4. Install the ether injector tube to the ether injector tube connector.

Tighten the ether injector tube connector nut to 4 Nm (35 lb in).

Important: Do not over tighten the ether capsule.


5. Install the ether capsule.
