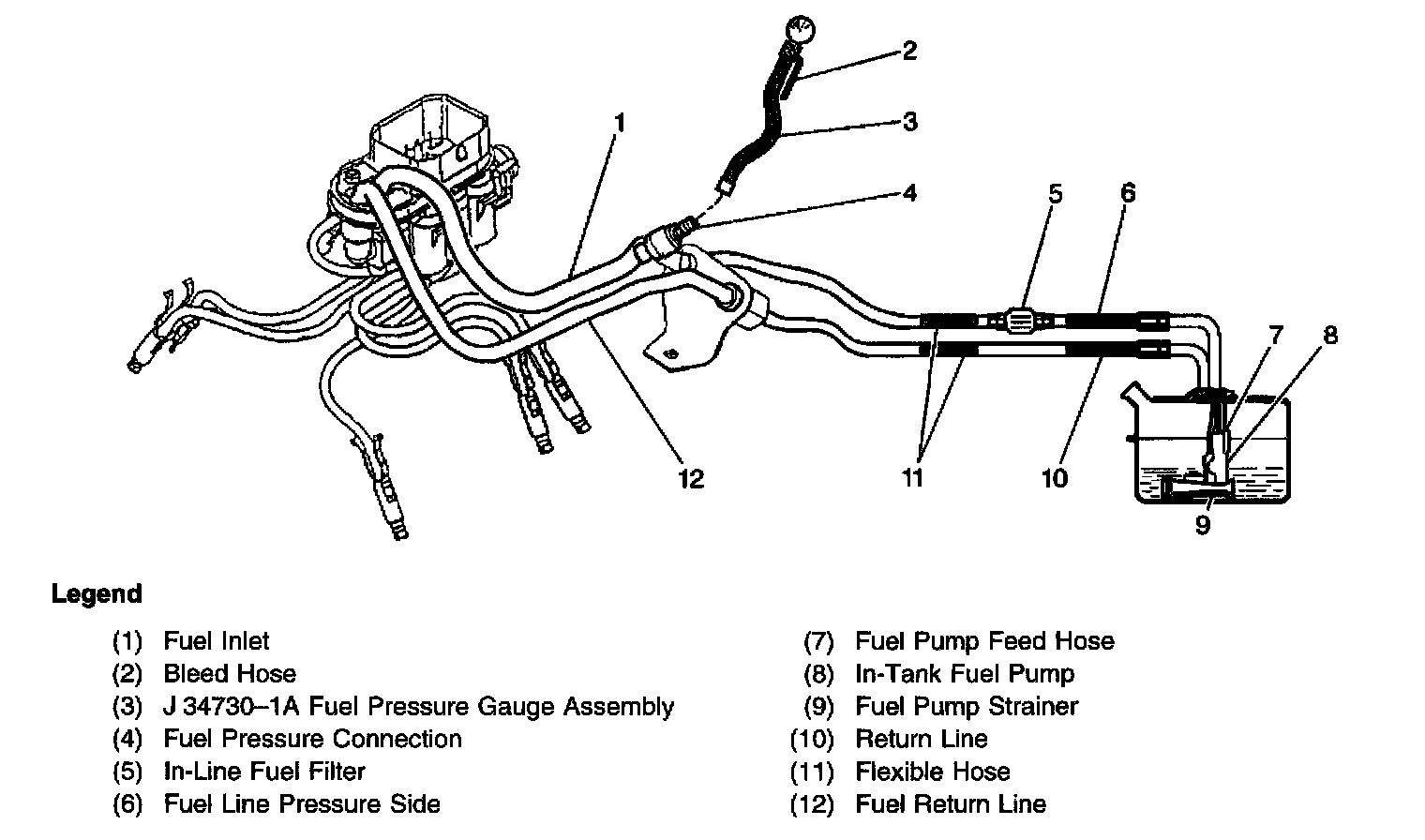

Central SFI Fuel System With Fuel Pressure Gauge

Central SFI Fuel Pressure Gauge:

The fuel supply system consists of the following components:
^ The fuel tanks (fuel balance control system when equipped with dual tanks.
^ The fuel sender assembly (fuel sender, fuel pump and fuel pump strainer).
^ The fuel filter
^ The fuel feed and return pipes
^ The fuel pump electrical circuit
^ The accelerator control components
