Remote CD Player Replacement

REMOVAL PROCEDURE
1. Remove the filler panel from the instrument panel.
2. Remove the trim plate bezel from the instrument.

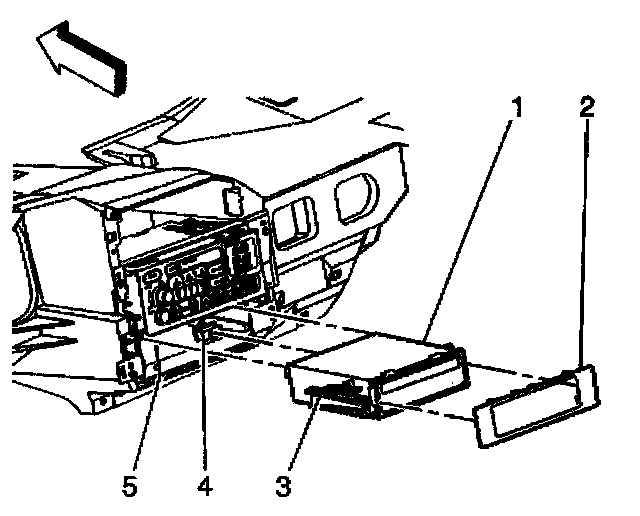

3. Press down on the retaining tabs in order to unlock the CD player (1) from the mounting bracket.
4. Slide the CD player from the mounting bracket (5).
5. Disconnect the electrical connector from the CD player.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the CD player (1).
2. Slide the CD player into the mounting bracket (5).
3. Press the CD player inward in order to engage the retaining tabs (3).
4. Install the trim plate bezel.
5. Install the filler panel to the instrument panel.
