Cruise Control - Inoperative

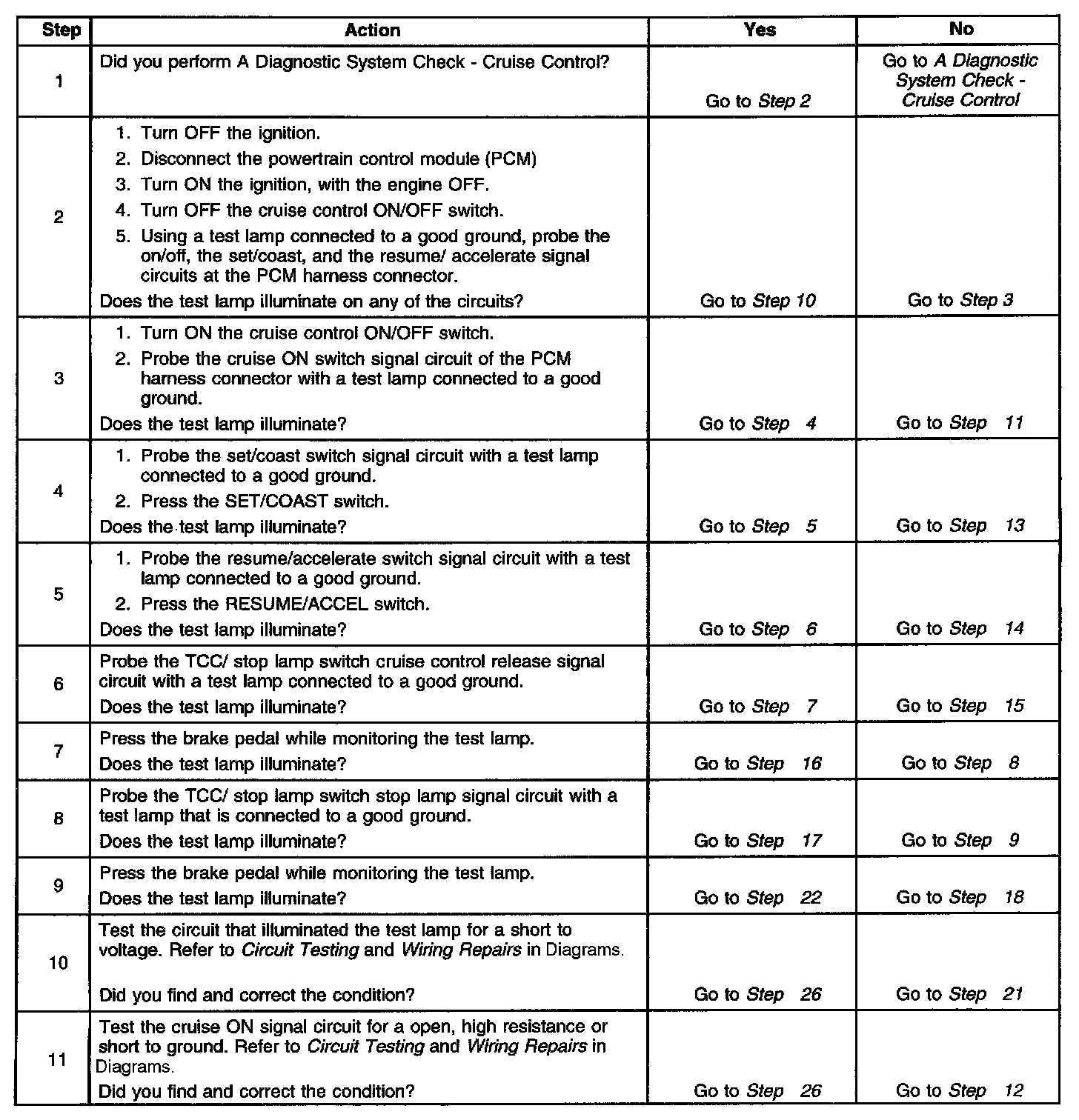

Diagnostic Chart (Part 1 Of 2):

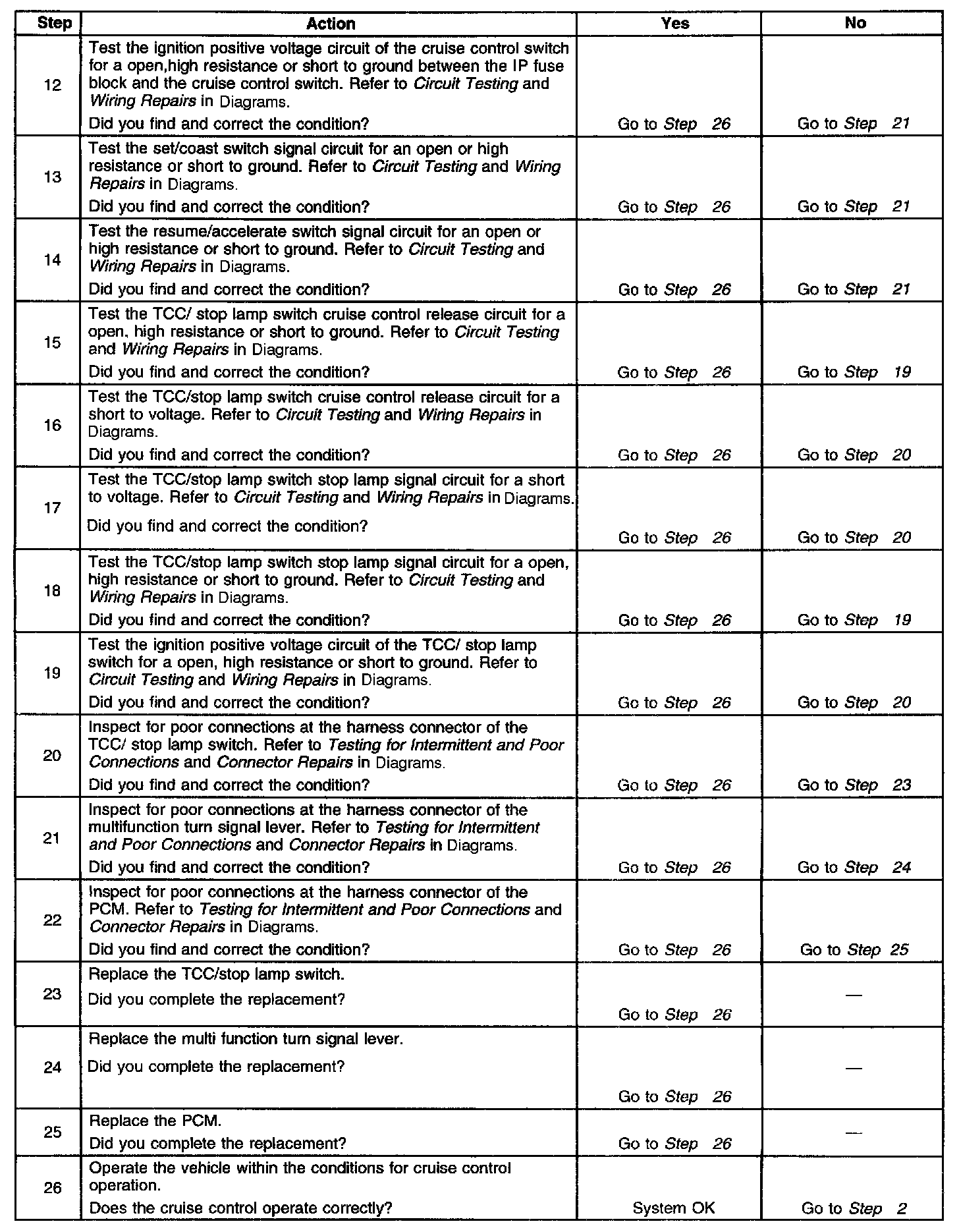

Diagnostic Chart (Part 2 Of 2):

DIAGNOSTIC AIDS

IMPORTANT: Perform the following in order to avoid misdiagnosis.
^ Inspect for proper operation of brake lamps and brake switch.
^ Inspect the speedometer for proper operation.

CONDITIONS FOR ENABLING CRUISE CONTROL
The vehicle speed is greater than 40 km/h (25 mph).
