Electrical Center Identification Views - Domestic
>>

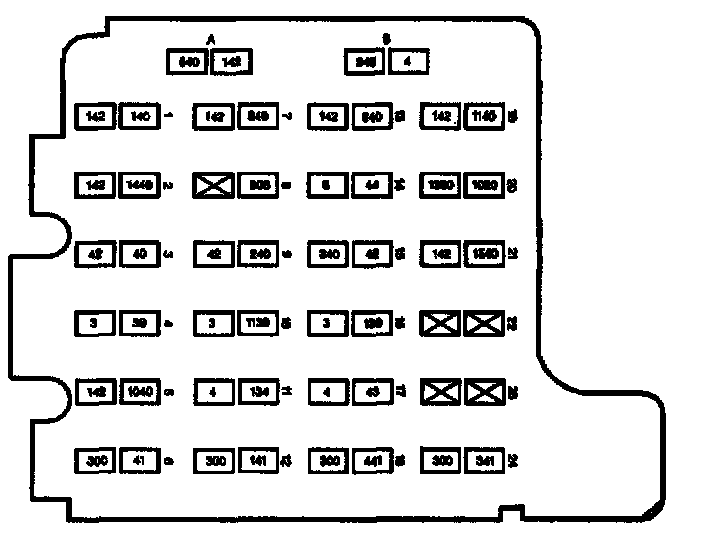

IP Fuse Block, Rear View
IP Fuse Block, Rear View
IP Fuse Block, Rear View:
