Power Door Lock Actuator
>>
DR Lock Actuator M, Left Front, Right Front and Rear CONN
DR Lock Actuator M, Left Front, Right Front and Rear CONN

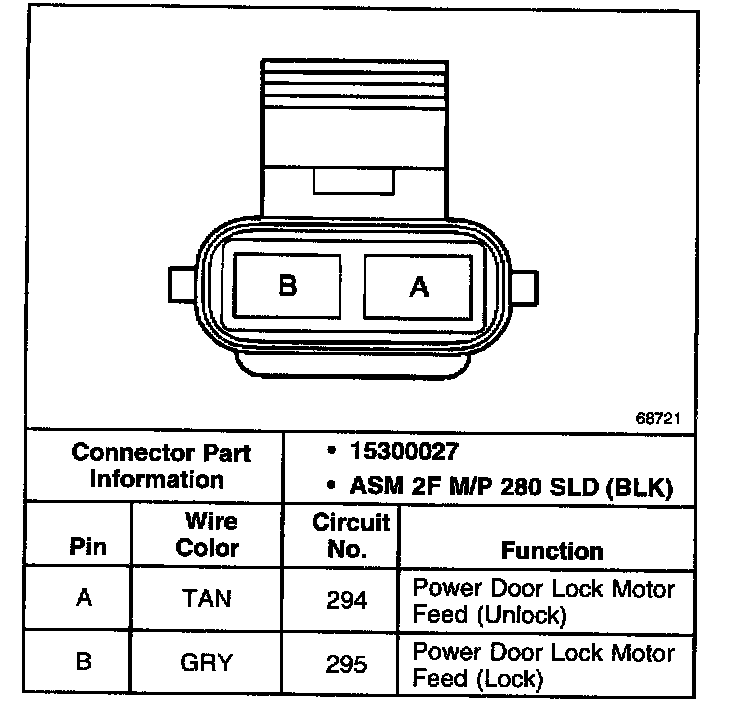

Door Lock Actuator Motor, Left Front, Right Front and Rear Connector:
