13. Crankshaft Balancer Removal

^ Tools Required
- J 39046 Crankshaft Remover

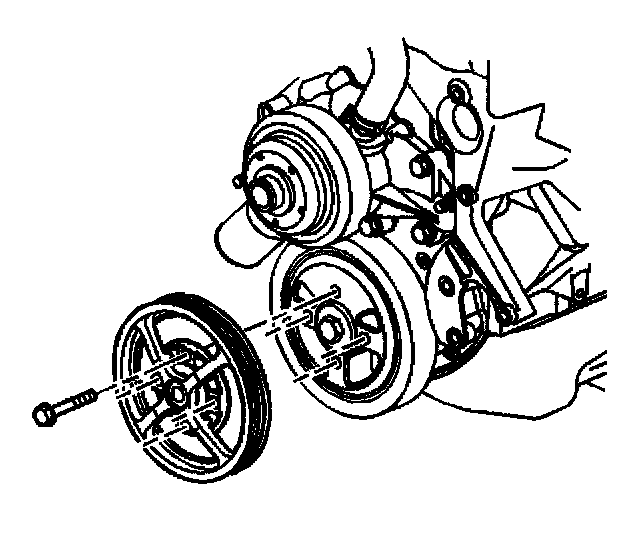

1. Remove the crankshaft pulley retaining bolts.
2. Remove the crankshaft pulley.

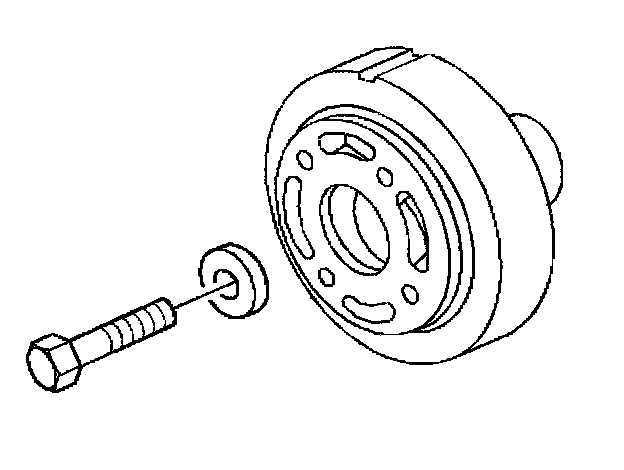

3. Remove the crankshaft balancer retaining bolt and washer.

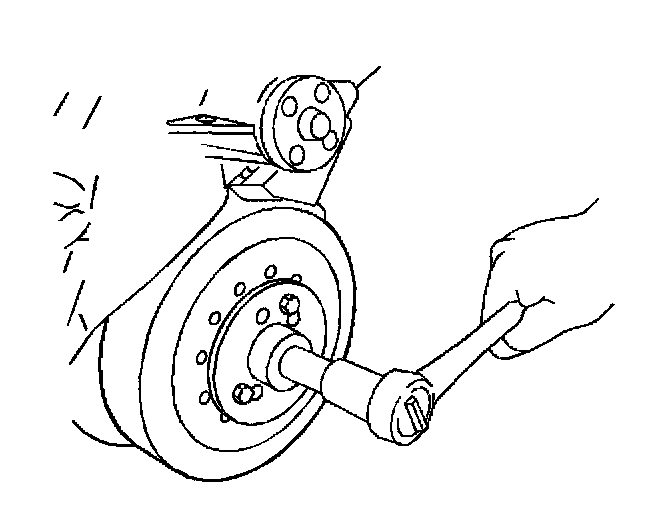

4. Using the J 39046 remove the crankshaft balancer.
