19. Cylinder Head Removal

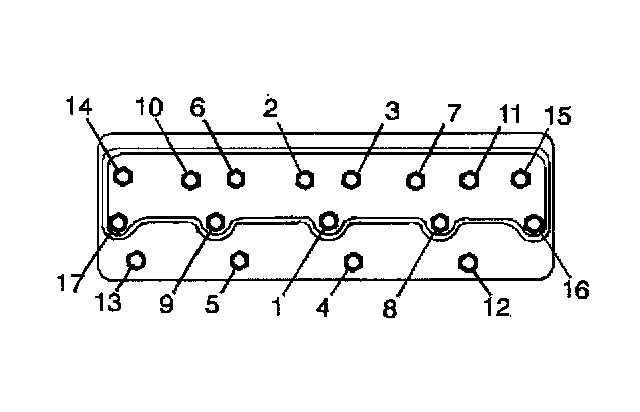

1. Remove the cylinder head retaining bolts (1-17).

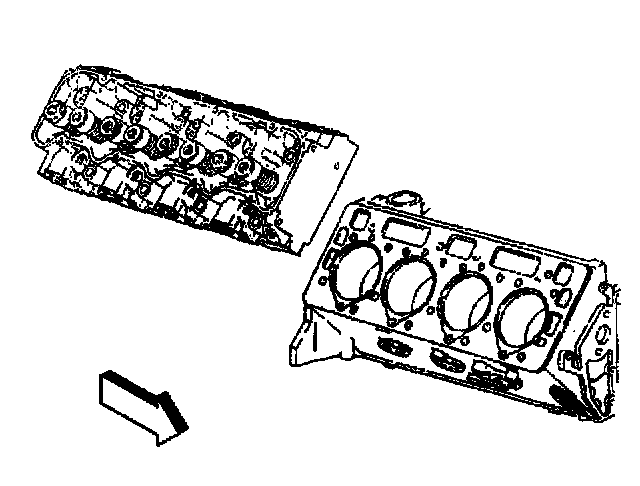

2. Remove the cylinder heads.
3. Remove the gaskets.
